Model 2150 10-Mbps Multi-Rate Ethernet Extender

Lifecycle Change Notice (PDF). This product is in sunset and not recommended for new installations. For new-generation alternatives, please see Patton's CopperLink™ 1214 Ultra-High-Speed Ethernet Extender.

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
  • Long-reach High Speed Ethernet Extension—Overcome the 328 ft (100 m) limitation of Ethernet with a full-duplex 10 Mbps link at distances up to 5,000 ft (1.5 km).
  • Seamlessly Connect and Extend the LAN—802.3 10/100Base-T LAN connection via built-in shielded RJ-45 port.
  • Patton CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-45 port.
  • Dual Auto-sensing Full-Duplex Ethernet—Auto 10 or 100Base-T and full or half-duplex Ethernet operation.
  • Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging.
  • Automatic Learning, Aging, and Filtering—Only allows packets with addresses outside the LAN to be forwarded.


Overview
The Model 2150 offers one of the most efficient, reliable, and cost effective solutions for connecting peered 10/100Base-T Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile ISP services—all at 10 Mbps!

The Model 2150’s compact size and connection options make installation easy. The dual 10/100Base-T Ethernet ports are equipped with shielded RJ-45 jacks for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink Line port is equipped with an RJ-45 jack for easy connection to the CopperLink™ Extenders. For convenient installation, the Model 2150 auto-senses and configures for 10Base-T or 100Base-T—as well as full or half-duplex—operation.

The CopperLink Ethernet Extender, providing high speed Ethernet extension at 10 Mbps, is the ideal product for educational facilities, office buildings, multi-dwelling units, industrial complexes, government agencies, and military installations. If you want to take your network connections farther and faster over existing copper, Patton’s CopperLink Ethernet Extenders are the perfect choice.

Model 2150 Distance Chart, Based on 24 AWG (0.5 mm)
Data Rate
Signal Noise Ratio (SNR)
Mode
Distance in feet (km)
Throughput at Max Distance in Mbps
10/10
6 dB
Fast
4,500 ft (1.3 km)
9.99 (DS)/9.99 (US)
10/10
6 dB
Interleave
4,500 ft (1.3 km)
9.99 (DS)/9.99 (US)
10/10
9 dB
Fast
4,750 ft (1.4 km)
9.99 (DS)/9.99 (US)
10/10
9 dB
Interleave
5,000 ft (1.5 km)
9.99 (DS)/9.99 (US)

Note: The actual distance and link performance may vary depending on the environment and type/gauge of wire used.
Note: DS = downstream, US = upstream

CopperLink™ Copper Ethernet Extenders

Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!

# of
Ethernet Ports
# of wire pairs
Max. Speed (Mbps)
Distance at Max. Speed
CopperLink™
Model
2
1
N/A
2,625 ft/0.8 km
2
1
100
500 ft/0.15 km
4
4
45.6
4,600 ft/1.4 km
4
2
22.8
4,600 ft/1.4 km
2
1
15
2,953 ft/0.9 km
4
1
11.4
4,593 ft/1.4 km
2
1
10
4,265 ft/1.3 km
1
1
4.6
10,827 ft/3.3 km
1
1
2.3
16,404 ft/5.0 km


Applications
Ethernet extension application
These multi-rate Ethernet Extenders are ideal for bridging Ethernet spans inside buildings that are beyond the 328-foot (100-meter) distance limit of Ethernet.

For example, connecting remote LANs located on different floors in a building over already existing telephone-grade twisted pair.

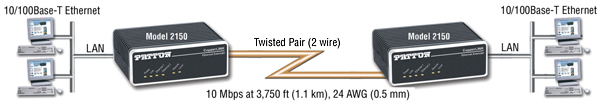

CopperLink™ 2150 application diagram


Specifications
CopperLink Interface RJ-45 (pin 4 = tip; pin 5 = ring)
Ethernet Interface Dual 8-position shielded RJ-45. Auto-sensing 10/100Base-T with half or full-duplex operation
Protocol Transparent to high layer protocol. Supports 802.1Q VLAN tagging
Transmission CopperLink line rate: 10 Mbps; Data rate: 11.5 Mbps Full-Duplex
Front panel indicators Power, CopperLink Link, Ethernet Link, Activity, Local, and Remote status
Power supply External AC and DC options: AC—120 VAC, 220 VAC, and universal input (UI)—100/240 VAC, or DC—48 VDC, -24 VDC, and -12 VDC
Compliance FCC Part 15 Class A; EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC; CE Mark
Environment Temperature: 32–104°F (0–40°C); Humidity: Up to 90%, non-condensing
MTBF 193,766 hours
Dimensions 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)
Weight 0.4 lbs (0.18 kg) without power supply


# Model # Description Availability
1 2150/E-SKD CopperLink 10Mbps PCB Extender (Local); RJ45 Contact us for Availability
2 2150/EUI CopperLink 10 Mbps Dual Port Ethernet Extender; RJ45 Connectors only; 100-240VAC Contact us for Availability

 Accessories
3 2150/EUI-2PK CopperLink 10 Mbps Dual Port Ethernet Extender Kit (1 Local Unit and 1 Remote Unit);RJ45 Connectors only; 100-240VAC Contact us for Availability

 Accessories


Item Number Item Description Price
SVC-P-7x24-L Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-M Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-S Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-L Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-M Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-S Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-ENHWAR1 1 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR2 2 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR3 3 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR4 4 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR5 5 Year Enhanced Warranty Contact us for availability and pricing.
SVC-EXTWAR2 2 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR3 3 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR4 4 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR5 5 Year Extended Warranty Contact us for availability and pricing.
SVC-TECH-HOUR Network technician hour rate for Pre-config services, after hours support etc? Contact us for availability and pricing.



Certifications (PDF) -- Requires Adobe Acrobat to view
Declaration of Conformity - 2150/Exx, 2151 Exx, 2173n/Exx Ethernet Extender Series December 12, 2012

Data Sheets (PDF) -- Requires Adobe Acrobat to view
Sunset Lifecycle Change Notice - 2150, 5151, 5173 & 2173R August 20, 2014
Model 2150 Datasheet (A4 page size) May 29, 2013
Model 2150 Datasheet May 29, 2013

Manuals (PDF) -- Requires Adobe Acrobat to view
Model 2150 User Manual August 31, 2010

News Releases
Patton Opens Pre-Orders for Managed, Copper-Bonding Ethernet Extenders with Security Features October 16, 2013
New CopperLink™ Ruggedized and Multi-Drop Ethernet Extenders Exploit Existing Copper Cable to Reach Beyond Three Miles August 15, 2012
VIDEO EXPLORES POWER OF COPPERLINK ETHERNET EXTENDER December 23, 2011
Now Shipping: Patton’s Barrier-Breaking Ultra-High-Speed Ethernet Extender November 08, 2011
New Ultra-High-Speed Ethernet Extender Breaks Another Barrier September 15, 2011
Patton, SEN Join Forces to Enable Converged-IP Networks in Central America August 31, 2011
