OnSite™ Model 3088A/I G.SHDSL.bis EFM Bridge CPE

The Model 3088A/I is a low cost, manageable and software upgradeable G.SHDSL.bis EFM CPE designed for service providers needing transparent network connectivity.

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
More EFM Solutions...

EFM DSLAM

EFM IAD

EFM VoIP CPE
  • nx64 Rates to 5.7 Mbps—With multiple full-duplex symmetric rates available, users select the bandwidth option they need
  • 4 x 10/100 Ethernet Interfaces—Connects multiple network-enabled devices
  • Software Upgradeable —Software upgrades make it easy to keep the OnSite EFM CPE in service for years
  • Plug ‘n’ Play—Just plug them in and the link comes up in seconds. Set the unit to use G.Handshaking and the selection of optimal link speeds can also be done automatically
  • Local and Remote Console—With remote console, any Patton G.SHDSL EFM modem (3296RC or 3202) can be used to manage the remote CPE modem


Overview
Patton’s Model 3088A/I G.SHDSL.bis OnSite EFM CPE is the perfect choice for users or service providers who need high-speed dedicated network connections. Based on the ITU and ETSI G.Shdsl G.991.2 standard, the 3088A/I enables providers to extend their reach-and-range by delivering rate-adaptive nx64 symmetrical speeds up to 5.7 Mbps—all over a single pair of wires.

The OnSite 3088A/I uses Patton’s Plug ‘n’ Play features to remove any CPE configuration issues when used with any Patton CO concentration solution, even another 3088A/I CPE. Just set the units to their default mode and plug them in. The remote modem configures automatically and the link is up and running in seconds. With support for remote console link configuration changes and operating statistics are available via the out-of-band EOC channel. Remote and local loopback adds to the manageability of the link. Use remote console when deploying OnSite EFM CPEs either back-to-back or with a ForeFront system to improve the manageability of the EFM CPE.

The Model 3088A/I is available with a 4-port 10/100 Ethenet switch.

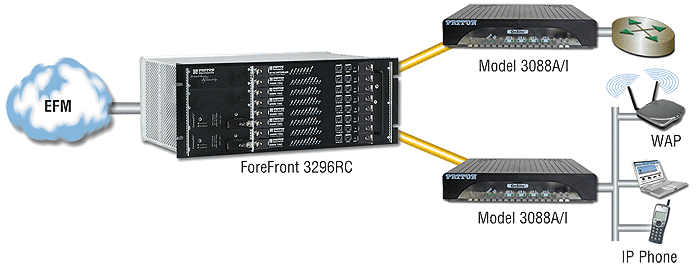

Applications

  • The Model 3088A/I OnSite EFM CPE excels in manageability even in point-to-point configurations.
  • Plug ‘n’ Play automatically configures a remote unit based on parameters stored in the local unit.
  • Secure console lets an operator log into a unit to manage and configure it locally.
  • Remote console makes  configuration and management of a remote unit easy over an out-of-band channel.
  • OnSite EFM CPEs are software upgradeable from the console port.
  • When attached to ForeFront™ aggregators, the 3088A/I can be managed via an SNMP proxy.



Specifications
Protocol Transparent to higher layer protocols. Supports 802.1 Q VLAN tagged packet transmission
Transmission Line Single twisted pair
Line Rates Auto-Rate adaptive from 192 kbps to 5.7 Mbps or selectable in all 64 kbps increments up to 5.7 Mbps
Front Panel LED Status Indicators WAN: Link, LAN (Ethernet): Link/Act, Power
Line Coding TC-PAM 16 for rates from 192 to 2.3 Mbps; TC-PAM 32 for rates above 2.3 Mbps; Annex A & B
Connectors RJ-45 on copper line side and 4 x 10/100 Ethernet, shrouded male IEC320 power connector
Line Interface Transformer coupled, 1500 VAC isolation
Management DIP Switch, Telnet console, remote console or proxy SNMP from a Patton ForeFront™ device
MTBF 4.7 years
Power External 90–260 VAC, 50–60 Hz (Universal Input)
Power Consumption 0.8A@5V
Operating Temp. 32 to 122°F (0 to 50°C)
Humidity 5 to 95%, non-condensing
Altitude 0 to 15,000 ft (0 to 4,600 m)
Dimensions 4.7 x 1.52 x 5.00 in. (106 x 390 x 127 mm)
Weight 2.0 lbs (1.0 kg)
Compliance FCC Part 15A, CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC


# Model # Description Availability
1 3088A/I/EUI OnSite 2 Wire G.SHDSL.bis EFM Modem; 4 x 10/100 Bridge; 100-240VAC General Availability

 Accessories


Item Number Item Description Price
SVC-P-7x24-L Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-M Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-S Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-L Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-M Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-S Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-ENHWAR1 1 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR2 2 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR3 3 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR4 4 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR5 5 Year Enhanced Warranty Contact us for availability and pricing.
SVC-EXTWAR2 2 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR3 3 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR4 4 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR5 5 Year Extended Warranty Contact us for availability and pricing.
SVC-TECH-HOUR Network technician hour rate for Pre-config services, after hours support etc? Contact us for availability and pricing.



Certifications (PDF) -- Requires Adobe Acrobat to view
Declaration of Conformity - 3088A/x/EUI, 2113A/EUI, 2115A/EUI December 18, 2012
RoHS Certificate of Compliance - Models 3088/CA, 3088/D, 3088/K, 3088/I October 15, 2007

Data Sheets (PDF) -- Requires Adobe Acrobat to view
OnSite Model 3088A/I Datasheet February 04, 2013
OnSite Model 3088A/I Datasheet (A4 page size) February 04, 2013

Manuals (PDF) -- Requires Adobe Acrobat to view
OnSite Model 3088A/I User Manual March 30, 2012
OnSite Model 3088A/I Guide, Quick Start March 30, 2012
