Model 1094A

This legacy product is not recommended for new installations. For next-generation alternatives, please see Patton's Model 3088 Series DSL NTUs.

Contact Us
Direct: +1 301 975 1000
Direct: +1 301 975 1007
Have Us Contact You
 Connect with us
Twitter Linkedin Facebook Youtube

View All






  • Supports multiple line rates from 144 kbps to 1.152 Mbps
  • DTE speeds from 64 kbps to 1.024Mbps in increments of 64 kbps
  • Standards-based support (CE Mark)
  • Available with internal 90—260 VAC or -48 VDC power supplies
  • Built-in loopback functionality
  • A variety of modular interfaces.

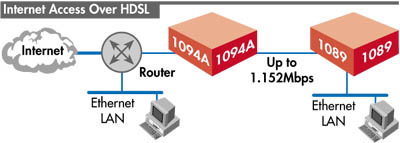

Supporting line rates from 144 kbps to 1.168 Mbps, the NetLink 1094A provides “megabyte” speeds for leased lines, LAN-to-LAN interconnections, and WAN access networks located up to 4.6 miles (7.3 km) apart (see distance table below).


The 1094A standalone version supports DTE speeds from 64 kbps to 1.152 Mbps in 64-kbps increments. It includes built-in loopback diagnostics, in-band SNMP/HTTP remote management capabilities, and accessible (DIP) configuration switches.


As a symmetric modem, the NetLink 1094A HDSL modem uses 2B1Q modulation to provide the same data rates in both directions over a single pair of regular telephone lines. Featuring replaceable DCE-DTE interface modules, the NetLink HDSL modem can support a wide range of applications, including Ethernet LAN bridging, G.703/G.704 line extension/termination and V.24/RS-232, V.35, RS-422/530, and X.21 interfaces.

A high density 2U-high rack card version of the NetLink HDSL modem (the 1094ARC is also available).

The Model 1094A is fully compatible with Patton's low-cost Model 1089 standalone modem.



Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at or +1 301 975 1000
