Features
-
Ultra-Miniature—Smallest full-function analog telephone adapter available today!
-
Supports Over 20 Voice Calling Features—Call waiting, call conference, caller ID, hotline, distinctive ring and more!
-
NAT, DHCP, PPPoE—Provides maximum connectivity across firewalls and transport networks.
-
SIP Signaling—Deploy into any multimedia, interactive, or softswitch network with the leading call and session signaling protocol.
-
Toll Quality CODECs—Use standard G.711 or G.726 CODECs for toll-quality voice, or G.723 or G.729 for low-bandwidth applications.
-
Centralized Management—HTTP/SNMP manageable from any location.
SmartNode™ Awards
Overview
The SmartNode Micro Analog Telephone Adapter provides connectivity for analog phones to a home, home office or corporate LAN. Connecting to any analog phone or PBX, the SmartNode product is ay cost effective solution for small offices and telecommuters to access Internet-based telephone services and corporate intranet systems across established LAN and Internet connections like xDSL and cable modems.
The M-ATA provides one Ethernet (RJ-45) port and one FXS (RJ-11) analog phone port for quick and easy interconnection to the local LAN. LEDs show at-a-glance the status of the system, LAN, WAN, and phone ports.
A full suite of IP features (DHCP, NAT/PAT) are available to maximize universal connectivity. VLAN tagging and prioritization enables voice traffic to be handled before data traffic insuring higher quality voice calls. Support for PPPoE tunneling simplifies extending corporate intranet services to telecommuters.
The user friendly web interface offers two levels of configuration; level one covers basic subscriber specific parameters, level two offers advanced settings for the transport network. Configuration and firmware can be downloaded from a centralized TFTP or HTTP server.
The M-ATA is SIP standard compliant. Analog phones attached to the SmartNode can use advanced calling features such as call forwarding, caller ID, 3-way calling, call holding, call retrieval and call transfer.
Applications
Patton's Micro Analog Telephone Adapter provides seamless access to Internet telephony and data services. The M-ATA connects to any broadband access provider via a cable or xDSL modem.
Specifications
| Voice
Connectivity |
2-wire Loopstart,
RJ-11/12 • Short haul
loop 1.1 km @3REN • Caller-ID
Type-1/2 FSK and ITU V.23/Bell 202 generation
|
| Connectivity |
1 10/100Base-TX Full Duplex/Autosensing Ethernet RJ-45 |
| Voice
Processing (signalling dependent) |
SIP • Voice CODECS (G.711 A-Law/µ-Law (64 kbps); G.726 (ADPCM 40, 32, 24, 16 kbps); G.723.1 (5.3 or 6.3 kbps); G.729ab (8 kbps)) • G.168 echo cancellation • 2 parallel voice connections • DTMF detection and generation • Carrier tone detection and generation • Silence suppression and comfort noise • Configurable dejitter buffer • DTMF in-band & out-of-band • Configurable transmit packet length • RTP/RTCP (RFC 1889) • STUN
|
| Voice Services/Features |
Anonymous CallerID block • Call blocking • Call
forward - on busy • Call
forward - selective • Call
forward - unconditional • Call
hold/retrieve • Call
return • Call
transfer - blind • Call
transfer - with consultation • Call
waiting/retrieval • Caller-ID • Conference
drop • Conferencing
(3-way calling) • Distinctive
ring • Do
not disturb • Hotline
calling • Incoming
CallerID on/off • IP
URL dialing • Message
waiting indication • Self-caller
ID block • Speed
dial • Voicemail
message retrieval • Warmline
calling
|
| IP
Services |
NAPT • DHCP
client • PPPoE • Programmable
static routes • ICMP
redirect (RFC 792); Packet fragmentation • VLAN
support 802.1p/q
|
| Call Routing & Services |
Regular expression number matching • Regular expression number manipulation • Least Cost Routing Number blocking • Short-Dialing • Digit collection • Distribution-Groups & Hunt-Groups • 2nd call offering |
| Management |
Browser
configuration interface • Multilevel
security access • TFTP
& HTTP configuration & firmware loading • SNMP
v2 agent • Syslog
support
|
| Power |
100–240 VAC (50/60 Hz) |
| Temperature |
0 to 40°C (32 to 104°F) |
| Humidity |
Humidity: Up to 90% (non condensing) |
| Dimensions |
3.8 L x 1.65 W x 0.75 H in. (9.7 L x 4.2 W x 1.9 H cm.) |
| Weight |
68 grams (2.4 oz) |
| Compliance |
EMC compliance:
EN55022 and EN55024 • Safety compliance:
EN 50950 • CE compliance • FCC Part 15 Class
B
|
Ordering Information
| Model # |
Description |
| M-ATA-1A/EUI |
Micro Analog Telephone Adapter; 1x FXS RJ11; 1x 10/100BaseTX, SIP, incl. ext. PS |
|
Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
Articles (PDF) -- Requires Adobe Acrobat to view |
| How Patton and Techlan Reti Transported Norbert Dentressangle to Converged IP-Communication |
May 07, 2012 |
| Patton Brings Unified Communications to Boy Scouts of America Campground |
October 31, 2007 |
| SmartNode™ Delivers VoIP-over-VPN Network with Secure, Encrypted Voice for 1200-Site Retail Chain |
August 08, 2007 |
| SmartNode™ VoIP Delivers First-Line Business-Class Internet Telephony Services with green.ch |
February 06, 2006 |
| SmartNode™ VoIP Powers inode Business Service for ISDN Subscribers |
December 21, 2005 |
Catalogs (PDF) -- Requires Adobe Acrobat to view |
| Patton Electronics Product Line Catalog #21 (High resolution, print quality) |
August 25, 2008 |
| Patton Electronics Product Line Catalog #21 (Low resolution, for dial-up users) |
August 25, 2008 |
Certifications (PDF) -- Requires Adobe Acrobat to view |
| Declaration of Conformity - M-ATA-1A/EUI: Micro Analog Telephone Adapter / M-AFA-1A/EUI: Micro Analog Fax Adapter |
December 27, 2012 |
Data Sheets (PDF) -- Requires Adobe Acrobat to view |
| SmartNode™ M-ATA Datasheet (A4 page size) |
February 04, 2013 |
| SmartNode™ M-ATA Datasheet |
February 04, 2013 |
Manuals (PDF) -- Requires Adobe Acrobat to view |
| SmartNode M-ATA User Manual |
January 07, 2013 |
| SmartNode Redirection Server Guide, Administrator's Reference |
July 12, 2012 |
| SmartLink M-ATA Guide, Quick Start |
February 09, 2012 |
News Releases |
| Patton Announces General Availability of Fiber-Optic SmartNode VoIP Gateway Router IADs |
March 19, 2013 |
| Patton Ships SmartNode VoIP IADs with ADSL Interface |
March 12, 2013 |
| Advice of Charge Service Leverages Patton VoIP Gateways |
February 26, 2013 |
| Patton Exhibits Revenue-Enabling Technologies at Mobile World Congress This Week |
February 25, 2013 |
| Mobile World Congress : Patton présentera deux nouvelles gammes de produits destinés à la mobilité d’entreprise |
February 04, 2013 |
| Patton and TMC Launch Microsoft Lync Solutions News Community |
January 30, 2013 |
| Patton Will Present Wireless Bandwidth-on-Demand Internet Routers and Carrier-Grade VoIP Solutions at Mobile World Congress |
January 24, 2013 |
| Patton and RUN Communications Team Up to Offer Canada VoIP Gateways that Just Work |
January 11, 2013 |
| SmartNode Gateways Cited Among Top Ten VoIP Products for 2012 |
January 08, 2013 |
| Llegan los Gateways VoIP de Patton para comunicaciones SIP listos para el futuro de Internet |
December 18, 2012 |
| Get VoIP Service in Just 6 Minutes from VoIP Supply with the New SIP Enable by Patton and Vitelity |
December 07, 2012 |
| Patton Fills VoIP-Market Gap with SmartNode BRI/FXS/FXO Gateway-Router |
March 07, 2012 |
| Patton Ships Thousands of SmartNode BRI VoIP Gateways, New Model Coming Soon. . . |
February 16, 2012 |
| Patton Unveils High-Density Carrier-Grade VoIP Media Gateway Today at ITEXPO |
February 01, 2012 |
| Patton Scores Seven in a Row: SmartNode™ Wins Internet Telephony’s 2011 “Product of the Year” |
January 26, 2012 |
| Patton and Elastix Announce Fully-Integrated Unified Communications Solution at elastixWorld 2011 |
November 03, 2011 |
| Patton, SEN Join Forces to Enable Converged-IP Networks in Central America |
August 31, 2011 |
| Patton-ABP-Broadvox Alliance Launches VoIPReady™ Solutions Today at IP Sizzles |
August 09, 2011 |
| Patton and FedEx Announce Faster, Better, Cheaper Logistics |
July 12, 2011 |
| Patton SmartNode™ Launches Two New BRI VoIP Product Lines |
June 29, 2011 |
| SmartNode™ VoIP vince il tredicesimo premio come Prodotto dell'anno di INTERNET TELEPHONY® |
March 29, 2011 |
| SmartNode™ VoIP gewinnt 13. jährliche Auszeichnung der Zeitschrift INTERNET TELEPHONY® für das Produkt des Jahres |
March 29, 2011 |
| La passerelle VoIP SmartNode™ remporte le treizième prix annuel Produit de l'année remis par le magazine INTERNET TELEPHONY® |
March 29, 2011 |
| IBM-Certified, Patton’s SmartNode™ VoIP Routers Enrich Lotus Sametime with Advanced Telephony Features |
March 22, 2011 |
| Certifiés par IBM, les routeurs VoIP SmartNode de Patton enrichissent Lotus Sametime avec des fonctionnalités de téléphonie avancées |
March 22, 2011 |
| IBM-zertifizierte SmartNode VoIP-Router von Patton bringen fortschrittliche Telefoniefunktionen zu Lotus Sametime |
March 22, 2011 |
| IBM certifica le serie SmartNode™ Mediagateways di Patton Electronics, arricchendo la soluzione Lotus Sametime con funzioni di telefonia avanzate |
March 22, 2011 |
| IP-Only Selects MigraX to Supply SmartNode™ VoIP Gateways |
January 19, 2011 |
| Mexico’s VoIP Market Expands as Patton and Neocenter Join Forces |
November 29, 2010 |
| El mercado mexicano de VoIP se expande con la unión de Patton y Neocenter |
November 29, 2010 |
| Patton-Inalp voit son partenaire Altitude Telecom récompensé par le prix du "Meilleur opérateur global pour les entreprises" aux trophées de la Convergence 2010 |
November 25, 2010 |
| Patton-Inalp’s Partner Altitude Telecom awarded "Best Carrier for Global Business" at IP Convergence 2010 |
November 25, 2010 |
| Patton Electronics Launches VoIP Gateways Channel on TMCnet |
November 01, 2010 |
| Patton Electronics Launches VoIP Routers Community On TMCnet |
October 27, 2010 |
| Patton, Broadvox, and ABP Partnership Showcases Turn-key SIP Trunking Solution at AstriCon |
October 27, 2010 |
| SIP Trunking is Still Sizzling for Patton and ABP |
June 21, 2010 |
| Patton Earns ISO 9001:2008 Certificate |
April 27, 2010 |
| Announcing New Strategic Alliance, Patton and ABP Storm the Americas VoIP Market |
January 12, 2010 |
| Patton Installs New Regional Director in Burgeoning Latin America Market |
March 09, 2009 |
| Patton Partners with JTS to Take Double Share of Japan's Network Equipment Market |
February 09, 2009 |
| Patton Wins INTERNET TELEPHONY® Product of the Year for the Fourth Consecutive Year |
January 20, 2009 |
| Patton Names New CEO on 25th Anniversary |
January 19, 2009 |
| Milan Sales Office Supports Rising Demand for Patton Equipment in Southern Europe |
December 16, 2008 |
| Drawn by Robust Telecom Expansion, Patton-India Launches Operations in Chennai |
April 09, 2008 |
| Patton's New VoIP IAD Wins Unified Communications 2007 Product of the Year |
March 17, 2008 |
| Patton Announces Unified Communications Agent for SmartNode™ VoIP Gateway-Routers |
January 28, 2008 |
| 3CX and Patton Deliver Bundled VoIP and IP-PBX Solution With Deerfield.com |
January 22, 2008 |
| Patton Commences 25th Year of Data and Telecom Innovations |
January 16, 2008 |
| Patton Wins INTERNET TELEPHONY® Product of the Year for the Third Consecutive Year |
January 07, 2008 |
| Patton Adds SIP Registrar to SmartNode™ VoIP Equipment |
December 17, 2007 |
| Patton-Inalp Joins Triple Play Alliance, Promotes Multi-Vendor Interoperability |
October 01, 2007 |
| Patton Receives INTERNET TELEPHONY Excellence Award |
September 12, 2007 |
| With Over 1,000 Networking Products to Offer, Patton Publishes Dual Catalogs |
May 22, 2007 |
| 3CX and Patton Team Up to Offer Flexible, Windows-Based VoIP for Small Offices |
May 14, 2007 |
| Patton Launches High-Performance PRI VoIP Gateway |
August 14, 2006 |
| SmartNode™ VoIP CPEs Now Certified for Interoperability by Cirpack® |
July 31, 2006 |
| Patton Unveils Industrial First-mile-Ethernet and Outdoor-VoIP Equipment at GlobalComm 2006 |
June 06, 2006 |
| Massive VoIP Rollout Features Patton Equipment |
April 17, 2006 |
| Patton Hardens Communication Products |
April 05, 2006 |
| Patton Ships World’s Smallest VoIP ATA |
March 16, 2006 |
| Patton and BroadSoft Deliver Interoperability to Carriers |
March 06, 2006 |
| Patton Adds Voice-Encryption to SmartNode™ VoIP Routers |
February 22, 2006 |
| Patton Receives Technology Champion Award |
February 01, 2006 |
Product/Solutions Guides (PDF) -- Requires Adobe Acrobat to view |
| 3CX IP Solutions Overview |
January 23, 2013 |
| IP Paging/Intercom/Access Control with Microsoft Lync Solution Overview |
December 18, 2012 |
| The Gateway to Microsoft Lync |
December 18, 2012 |
| SmartNode Product Line Overview |
December 18, 2012 |
| The Gateway to BroadWorks |
October 12, 2012 |
| Cable Installers Product Guide |
February 18, 2010 |
Tech Notes |
| Configuring a Patton SmartNode for the VoIPVoice SIP Business Service |
October 20, 2010 |
| Understanding Echo Problems |
September 19, 2007 |
White Papers (PDF) -- Requires Adobe Acrobat to view |
| VoIP in Industrial Networks - Implementing QoS for reliable voice over industrial Ethernet |
November 10, 2006 |
| VoIP - Addressing QoS Beyond the Provider Network |
January 19, 2006 |
Software Upgrades |

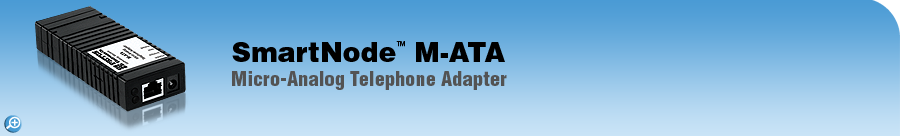

| Model M-ATA |
-
Ultra-Miniature—Smallest full-function analog telephone adapter available today!
-
Supports Over 20 Voice Calling Features—Call waiting, call conference, caller ID, hotline, distinctive ring and more!
-
NAT, DHCP, PPPoE—Provides maximum connectivity across firewalls and transport networks.
-
SIP Signaling—Deploy into any multimedia, interactive, or softswitch network with the leading call and session signaling protocol.
-
Toll Quality CODECs—Use standard G.711 or G.726 CODECs for toll-quality voice, or G.723 or G.729 for low-bandwidth applications.
-
Centralized Management—HTTP/SNMP manageable from any location.
SmartNode™ Awards
The SmartNode Micro Analog Telephone Adapter provides connectivity for analog phones to a home, home office or corporate LAN. Connecting to any analog phone or PBX, the SmartNode product is ay cost effective solution for small offices and telecommuters to access Internet-based telephone services and corporate intranet systems across established LAN and Internet connections like xDSL and cable modems.
The M-ATA provides one Ethernet (RJ-45) port and one FXS (RJ-11) analog phone port for quick and easy interconnection to the local LAN. LEDs show at-a-glance the status of the system, LAN, WAN, and phone ports.
A full suite of IP features (DHCP, NAT/PAT) are available to maximize universal connectivity. VLAN tagging and prioritization enables voice traffic to be handled before data traffic insuring higher quality voice calls. Support for PPPoE tunneling simplifies extending corporate intranet services to telecommuters.
The user friendly web interface offers two levels of configuration; level one covers basic subscriber specific parameters, level two offers advanced settings for the transport network. Configuration and firmware can be downloaded from a centralized TFTP or HTTP server.
The M-ATA is SIP standard compliant. Analog phones attached to the SmartNode can use advanced calling features such as call forwarding, caller ID, 3-way calling, call holding, call retrieval and call transfer.
Patton's Micro Analog Telephone Adapter provides seamless access to Internet telephony and data services. The M-ATA connects to any broadband access provider via a cable or xDSL modem.
| Voice
Connectivity |
2-wire Loopstart,
RJ-11/12 • Short haul
loop 1.1 km @3REN • Caller-ID
Type-1/2 FSK and ITU V.23/Bell 202 generation
|
| Connectivity |
1 10/100Base-TX Full Duplex/Autosensing Ethernet RJ-45 |
| Voice
Processing (signalling dependent) |
SIP • Voice CODECS (G.711 A-Law/µ-Law (64 kbps); G.726 (ADPCM 40, 32, 24, 16 kbps); G.723.1 (5.3 or 6.3 kbps); G.729ab (8 kbps)) • G.168 echo cancellation • 2 parallel voice connections • DTMF detection and generation • Carrier tone detection and generation • Silence suppression and comfort noise • Configurable dejitter buffer • DTMF in-band & out-of-band • Configurable transmit packet length • RTP/RTCP (RFC 1889) • STUN
|
| Voice Services/Features |
Anonymous CallerID block • Call blocking • Call
forward - on busy • Call
forward - selective • Call
forward - unconditional • Call
hold/retrieve • Call
return • Call
transfer - blind • Call
transfer - with consultation • Call
waiting/retrieval • Caller-ID • Conference
drop • Conferencing
(3-way calling) • Distinctive
ring • Do
not disturb • Hotline
calling • Incoming
CallerID on/off • IP
URL dialing • Message
waiting indication • Self-caller
ID block • Speed
dial • Voicemail
message retrieval • Warmline
calling
|
| IP
Services |
NAPT • DHCP
client • PPPoE • Programmable
static routes • ICMP
redirect (RFC 792); Packet fragmentation • VLAN
support 802.1p/q
|
| Call Routing & Services |
Regular expression number matching • Regular expression number manipulation • Least Cost Routing Number blocking • Short-Dialing • Digit collection • Distribution-Groups & Hunt-Groups • 2nd call offering |
| Management |
Browser
configuration interface • Multilevel
security access • TFTP
& HTTP configuration & firmware loading • SNMP
v2 agent • Syslog
support
|
| Power |
100–240 VAC (50/60 Hz) |
| Temperature |
0 to 40°C (32 to 104°F) |
| Humidity |
Humidity: Up to 90% (non condensing) |
| Dimensions |
3.8 L x 1.65 W x 0.75 H in. (9.7 L x 4.2 W x 1.9 H cm.) |
| Weight |
68 grams (2.4 oz) |
| Compliance |
EMC compliance:
EN55022 and EN55024 • Safety compliance:
EN 50950 • CE compliance • FCC Part 15 Class
B
|
| Model # |
Description |
| M-ATA-1A/EUI |
Micro Analog Telephone Adapter; 1x FXS RJ11; 1x 10/100BaseTX, SIP, incl. ext. PS |
|
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
|
|
