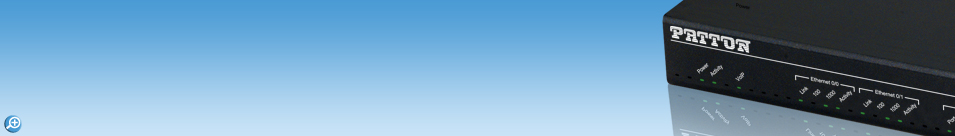

SmartNode 4990 PRI Enterprise VoIP IAD IPv6-Ready PRI VoIP IAD w/Fiber, G.SHDSL, EFM, X.21 or ADSL WAN

IP-enable legacy PBX systems with one Enterprise-class SmartNode 4990 VoIP Integrated Access Device. Supporting up to 120 concurrent VoIP calls, the SN4990 with built-in WAN enables broadband providers to connect existing PBX systems with advanced IP telephony services and the PSTN.

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • 15 to 120 VoIP calls—with up to four T1/E1/PRI ports and dual Gigabit Ethernet ports.
  • WAN AccessFiber SFP, G.SHDSL, EFM, Serial X.21, or ADSL WAN interface.
  • VoIP Transcoding Option—Up to 60 channels for WANbandwidth optimization.
  • Proven Interoperability—SIP interop with major IP PBX, Softswitch and VoIP Service Providers. Over 100,000 SmartNode deployments worldwide. ISDN/PSTN compliance in nearly everycountry..
  • QoS and Security—Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPNwith AES/DES strong encryption.
  • Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
  • High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
  • Flexible Mounting Options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19).
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
  • Why SmartNode?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Tech Support and Upgrades



Overview
The SmartNode™ 4990 VoIP Integrated Access Device offers Broadband Providers a single box CPE solution with built-in G.SHDSL, EFM, ADSL, fiber, or X.21 broadband access allowing Enterprises to IP-enable their legacy PBX systems. The single box CPE solution allows Broadband Providers to reduce their hardware costs, simplify their network architecture and streamline their service and deployment. Evolving from Patton’s award winning SmartNode 4960 Series, the next generation SmartNode 4990 Series comes now with IPv6 upgradeable hardware.

Like every SmartNode™, the SN4990 supports every industry-standard CODEC to deliver tollquality voice on every call. The Unified Communications Agent™ (UCA)provides anyto-any multi-path switching (simultaneous SIP, H.323, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernetnetworks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec with AES/DES strong encryption andautomated keying via Internet Key Exchange (IKE). In addition, advanced call-router functionality includes least-cost call routing with flexible dialed-number plansupport.

The SmartNode survivability suite combines PSTN fallback, SIP Registrar and IP-link redundancy to ensure business continuity in case the IP network fails.Patton’s DownStreamQoS™ delivers the advantage of clear, uninterrupted voice-and-data communication. Furthermore, SmartNode’s unique high-precision clockdelivers first-line IP telephony service in demanding ISDN and DECT environments with reliable FAX and modem performance. In addition, SmartNode delivers asmooth transition to VoIP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider’s number portingprocess. Session border router capabilities include optional transcoding for up to 64 channels. Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on your LAN into lower-bandwidth G.723 calls for WAN transport.

Providing one to four T1/E1/PRI and two 10/100/1000 Ethernet interfaces with G.SHDSL, EFM, ADSL, Fiber, or X.21 broadband access in a single box, the SN4990 delivers secure, prioritized unified communications.



Applications
Migrate Legacy PBX to IP PBX
SmartNode 4990


Specifications
PSTN

Up to four T1/E1/PRI ports (NE/TE) • Signaling support (ISDN DSS-1, NI-2, Q.SIG, CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink) • ISDN AOC/ECT • ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI64) • ISDN supplementary services • CAS protocols: RBS (Loop start, ground start, E&M wink, intermediate, double-wink) and R2/MFC-R2 (Q.400–Q.490 and Configurable country profiles), fallbackrelay on 4 port versions

VoIP

SIPv2 (SIP Info, Update, PRACK, Privacy, Refer), B2BUA, Optional SIP Registrar and Transcoding, H.323v4 (H.235, Early H.245, H.245 tunneling, fast-connect)

Broadband Access G.SHDSL: 4-wire G.SHDSL ITU-T G991.2, Annex A, B, F, G • Up to 11.4 Mbps • PPPoE • PPPoA, IPoA, 8PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs)
X.21: Serial X.21

ADSL: ADSL2+ ITU-T G.992.5, Annex A, M, B • Up to 24 Mbps • PPPoE • PPPoA • IPoA • 8 PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs)

Fiber:SFP slot for fiber WAN uplink • 100Base-T and GigE support • Up to 8 VLANs • PPPoE

EFM: EFM mode compliant to IEEE 802.3 G.998.2 • PPP over Ethernet (RFC2516) • Support of OAM PDU information and functionality (ITU-T Y.1731) ª OAMPDU event notification, variable request, variable response, and loopback control

Voice Processing Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G727, T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass • 128 ms echo cancellation
Call Routing and Services Regular expression call routing and manipulation • number blocking • shortdialing • digit collection, distribution and hunt groups
Data Interfaces Dual 10/100/1000 TX Ethernet Ports • Autosensing • Auto-MDI • Full-duplex
IP Routing IP access router • DHCP Client & Server • RIPv2 • BGP • VRRP • Packet fragmentation • Firewall • NAT/NAPT RFC 1631 • Access Control Lists • DMZ port • IPsec VPN (Option)
IP Quality of Service Voice priority • DownStreamQoS™ • traffic management, shaping policing • IEEE 802.1p, TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion 4,096
Management

Web/HTTP, CLI with local console & remote Telnet access • HTTP/TFTP configuration & firmware loading • SNMP MIB II and product MIB • SYSLOG • Secure autoprovisioning for both firmware & unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)

Power & Packaging

Desktop metal chassis
Dimensions: 30.1W x 4.5H x 18.1D cm (11.9W x 1.8H x 7.1D in.)
Weight: < 30 oz (850g)
External or Internal Power: 100–240 VAC (50/60 Hz)
Power Consumption < 15W

Operating Environment

Operating temperature: 32 to 104° F (0 to 40°C)
Operating humidity: up to 90%, non-condensing

Compliance EMC: EN55022 and EN5502 • Safety: EN 60950 • CE • FCC Part 15 Class A; Part 68; CS-03


Ordering
# Model # Description Availability
1 SN4991/1E15V2G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
2 SN4991/1E15V2GS/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
3 SN4991/1E15V4G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
4 SN4991/1E15VA/EUI SmartNode 1 T1/E1 PRI VoIP IAD, ADSL, 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
5 SN4991/1E15VD/EUI SmartNode 1 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
6 SN4991/1E15VF/EUI SmartNode 1 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 15 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
7 SN4991/1E24V2G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 24 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
8 SN4991/1E24V2GS/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 24 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
9 SN4991/1E24V4G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 24 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
10 SN4991/1E24VD/EUI SmartNode 1 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 24 VoIP channels, upgradeable to 30; upgradeable to 30, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
11 SN4991/1E24VF/EUI SmartNode 1 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 24 VoIP channels, upgradeable to 30; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
12 SN4991/1E30V2G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 30 VoIP channels, nonupgradeable; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
13 SN4991/1E30V2GS/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 30 VoIP channels, nonupgradeable; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
14 SN4991/1E30V4G/EUI SmartNode 1 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 30 VoIP channels, nonupgradeable; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
15 SN4991/1E30VA/EUI SmartNode 1 T1/E1 PRI VoIP IAD, ADSL, 2x GigEthernet, 30 VoIP channels; not upgradeable , External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
16 SN4991/1E30VD/EUI SmartNode 1 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 30 VoIP channels; External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
17 SN4991/1E30VF/EUI SmartNode 1 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 30 VoIP channels; nonupgradeable, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
18 SN4991/4E120VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 120 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
19 SN4991/4E120VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 120 VoIP channels; not upgradeable , Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
20 SN4991/4E120VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 120 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
21 SN4991/4E120VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 120 VoIP channels; not upgradeable , Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
22 SN4991/4E120VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 120 VoIP channels; nonupgradeable, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
23 SN4991/4E15VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 15 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
24 SN4991/4E15VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD,G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
25 SN4991/4E15VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 15 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
26 SN4991/4E15VRA/EUI SmartNode 4 T1/E1 PRI VoIP IAD, ADSL, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
27 SN4991/4E15VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
28 SN4991/4E15VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
29 SN4991/4E24VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 24 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
30 SN4991/4E24VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 24 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
31 SN4991/4E24VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 24 VoIP channels; Upgraeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
32 SN4991/4E24VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 24 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
33 SN4991/4E24VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 24 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
34 SN4991/4E30V120R2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 30 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
35 SN4991/4E30V120R2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 30 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
36 SN4991/4E30V120R4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 30 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
37 SN4991/4E30V120RD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 30 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
38 SN4991/4E30V120RF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, Fiber SFP, 2x GigEthernet, 30 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
39 SN4991/4E30VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 30 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
40 SN4991/4E30VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 30 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
41 SN4991/4E30VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 30 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
42 SN4991/4E30VRA/EUI SmartNode 4 T1/E1 PRI VoIP IAD, ADSL, 2x GigEthernet, 30 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
43 SN4991/4E30VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 30 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
44 SN4991/4E30VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 30 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
45 SN4991/4E48VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 48 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
46 SN4991/4E48VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 48 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
47 SN4991/4E48VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 48 VoIP channels; Upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
48 SN4991/4E48VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 48 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
49 SN4991/4E48VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 48 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
50 SN4991/4E60VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 60 VoIP channels; nonupgradeable, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
51 SN4991/4E60VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-ATM (4-Wire), 2x GigEthernet, 60 VoIP channels; not upgradeable , Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
52 SN4991/4E60VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (8-Wire), 2x GigEthernet, 60 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
53 SN4991/4E60VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 60 VoIP channels; not upgradeable , Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
54 SN4991/4E60VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 60 VoIP channels; nonupgradeable, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
55 SN4991/4E96VR2G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL.bis-EFM (4-Wire), 2x GigEthernet, 96 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
56 SN4991/4E96VR2GS/EUI SmartNode 4 T1/E1 PRI VoIP IAD, G.SHDSL, 2x GigEthernet, 96 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
57 SN4991/4E96VR4G/EUI SmartNode 4 T1/E1 PRI VoIP IAD, EFM (8-Wire), 2x GigEthernet, 96 VoIP channels; Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
58 SN4991/4E96VRD/EUI SmartNode 4 T1/E1 PRI VoIP IAD, X.21, 2x GigEthernet, 96 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
59 SN4991/4E96VRF/EUI SmartNode 4 T1/E1 PRI VoIP IAD, SFP, 2x GigEthernet, 96 VoIP channels; upgradeable to 120, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories


Item Number Item Description Price
SVC-P-7x24-L Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-M Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-S Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-L Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-M Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-S Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-ENHWAR1 1 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR2 2 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR3 3 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR4 4 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR5 5 Year Enhanced Warranty Contact us for availability and pricing.
SVC-EXTWAR2 2 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR3 3 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR4 4 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR5 5 Year Extended Warranty Contact us for availability and pricing.
SVC-TECH-HOUR Network technician hour rate for Pre-config services, after hours support etc? Contact us for availability and pricing.


Related Products
DSL CPE/IADs
OnSite™ 3300 Series EFM Router & Integrated Access Device
OnSite™ Model 3088A/I G.SHDSL.bis EFM Bridge CPE
DSLAMs - High-Density DSL Aggregation
ForeFront™ Model 3310RC EFM DSLAM Rack Card | 24 G.SHDSL.bis Ports
DSLAMS - Low-Density DSL Aggregation
ForeFront™ 3310P EFM DSLAM Standalone Chassis | 24 G.SHDSL.bis ports
EFM Solutions
ForeFront™ 3310P EFM DSLAM Standalone Chassis | 24 G.SHDSL.bis ports
ForeFront™ Model 3310RC EFM DSLAM Rack Card | 24 G.SHDSL.bis Ports
OnSite™ 3300 Series EFM Router & Integrated Access Device
OnSite™ Model 3088A/I G.SHDSL.bis EFM Bridge CPE
SmartNode 4670 Hybrid VoIP IAD BRI/FXS/FXO VoIP IAD with Fiber, EFM, G.SHDSL or ADSL WAN Routerr
SmartNode 5490 ESBR IAD SIP SBC Router with Fiber, EFM, G.SHDSL, ADSL or X.21 WAN-Access Port
SIP Session Border Controllers
SmartNode 5490 ESBR IAD SIP SBC Router with Fiber, EFM, G.SHDSL, ADSL or X.21 WAN-Access Port
Trinity Products
ForeFront™ 3310P EFM DSLAM Standalone Chassis | 24 G.SHDSL.bis ports
ForeFront™ Model 3310RC EFM DSLAM Rack Card | 24 G.SHDSL.bis Ports
OnSite™ 3300 Series EFM Router & Integrated Access Device
SmartNode 5490 ESBR IAD SIP SBC Router with Fiber, EFM, G.SHDSL, ADSL or X.21 WAN-Access Port
VoIP Digital - All
SmartNode 4670 Hybrid VoIP IAD BRI/FXS/FXO VoIP IAD with Fiber, EFM, G.SHDSL or ADSL WAN Routerr
VoIP IADs - All
SmartNode 4670 Hybrid VoIP IAD BRI/FXS/FXO VoIP IAD with Fiber, EFM, G.SHDSL or ADSL WAN Routerr
SmartNode 5490 ESBR IAD SIP SBC Router with Fiber, EFM, G.SHDSL, ADSL or X.21 WAN-Access Port
VoIP IADs - Digital
SmartNode 4670 Hybrid VoIP IAD BRI/FXS/FXO VoIP IAD with Fiber, EFM, G.SHDSL or ADSL WAN Routerr

Articles (PDF) -- Requires Adobe Acrobat to view
How Patton and Techlan Reti Transported Norbert Dentressangle to Converged IP-Communication May 07, 2012

Certifications (PDF) -- Requires Adobe Acrobat to view
Declaration of Conformity - SmartNode 49x0 / SmartNode 49x1 December 31, 2012
Statement of Equivalence - SmartNode 4990, 4980, 4970 June 26, 2012

Data Sheets (PDF) -- Requires Adobe Acrobat to view
SmartNode 4990 Datasheet (A4 page size) January 27, 2014
SmartNode™ 4990 Datasheet January 27, 2014

Manuals (PDF) -- Requires Adobe Acrobat to view
Trinity Release 3.4.X - Command Line Reference Guide July 28, 2014
SmartWare R6.5 Software Configuration Guide January 23, 2014
SmartWare R6.3 Software Configuration Guide August 05, 2013
SmartWare R6.4 Software Configuration Guide August 05, 2013
SmartNode 4980-4990 User Manual February 06, 2013
SmartNode Redirection Server Guide, Administrator's Reference July 12, 2012
SmartNode 4970/4980/4990 Series Guide, Quick Start May 24, 2012
SmartNode 4980/4990 Series User Manual May 24, 2012

News Releases
Powered by Patton SmartNode, ZEOP Launches Business-Class VoIP Service for Reunion Island May 22, 2014
Patton Earns 2013 Unified Communications Excellence Award Scoring Thirteenth Win for SmartNode March 27, 2014
Patton Names 888Voip U.S. Partner of the Year for 2013 January 07, 2014
Patton Announces Element Management System for SmartNode™ VoIP CPE December 27, 2013
Announcing Interop with BroadWorks® Device Management, Patton’s VoIP CPE Offers Carriers Competitive Advantage December 12, 2013
>> More

Product/Solutions Guides (PDF) -- Requires Adobe Acrobat to view
SmartNode Product Line Overview October 21, 2014
3CX IP Solutions Overview January 23, 2013
IP Paging/Intercom/Access Control with Microsoft Lync Solution Overview December 18, 2012
The Gateway to Microsoft Lync December 18, 2012
The Gateway to BroadWorks October 12, 2012

Service Level Agreement (PDF) -- Requires Adobe Acrobat to view
SmartNode Redirection Service SLA March 05, 2013

Software Upgrades
SmartNode 4990 ( SN4990 )


SmartNode™ Awards

VoIP IAD | SmartNode 4990 PRI Enterprise VoIP IAD

IP-enable legacy PBX systems with one Enterprise-class SmartNode 4990 PRI VoIP IAD. IPv6-Ready 120-call VoIP IAD offers Fiber, G.SHDSL, EFM, X.21 or ADSL WAN Access.



Need Help? Call Us (USA): +1 301 975 1000 Call Us (Europe): +41 31 985 2525 E-mail Sales: sales@patton.com E-mail Support: support@patton.com

Product Lines
> Voice over IP (VoIP) Gateways
> Ethernet Extenders
> RAS & DSLAMs
> Balancing & Bonding Wireless Routers
> DSL IAD, E1 NTUs & WAN Routers
> Line Drivers, Interface Converters, Baluns & Surge Protectors
> Special Projects
> All Products

Library
> eNewsletters
> Press Room
> Success Stories
> White Papers
> Manuals
> Product & Solutions Guides
> Datasheets
> Tech Notes
> Get Our Catalog
> Marketing Resources

Services & Support
> Upgrades
> Repairs & Returns
> Services
> Help Desk
> Training & Seminars
> Knowledgebase
> Enhanced Warranty

Company
> Contact Us
> Upcoming Events
> About Patton
> Management Team
> Culture
> Careers
> Environment
> Capabilities
> Social
> Partners & Programs
> Send Us Your Feedback

Global Sites
English Language Spanish Language French Language

German Language Italian Language Polish Language


Copyright © 2001–2014 Patton Electronics Co., All Rights Reserved.
|  Sitemap  |  Legal  |  Privacy Policy  |  Disclaimer  |    Twitter  Facebook  YouTube  LinkedIn  RSS
