Features
- Up to 8 analog ports—Compact, reliable stand-alone VoIP gateway with different port options. Supports simultaneous voice or fax calls on all ports. (note: Patton does not carry an 8-FXO unit at the present time)
- Toll-Quality VoIP—Advanced traffic management and shaping, combined with Patton’s patent-pending DownStream QoS™ enforce uninterrupted toll-quality voice over best-effort networks.
- Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fallback to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
- Complete SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem handling, DTMF relay. Codecs G.729, G.723, and so on.
- Easy Management & Provisioning—Web-based management, SNMP, command line interface. Automated mass provisioning for efficient large-scale deployments.
- Outstanding Interoperability—Proven integration for voice and T.38 fax with leading IP PBX systems and soft switch vendors.
SmartNode™ Awards
Overview

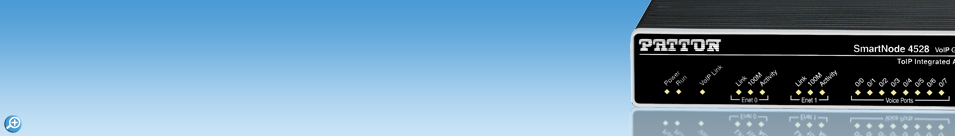

Connect with confidence using the SmartNode 4520 VoIP Gateway Router. Integrating a complete enterprise router with a full-featured Voice-over-IP Media Gateway offers the new standard in toll-bypass, remote/branch office connectivity, and enhanced carrier services. Perfect for the Remote office, Branch office, or PBX/Switch extension, the SmartNode 4520 integrates all your voice, FAX, and LAN traffic for seamless and secure networking.
With its FXS analog ports the SN4520 Series supports up to eight simultaneous calls, connects to any legacy telephone or PBX, and provides dial-tone, ringing, and caller-ID. When equipped with FXO ports, the local PSTN can be accessed enabling local calling, enhanced toll-bypass services, and fallback configurations. ClearConnect™ adaptive network monitoring ensures your call always gets connected even if the VoIP link goes down or becomes congested.
With dual 10/100 Ethernet ports, the SN4520 Series provides IP routing with guaranteed Quality of Service. Voice traffic is prioritized while LAN/IP traffic shaping permits efficient access to the Internet and corporate networks. As a complete enterprise router, the SN4520 supports DHCP, NAT, Firewall/ACL, and PPPoE clients. While IPSEC VPN and VLAN tunnel data while DES, 3DES or AES enables secure voice and data over the public network.
This integrated access router and VoIP Gateway benefits service providers and enterprise network administrators with a lower cost of ownership and better service quality.
Applications
LAN/WAN QoS & Router
As an Enterprise router the SmartNode offers QoS voice, wire-speed traffic shaping, and complete network access. With dual 10/100 Eternet ports, the SmartNode connects your hosts to your LAN with VLAN tagging, DHCP server/client, and Firewall/ACL services. Use PPPoE and IPSEC VPN with DES, 3DES, and AES encryption and bring your Voice and Data to the WAN through a single and secure network connection.
Local PSTN + Packet Voice
Using Patton's SmartNode Gateway routers with FXS & FXO ports allows seamless access to both remote packet-voice and local PSTN telephony. Using ToIP call switching, distinctive ring, and Caller-ID a single handset can now access the right service at any time. With Patton’s ClearConnect™ fail-over protection your phone call will be completed. Network health monitoring and ToIP switching ensures a clear call even if the IP network is down.
Specifications
| Voice Connectivity | • 2, 4, 6, or 8 FXS ports- 2-wire Loopstart, RJ-11/12
- Short haul loop 1.1 KM @3REN
- EuroPOTS (ETSI EG201 188)
- Programmable AC impedence, feeding, and ring voltage; On-Hook Voltage 29VDC
- Caller-ID Type-1/2 FSK and ITU V.23/Bell 202 generation
• 2 or 4 FXO ports- 2-wire loop-start presented as an RJ-11/12
- 2.5kV line isolation Surge Protection: Voice Ports: Tip & Ring protected by 270 V side actor
- Off-hook and ring detection, Automatic line gain, Programmable ring count
- End of Call detection, Line drop, busy tone, battery reversal detection
- Hook-Flash Sending, H.245 Hook-Flash relay, DTMF send, detect, and relay
- Caller ID FSK CLI reception and relay (Bellcore/ANSI and ETSI/ITU), Call routing based on Caller ID
- Second dial-tone for two-stage DTMF dialing, Call routing based on DTMF numbers
| | Data Connectivity | Dual 10/100 Full Duplex, Autosensing, Ethernet RJ-45 | | Voice Processing (signalling dependent) | • Voice codes - G.711 A-Law/µ-Law (64kbps)
- G.726 (ADPCM 40, 32, 24, 16 kpbs)
- G.723.1 (5.3 or 6.3 kbps)
- G.729ab (8kbps)
• Up to 8 parallel voice connections
• G.168 echo cancellation
• Carrier tone detection and generation
• Silence suppression and comfort noise
• Configurable dejitter buffer
• Configurable tones (dial, ringing, busy)
• RTP/RTCP (RFC 1889) | | Fax and Modem Support | • G.711 Fax- and Modem-Bypass
• T.38 Fax relay (9.6 k, 14.4 k) | | Voice Signalling | • H.323v4 - RAS, H.225, H.245
- H.235 secure RAS
- Fast-connect, early H.245
- Gatekeeper autodiscovery, Alias registration
- Overlap dialing
- Empty capability set (call transfer, hold)
- H.323v1 call transfer, hold
• SIPv2 - Supported RFCs: 2806, 2833, 2976, 3261, 3263, 3264, 3323, 3325, 3515
- draft-ietf-sip-cc-transfer-02, draft-ietf-sip-cc-transfer-05
- draft-ietf-sip-refer-02, draft-ietf-sip-replaces-01
- draft-ietf-sip-session-timer-04, draft-ietf-sip-session-timer-08
- Caller ID, CLIR (receive from PSTN)
- Support for proxy and redirect servers
- RFC2833: DTMF Relay, SIP INFO DTMF Relay, Fax-Bypass (G.711), T.38 Fax-Relay
- Session Timer, Record-Routing, Authentication
- Compression CODECs, Fax/Modem bypass
| | Call Routing | • Virtual Interfaces
• Routing Criteria: Called party number (Destination) Calling party number (Source) Time of day, day of week, date
• Longest prefix match, wildcard match, regular expression match
• Number Manipulation Functions: Replace numbers Add/remove digits Regular Expressions
• Fallback Routing: Soft Fallback to alternative interface or Call Router table | | IP Services | • IPv4 router
• Static Routes, ICMP redirect (RFC 792), RIPv1, v2 (RFC 1058 and 2453)
• Static and dynamic NAT and NAPT
• DHCP server and Client
• Access Control Lists
• IPSEC AH & ESP Modes, preshared Keys
• AES/DES/3DES Encryption | | Quality of Services | • Traffic classification by ACL
• TOS and DiffServ labeling Configurable TOS/Precedence bits or DiffServ codepoints
• IEEE 802.1p/Q
• Traffic scheduling: Priority, Weighted fair queuing (WFQ), Hierarchical traffic classes
• Policing of traffic classes
• DownStreamQoS™ Dynamic restriction of inbound (downstream) TCP traffic to free bandwidth for voice packets.
• Improves voice quality in the receiving direction | | Management | • Web GUI
• Industry standard CLI with local console (CRJ-45, RS-232) and remote Telnet access
• TFTP configuration & firmware loading
• SNMP v1 agent (MIB II and private MIB)
• Built-in diagnostic tools (trace, debug) | | Operating Environment | • Operating temperature: 0 - 40°C
• Operating humidity: Up to 90% (non condensing) | | System | • CPU Motorola MPC875 @ 66 MHz
• Memory 32MB SDRAM/8MB Flash
• Power: External universal 100 - 240 VAC (50/60 Hz)
• Power dissipation: 4 - 12W model dependent | | Compliance | • EMC compliance: EN55022 and EN55024
• Safety compliance: EN 60950
• CE per RTTE 99/5/EC (EMC and LVD)
• FCC Part 15 Class A
• TBR-21 (FXS) |
Ordering Information
| Model # |
Description |
| SN4522/JO/EUI |
SmartNode Dual FXO VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4522/JS/EUI |
SmartNode Dual FXS VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI power. |
| SN4524/2JS2JO/EUI |
SmartNode 2 FXS & 2 FXO VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4524/JO/EUI |
SmartNode 4 FXO VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4524/JS/EUI |
SmartNode 4 FXS VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4526/4JS2JO/EUI |
SmartNode 4 FXS 2 FXO VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4526/JS/EUI |
SmartNode 6 FXS VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4528/4JS4JO/EUI |
SmartNode 4 FXS & 4 FXO VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
| SN4528/JS/EUI |
SmartNode 8 FXS VoIP GW-Router; 2x10/100baseT, H.323 and SIP, External UI Power. |
|
