Products  >  Unified Communications  >  Analog (FXS/FXO) Enterprise VoIP CPE  >  Analog VoIP IADs  >  SmartNode SN5540 View Printable

Analog VoIP IADs

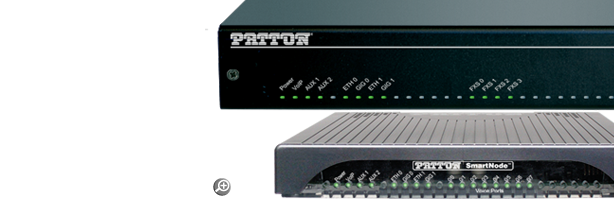

SmartNode SN5540 eSBC + Router | 2, 4 or 8 analog ports for up to 8 phone or fax calls



The SmartNode 5540, is a cost effective eSBC with integrated Broadband access and up to 8 FXS/FXO ports supporting a high level of VoIP and network security. It is capable of doing up to 200 SIP to SIP calls*** whereof max. 4 can be transcoded**. Built-in QoS functionalities and support of G.722 high definition codec ensure excellent VoIP call quality.
Overview
Cloud Enabled The SN5540 is the perfect choice for All-IP applications where legacy, non-replaceable analog equipment has to be integrated into a UCC environment. For pure All-IP networks, the SmartNode acts as a service termination point toward the enterprise with an integrated Broadband access termination for G.SHDSL, VDSL, ADSL or Fiber SFP.

With the separate config domain feature, the SN5540 will be the service demarcation point for SIP Trunk service providers, where the local administrator can be limited to only modify configuration settings facing the LAN IP PBX.

The SN5540 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device.

It can also undertake network assessment and monitoring at the customer premise by using Patton Cloud network monitoring
to prevent, reduce and resolve network and voice quality problems.


Applications
Network Integration
Thanks to the built-in FXS ports, it resolves technology evolution related problems, either by integrating old, non-replaceable telephones into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure. The built-in FXO ports, available on certain versions, offer failover for calls (mainly emergency calls) that are connected after broadband access fails.

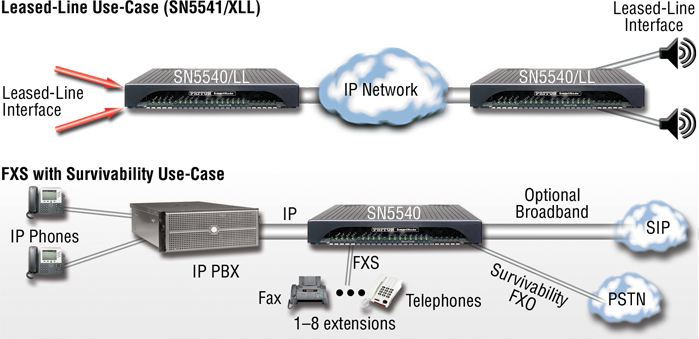

SmartNode 5540 application

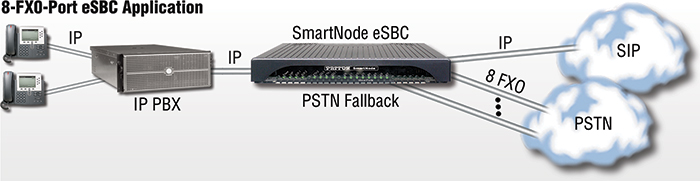

SmartNode 5541 8-FXO-port Gateway Application


Features
  • WAN Access—Fiber SFP, G.SHDSL-EFM/ATM, Gigabit Ethernet or VDSL/ADSL WAN interface.
  • SIP Registrar - License is included in ALL eSBC products.
  • Up to 8 Analog interfaces (FXS/FXO)—2, 4 or 8 analog ports. Either FXS or FXO or a combo configuration. Up to 8 G.722/G.711 or T.38 calls simultaneously. Leased line 2W/4W optional.

  • Full Telephony Features—Session Router allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.Full SIP-ISDN AOC support.
  • Outstanding Interoperability—Interoperable for data, voice and T.38 fax with leading, SIP service providers, soft-switch vendors, major IP-PBX systems and various DSLAMs.
  • Complete Access Routing—Two 10/100/1000 Ethernet ports with auto-MDI-X. Ethernet Layer 2 switching and bridging. Access router with NAT, Policy Based Routing, Stateful Firewall, PPPoE, DHCP, DynDNS.
  • Easy Management & Provisioning—Web-based management, WEB Wizard, SNMPv3, command line interface, secure, zero-touch provisioning separate config. domain support, TR-069.
  • Full VoIP protocol support—SIPv2, SIPv2 over TLS, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
  • Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Support and Upgrades

Ordering
All SN5540 models include the following Software Feature Licenses:
  • SIP Registrar
  • IP Routing
  • RTP Transcoding
  • SIP TLS-SRTP


    		•
    # Model # Description Availability
    1 SN5541/2JO2V/EUI SmartNode eSBC, 2 FXO, 2 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 1 Transcoded SIP Session (upgradeable max. 4), General Availability

     Accessories

    2 SN5541/2JS2JO4V/EUI SmartNode eSBC, 2 FXS, 2 FXO, 4 VoIP or 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 4 Transcoded SIP Calls, SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) General Availability

     Accessories

    3 SN5541/2JS2V/EUI SmartNode eSBC, 2 FXS, 2 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 1 Transcoded SIP Session (upgradeable max. 4), SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    4 SN5541/2JS2VAVA/EUI SmartNode E-SBC, 2 FXS, 2 VoIP Calls, 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 2 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex A/L/M, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories

    5 SN5541/2JS2VAVB/EUI SmartNode E-SBC, 2 FXS, 2 VoIP Calls or 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 2 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex B/J, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories

    6 SN5541/2LL2V/EUI SmartNode 2-WIRE Leased Line over IP Extender. eSBC, 2 VoIP lines; 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    7 SN5541/4JO4V/EUI SmartNode eSBC, 4 FXO, 4 VoIP or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 2 Transcoded SIP Calls (upgradeable max. 4), SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    8 SN5541/4JS4JO8V/EUI SmartNode eSBC, 4 FXS, 4 FXO, 8 VoIP or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 4 Transcoded SIP Calls, SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) General Availability

     Accessories

    9 SN5541/4JS4V/EUI SmartNode eSBC, 4 FXS, 4 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 2 Transcoded SIP Sessions (upgradeable max. 4), SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    10 SN5541/4JS4VAVA/EUI SmartNode E-SBC, 4 FXS, 4 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 2 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex A/L/M, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories

    11 SN5541/4JS4VAVB/EUI SmartNode E-SBC, 4 FXS, 4 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 2 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex B/J, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories

    12 SN5541/4LL4V/EUI SmartNode 2-WIRE Leased Line over IP Extender. eSBC, 4 VoIP lines; 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    13 SN5541/8JO8V/EUI SmartNode eSBC, 8 FXO, 8 VoIP Calls or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 4 Transcoded SIP Sessions, SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) General Availability

     Accessories

    14 SN5541/8JS8V/EUI SmartNode eSBC, 8 FXS, 8 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), 4 Transcoded SIP Sessions, SIP-TLS, SRTP, 2x Gig Ethernet, 1x USB port, external UI power (100–240 VAC) NA/EU General Availability

     Accessories

    15 SN5541/8JS8VAVA/EUI SmartNode E-SBC, 8 FXS, 8 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 4 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex A/L/M, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories

    16 SN5541/8JS8VAVB/EUI SmartNode E-SBC, 8 FXS, 8 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), 4 Transcoded Calls, SIP-TLS, SRTP, 2x Gig Ethernet, VDSL/ADSL-Annex B/J, 1x USB port, ext. UI power (100–240 VAC) General Availability

     Accessories
