Virtual Router - Virtualized Enterprise Router or Access Router
What is a virtualized access router? Access router is a sort of shorthand term for an Internet access router or wide area network (WAN) access router. When deployed by an organization this network element is often called an enterprise router, and is traditionally implemented as a dedicated hardware appliance on the subscriber premise. However, the access router functionality may be virtualized. Virtualization means the software is separated or de-coupled, from the customer premise equipment (CPE) hardware. Such virtualization results in a virtualized network function (VNF), which may also be called a software access router or virtual access router.

Virtualization Benefits
Virtualization technology offers several valuable benefits, beginning with touchless, automated service deployment and activation. Whether virtualized and delivered in the cloud, or downloaded for operation on bare metal virtual customer premise equipment (vCPE), enterprise router capacity (number of connections) can be scaled up or down as needed, or even automated on an schedule based on forecasted demand using cloud-based network-edge orchestration. By removing the limitations of a dedicated hardware appliance, Virtualization technology offers increased reliability and higher network availability.


Show Me: Virtualized Access Router


Virtual Enterprise Router / Access Router

vSN WAN Access Router / Internet Access Router

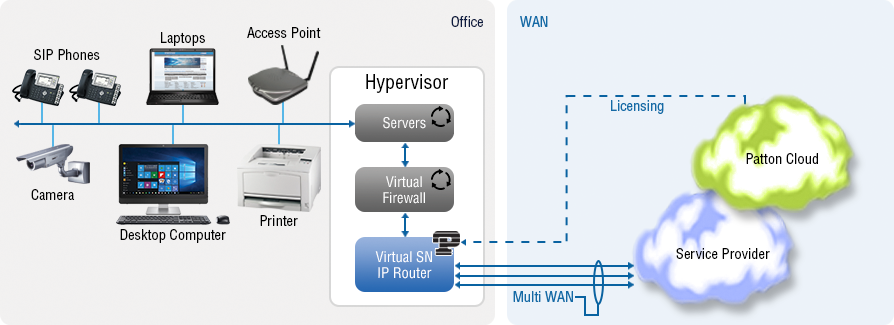

Deliver scalable, flexible, and reliable Internet access and WAN access for your organization with Patton's virtual SmartNode (vSN) business-class virtual router. In this VNF use case, the virtual router software may be implemented as a virtual machine (VM), which resides in the cloud or it may be downloaded and installed on bare-metal, uCPE hardware on the enterprise customer premise. The virtual access router provides virtual load balancer services for support and management of multiple WAN links. The vSN enterprise-grade router also delivers network survivability, network address translation (NAT), network address and port translation (NAPT), DHCP server capability, and access control list (ACL) functionality-plus IPv6 support along with all the standard routing protocols, including VRRP, GRE, RIP, and BGP. All this is delivered with high availability through virtualized network technology, including cloud-controlled license key management and Patton Cloud edge orchestration.
Teach Me: Virtualized Access Router
Edge Orchestration
Whether the virtualized access router is delivered in the cloud or downloaded and installed on a universal CPE (uCPE) at the subscriber premise, Network Edge Orchestration (a.k.a. intelligent edge) is typically required to activate, configure, scale (up or down), monitor and control VNF-based virtualized enterprise-grade router / Internet access router services.

Virtual Access Router Terminology
Short Glossary of Related Acronyms
NFV - Network Function Virtualization
uCPE - Universal CPE
vCPE - Virtual CPE
NFV - Network Function Virtualization
VNF - Virtualized Network Function
SDN - Software Defined Networking
VM - Virtual Machine
CPE - Customer Premise Equipment
IaaS - Infrastructure as a Service
SaaS - Software as a Service

Common Virtual Router Synonyms and related terms
Virtual Router
Virtual Access Router
Virtual Enterprise Router
Virtual Network Router
Virtual Internet Router
Virtual Internet Access Router
Whitebox CPE
Bare Metal CPE
NFV CPE Virtual Operating System
Virtualization Technology
Virtual System
VMS software
Virtual Network
Hypervisor Cloud Computing
Server Virtualization
