All-IP Session Border Controllers
SmartNode VSN Virtual CPE: Software SBC, IP Access Router and VPN Server



SmartNodes are the leading and field-proven CPEs running Patton Proprietary OS. The software SBC employs the same feature-rich functionality in virtual environments for a high level of scalability and service availability.
Overview
Free Trial Patton’s Virtual SmartNode (vSN) is a software SBC that delivers the features you need for advanced voice network applications that need to be easily scaled up and down. At the same time, it eliminates hardware limitations which are required for the performance of the application.

The Virtual SmartNode provides the comprehensive SBC software feature set needed for you as an enterprise or service provider looking to virtualize your infrastructure.

Secure your VoIP infrastructure by encrypting signaling streams using the Virtual SmartNode.

DoS prevention, trust peer, toll fraud prevention, stateful firewall QoS, voice quality assessment and monitoring and much more, is part of the virtualized Patton SmartNode* as well as IP routing, including IPv4 and IPv6 networking features.

SmartNodes are the leading and field proven CPEs running Patton Proprietary OS. The same, feature rich software used on the purpose build hardware devices, is now implemented as a virtual edition SBC for a high level of scalability and service availability.

Applications
The Virtual SmartNode software SBC is designed to run in virtualized enterprise networks, telephony service provider datacenters, cloud provider infrastructure, etc. Addressing varying call capacity needs from clients can easily be done, scaling up and down the required licenses on the virtual SmartNode using a floating license model through the Patton Cloud. The Patton Cloud automatically distributes the obtained licenses to where they are needed (vSN and other Patton devices).

This SBC software with cloud orchestration enables you to easily scale up/down SBC services on the SmartNode  virtual edition SBC, but also on regular SmartNode devices.

Virtual SmartNode functional principle

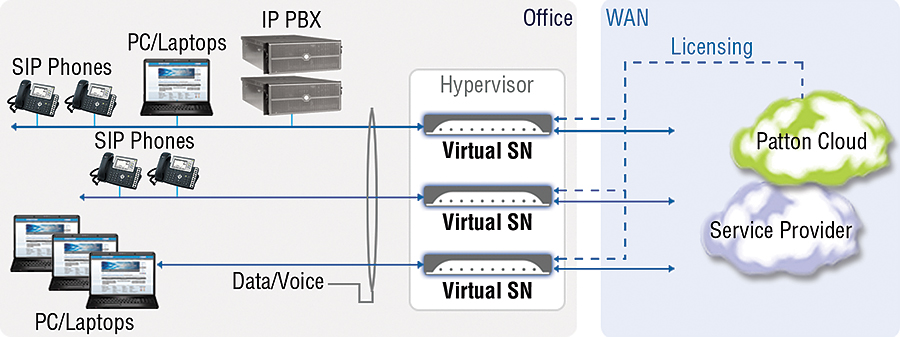

Virtual SmartNode application diagram


Use Cases
  Virtual SmartNode acting as SBC in SIP Trunking application

Virtual SmartNode SIP Use Case

Application details:
  • Usual eSBC features delivered to SME
  • LAN telephony protection
  • Service demarcation
  • SIP normalization
  • Quality of service
  • Survivability
  • Conversion:
    • SIP IPv4 to IPv6
    • SIP UDP to TCP
    • SIP TLS to UDP
Benefits:
    • Harmonized installation
    • No need for pCPE (purpose-built CPE)
    • Simplified installation
    • Scalable, flexible, reliable
    • High availability through virtualized hardware

Virtual SmartNode acting as SBC in Hosted PBX application

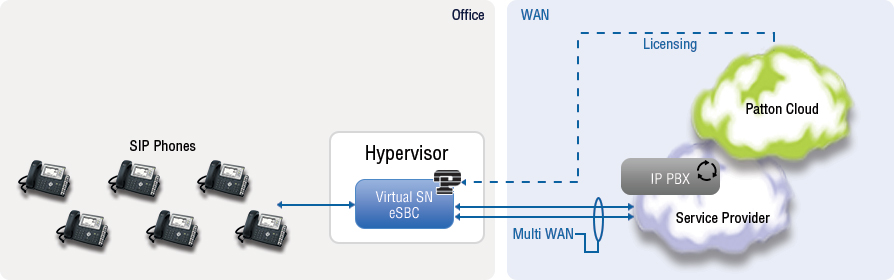

Virtual SmartNode Hosted PBX

Application details:
  • Service demarcation
  • SIP normalization & Interop
  • Quality of service
  • Survivability—Multi WAN
  • Station to station calling—WAN outage
  • Conversion:
    • SIP IPv4 to IPv6
    • SIP UDP to TCP
    • SIP TLS to UDP
Benefits:
  • Harmonized installation
  • No need for pCPE (purpose-built CPE)
  • Simplified installation
  • Scalable, flexible, reliable
  • High availability through virtualized hardware

Virtual SmartNode acting as IP Access Router

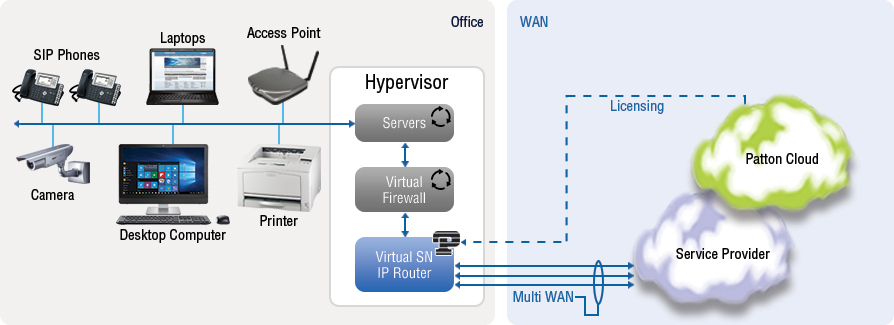

Virtual SmartNode IP Router

Application details:
  • Multi WAN link support & management
  • Load balancing
  • Survivability
  • High availability (HA)
  • Network address translation (NAT) & network address and port translation (NAPT)
  • DHCP server
  • Access control list (ACL)
  • IPv6 support
  • VRRP, GRE, RIP, BGP, etc.
Benefits:
  • Simple & automated setup
  • Scalable—You define the CPU and memory
  • Flexible—Adapts to customer needs
  • Add/remove features as needed
  • Central management through Patton Cloud

Virtual SmartNode acting as VPN Server

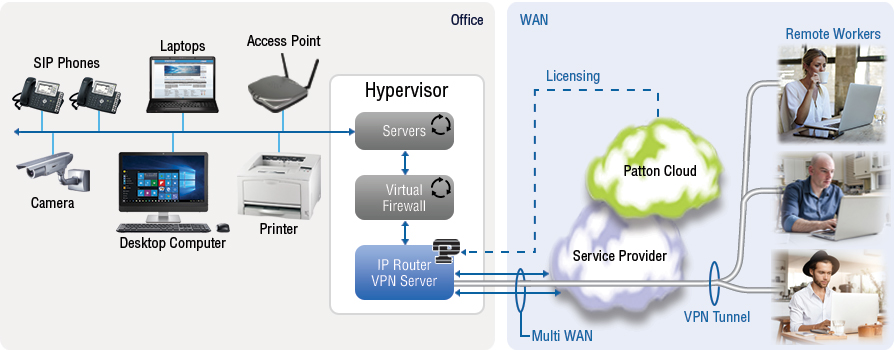

Virtual SmartNode VPN Server

Application details:
  • Secure remote workers, remote offices integration
  • VPN links termination & aggregation—IPsec (Client Side only*), OpenVPN
  • Access to main office infrastructure (printers, servers, etc.)
  • Multi WAN link support & management
  • Access right management
Benefits:
  • Simple setup
  • Scalable—You define the CPU and memory
  • Flexible—Adapts to customer needs
  • Add/remove features as needed
  • Central management through Patton Cloud
* IPSec Server Side on Roadmap

Virtual SmartNode acting as IPv4 to IPv6 Network Gateway

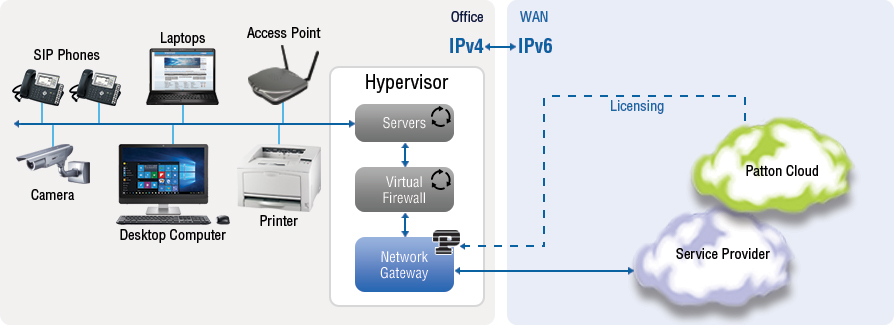

Virtual SmartNode IPv4 to IPv6 Network Gateway

Application details:
  • IPv4 to IPv6 interop
  • WAN—LAN network separation
  • Access control list (ACL)
  • Multi access link management (IPv4 or IPv6)
  • Dual Stack IPv4/IPv6
  • DHCPv4 & v6
  • Various routing protocol support
Benefits:
  • Simple setup
  • Scalable—You define the CPU and memory
  • Flexible—Adapts to customer needs
  • Add/remove features as needed
  • Central management through Patton Cloud


Features
  • VoIP Security - Network separation with SIP Back 2 Back UA, intrusion protection, DoS prevention, trust peer, Signaling encryption (SIP-TLS), Stateful Firewall
  • Session Control - Dynamic SIP Session allocation for a high number of calls. SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.
  • SIP Normalization - SIP-SIP Interworking – Normalizing different, vendor specific SIP implementations – “dialects”. Demarcation point, separation between networks
  • Network Monitoring & Assessment - Network monitoring probe* for QoS measurements and proactive alerting to minimize problems. SLA assurance at demarcation point
  • Load Balancing - Call load distribution across multiple network links.
  • IP Routing & Networking - IP Routing Protocol support; GRE, VRRP, RIP, L2TP, etc.
  • High Availability - Stateful call failover incl. proactive dead call detection. SBC redundancy and failover to secondary, virtual instances
  • Proprietary Software - Utilizes proprietary Trinity™ Software for added security

Ordering
Virtual SmartNode Use Cases

SIP Trunking
Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-1B Cloud Based Feature License (12 month) for 1 additional SIP Sessions (SIP back-to-back calls using 2 SIP Legs)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
CBFL-REG Cloud Based Feature License (12 month) to enable the SIP Registrar
Optional
CBFL-SIP-TLS Cloud Based Feature License (12 month) to enable SIP-TLS

Hosted PBX
Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-1B Cloud Based Feature License (12 month) for 1 additional SIP Sessions (SIP back-to-back calls using 2 SIP Legs)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
CBFL-REG Cloud Based Feature License (12 month) to enable the SIP Registrar
Optional
CBFL-SIP-TLS Cloud Based Feature License (12 month) to enable SIP-TLS

IP Router
Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
Optional
CBFL-VPN-TUN1 Cloud Based Feature License (12 month) to enable 1 VPN Session (OpenVPN, IPSec and L2TP)

VPN Server
Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
CBFL-VPN-TUN1 Cloud Based Feature License (12 month) to enable 1 VPN Session (OpenVPN, IPSec and L2TP)

IPv4 to IPv6 Network Gateway
Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
Virtual SmartNode All Licenses

Minimum Cloud Service Plan
CSP-C2E/STANDARD Standard Plan, single organization, 12 months, 10 managed devices included
Feature Licenses
CBFL-VSN Cloud Based Feature License (12 month) for running Trinity on one virtual machine (VM)
CBFL-1B Cloud Based Feature License (12 month) for 1 additional SIP Sessions (SIP back-to-back calls using 2 SIP Legs)
CBFL-IPR Cloud Based Feature License (12 month) to enable IP Packet Forwarding (routing)
CBFL-REG Cloud Based Feature License (12 month) to enable the SIP Registrar
CBFL-SIP-FAILOVER Cloud Based Feature License (12 month) to enable seamless outbound SIP call hunting
CBFL-SIP-TLS Cloud Based Feature License (12 month) to enable SIP-TLS
CBFL-VPN-TUN1 Cloud Based Feature License (12 month) to enable 1 VPN Session (OpenVPN, IPSec and L2TP)


vSN Install Images
 Virtualization System  Hypervisor  Virtual SmartNode Images
 VMWare ESXi  ESXi  VMDK
 VirtualBox  VirtualBox  VMDK, VDI
 Xen  Xen  VMDK
 Proxmox  KVM  QEMU (qcow / qcow2), RAW
 Hyper-V  Hyper-V  VHD, VHDX
