Products > 1001MP/2MPE View Printable

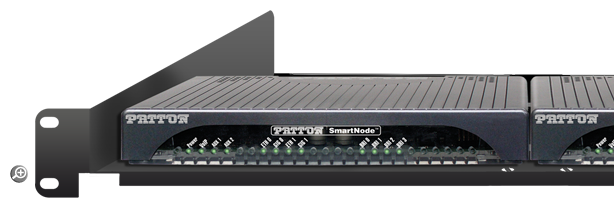

Universal Rack Mounting Panel
1001MP/2MPE

The Model 1001MP/2MPE is a Universal Mounting Panel offering the ability to rack up to 2 Patton products--medium-sized plastic enclosures (8.2w x 1.3h x 6.5d inch / 20.82w x 3.3h x 16.51d cm)--side by side. Products that are compatible with the 1001MP/2MPE include VoIP Products, Enterprise Session Border Controllers (eSBC), Ethernet Extenders, and Routers.

Overview
The sturdy 1U-high design easily installs into a 19-inch rack, where the Patton products can be professionally mounted. Simply turn one captive fastener per device to securely attach them both to the mounting panel.

Front or Rear-mounted connector ports
There are several mounting options as per the following examples.

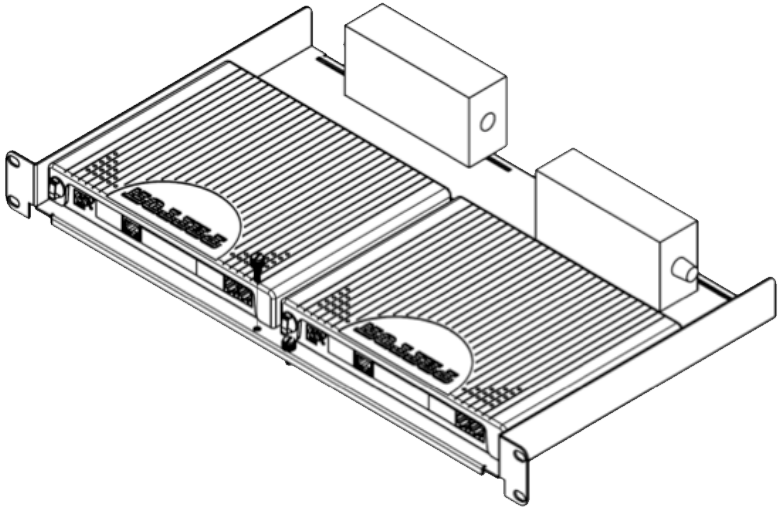

Up to 2 products can be mounted side by side on the 1001MP/2MPE. Figure 1 below shows them with the connectors facing to the front of the rack. At the same time, there is space for 2 desktop power supplies that can be affixed with the included cable straps.
Mounting option – Connectors front

Mounting option – Connectors front

Figure 1 - Products with Connectors facing front

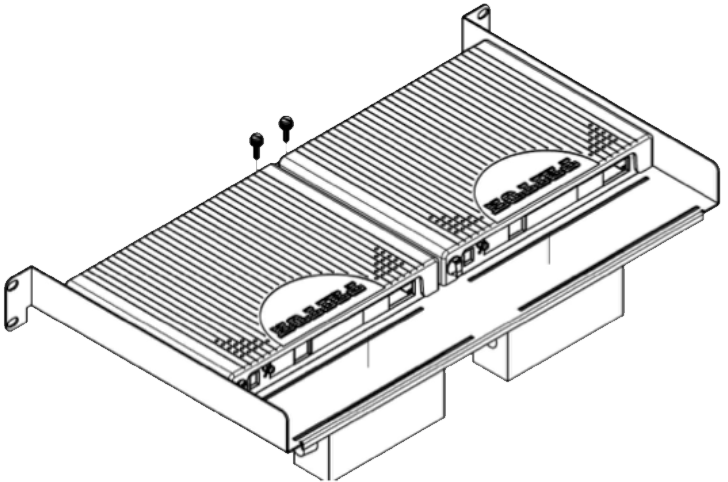

Depending on how the rack is organized, the products can also be affixed with the connectors facing rear, as indicated in figure 2.

Mounting option – Connectors rear

Mounting option – Connectors rear

Figure 2 - Products with connectors facing rear

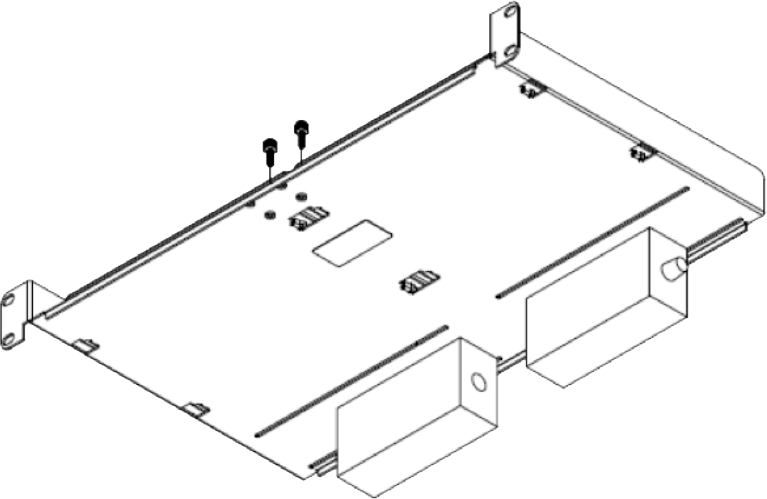

If in such a case desktop power supplies have to be used as well, they may be affixed on the underside of the 1001MP/2MPE, shown in figure 3 below.

Figure 3 - Power Supplies mounted underneath

Features

Rack mounting solution for professional installations of CPEs
Saves rack space – 1U for 2 products
Includes cable straps for attaching power supplies
Easy to install
Robust metal construction with durable black powder coating

Ordering

#	Model #	Description	Availability
1	1001MP/2MPE	19 inch Rack mount kit, holding 1 or 2 Patton devices in medium plastic enclosure (E.g. SN553X/2-4BIS, SN4131X/2-4BIS, SN554X non WAN, SN414X, SN415X/2BIS2JS, SN5501, SN5571 non WAN, SN417X, OS3300, etc.)	General Availability
