Overview
The FOI-2990 series provide electrical isolation and extension of control signals and relay closures. Multimode optics on the units can extend the distance to 2km. The units can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI.

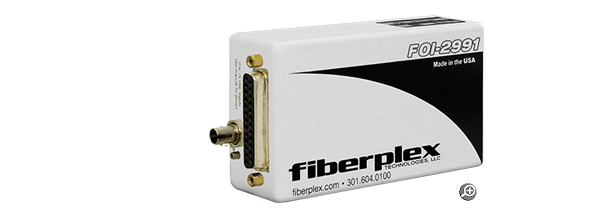

The units are uni-directional. The FOI-2991 and FOI-2992 can accept up to 12 individual control signals. The FOI-2991 and FOI-2992 are optical transmitters, while the others are optical receivers. Both the FOI-2991 and FOI-2992 can accept up to 12 individual control signals. The FOI-2991 can only accept a DC voltage of 0 to +5V, while the FOI-2992 can accept either a DC or AC voltage of +12 to +24V. The FOI-2993 has 12 SPST Form A relays, and the FOI-2994 has 8 SPDT Form C relays. The FOI-2993 and FOI-2994 are latching and the FOI-2995 and FOI-2996 are non-latching.

During power interruptions or failures, the relays on the FOI-2993 and FOI-2994 will hold the last commanded state until powered is restored and the relays are commanded differently, while the FOI-2995 and FOI-2996 will revert to the open state.

Applications

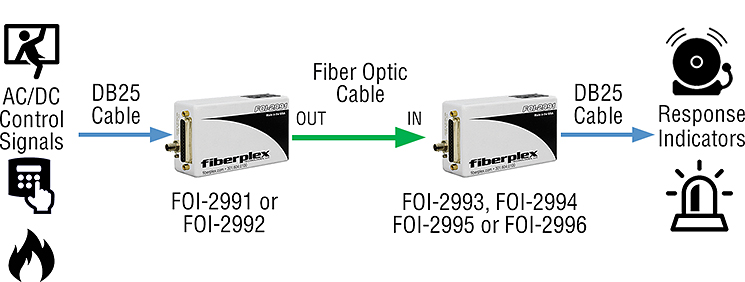

A typical link consists of either an FOI-2991 or an FOI-2992 at one end of the network transmitting optical signals to an FOI-2993 or an FOI-2994 at the other end of the network with a single fiber optic cable between.

Features

• Isolation and extension of Control Signals over Fiber
• Rugged Military style enclosure with standalone and various rack and mounting options
• Rugged metal enclosures with RFI shielding

Ordering

# Model # Description Availability 1 FOI-2994-Z-ST Isolator for control signal output, 8 circuit, latching relay form C contacts (channel 8 does not latch), multimode ST optics (RX only), Power Options Sold Separately Special Order    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-2909   (Qty: 1) Easy-On Power Supply for size 2 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-2920   (Qty: 1) Power Supply for 2000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators
