Copper SFP Modules

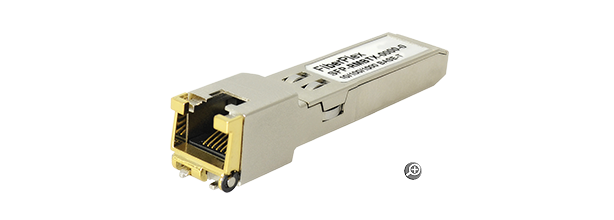

FiberPlex SFP-RT SFP module with RJ45 copper interface for Ethernet connectivity



The SFP-RT Series are Copper Ethernet SFP supporting either 10/100 or 10/100/1000 Ethernet connectivity


Overview
The SFP-RT series are high performance Copper SFP transceivers are Gigabit Ethernet and 10/100/1000BASE-T compliant, supporting 1000 Mbps data-rate up to 328 feet (100 meters) reach over unshielded twisted-pair CAT 5 cable.

The SFP-RTGTXC (10/100/100) and SFP-RTMTXC (10/100) are Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the Ethernet BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The SFP-RTGTXC supports 1000 Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. Use the SFP-RTMTXC for 10/100-BASE-T applications when connecting to Gigabit auto negotiating ports.

Applications

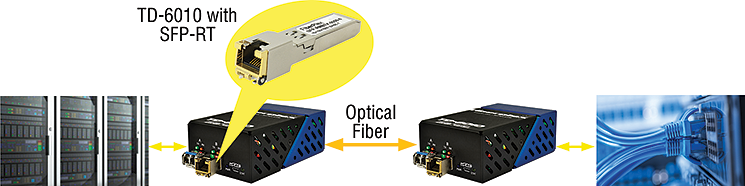

SFP-RT applications


Features
  • Up to 1.25 Gbps bi-directional data links
  • 1000BASE-T operation in host systems with SERDES interface
  • 10/100/1000 Mbps compliant in host systems with SGMII interface
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly

Ordering
# Model # Description Availability
1 SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA General Availability
2 SFP-RTMTXC-0000-0 SFP, RJ45, Copper 10/100 Ethernet Transceiver, MSA General Availability
