FiberPlex TKIT-3G SDI Fiber Converter Kits | Extend HD Video over Fiber

Overview

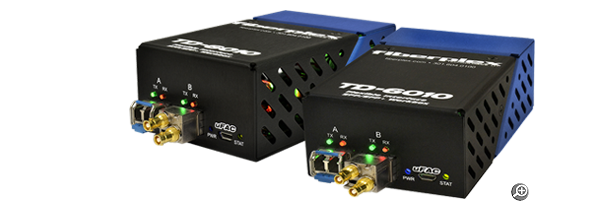

Manufactured in the USA, the FiberPlex TKIT bundles from Patton leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific SDI Fiber Converter application.

The TKIT-3G SDI Fiber Converter and Extender kit extends 3G-SDI HD video over fiber. The SDI Fiber Converter encodes and decodes digital video signals over 75O coaxial cables via HD-BNC™ connectors and transmits them over fiber.

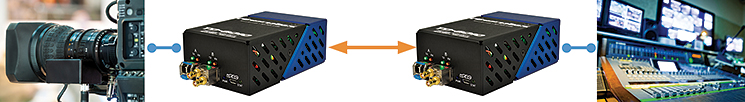

Applications

Features

• SMPTE 424M, SMPTE 344M, SMPTE 292M and SMPTE 259M compliant
• Integrated Reclocker and Cable Driver
• Supports DVB-ASI at 270Mb/s
• Supports Audio in SDI stream
• Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• AC Power Adapter Included

Ordering

# Model # Description Availability 1 TKIT-3GT2-S TD-6012 (Pair) 3GSDI Video to Singlemode Optical Conversion, Dual Channel, Video Optimized, 1310nm, LC, 20km, Includes AC  Power Adapters Special Order    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-3GXC-M TD-6010 (Pair) 3GSDI Video to Multimode Optical Conversion, Transceiver, Video Optimized, 1350nm, < 500m, LC, Includes AC Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 3 TKIT-3GXC-S TD-6010 (Pair) 3GSDI Video to Singlemode Optical Conversion, Transceiver, Video Optimized, 1310nm, LC, 20km, Includes AC  Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
