Pro-AV Extender/Converter Kits
FiberPlex TKIT-MODE Fiber Optic Mode Converter Kits

Overview

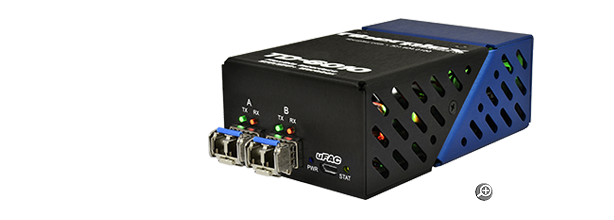

The  FiberPlex TKIT single-mode-to-multimode fiber converter bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundle it with a set of application-specific SFP modules to create a simple, easy-to-order solution for your exacting requirements.

The TKIT-MODE series is a multimode-to-singlemode fiber converter solution that protects your investment in legacy multimode fiber and updated singlemode equipment. These single-mode-to-multimode fiber converter kits are available in 155 Mbps, 1.25 Gbps, and broad range 50 Mbps to 3 Gbps.

Applications
Multimode to singlemode conversion.

Features

• Connect your multimode and singlemode systems together seamlessly
• Preserves the life of your fiber equipment and/or fiber plant
• No configuration required
• Supports a wide range of data rates
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• AC Power Adapter Included

Ordering

# Model # Description Availability 1 TKIT-MODE-155 TD-6010 (1ea) Optical Mode Conversion, Multimode to Singlemode, 155 Mbps, 1310nm,LC, Includes AC  Power Adapter Special Order    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-MODE-1G TD-6010 (1ea) Optical Mode Conversion, Multimode to Singlemode, 1.25Gbps, 1310nm, LC, Includes AC  Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL 25000003   (Qty: 1) Wall Mount Power Supply Adapter; 100-240VAC; 12V, 2A, 2.5mm plug Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 3 TKIT-MODE-3G TD-6010 (1ea) Optical Mode Conversion, Multimode to Singlemode, 50 Mbps - 3 Gbps, 1310nm, LC, Includes AC  Power Adapter Special Order    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
