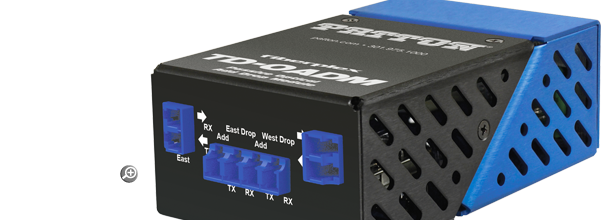

FiberPlex TD-OADM Optical Add/Drop Multiplexer



TD-OADMs are a cost effective method for removing and rerouting individual wavelengths from your main fiber trunk to specific destinations.

Overview
The FiberPlex TD-OADM is an optical add/drop mux used in WDM (wavelength-division multiplexing) systems for multiplexing and routing different channels of light into or out of a single mode fiber (SMF). A dedicated wavelength is assigned to any kind of voice, video or network traffic.

Each optical channel (light wave) is completely transparent to traffic type, protocol and compression scheme. OADMs are commonly used in point-to-point, linear, ring, star, and mesh topologies for a large variety of applications. This device is ideal for secure networking, including SCIF communications infrastructure.

Applications

Typical Application

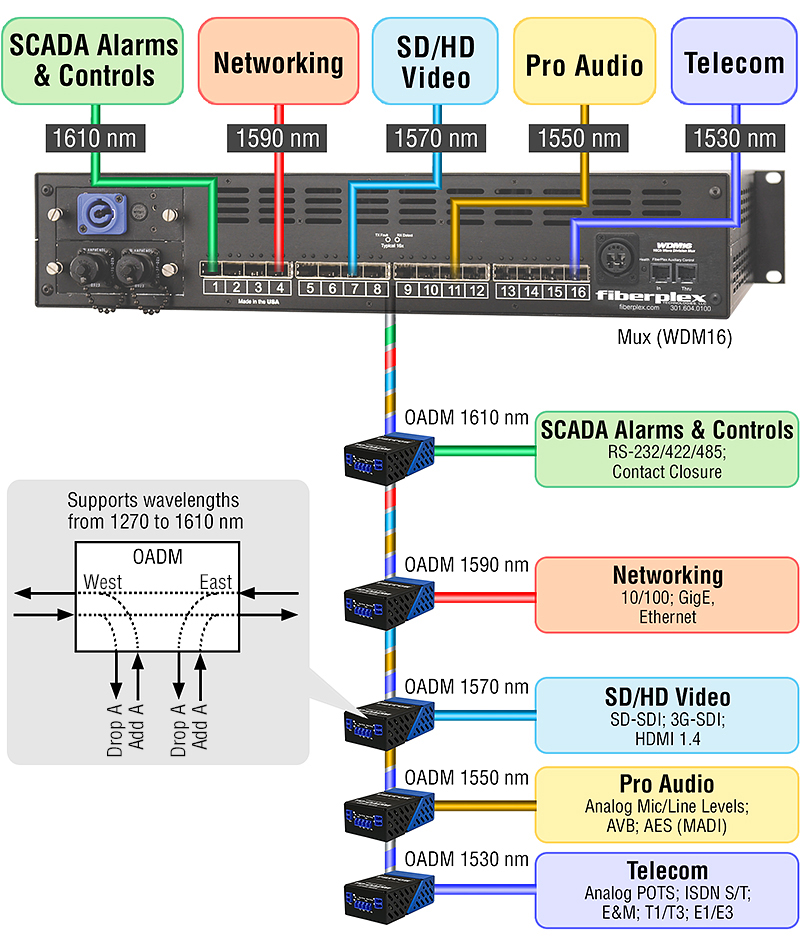

FiberPlex™ TD-OADM application diagram




Features
  • Primary applications:
    • Metro Area Networks (MANs)
    • Mobile Fronthaul & Backhaul
    • Audio/Video Distribution
    • Broadcast Audio
    • Campus Networking
    • Video Surveillance

  • Wavelength—Full ITU-T G.694.2 spectrum grid support (1270 to 1610 nm).
  • Isolation—East/West operation with 2 x TX/RX connections for center wavelength.
  • Power—Completely passive operation
  • Extended Temperature— 23 to 149°F (-5 to 65°C) operation.

Ordering
# Model # Description Availability
1 TD-OADM-3100L Optical Add-Drop Module (1310 nm); single channel Available to Order; Coming Soon

 Accessories
2 TD-OADM-3300L Optical Add-Drop Module (1330 nm); single channel Available to Order; Coming Soon

 Accessories
3 TD-OADM-3500L Optical Add-Drop Module (1350 nm); single channel Available to Order; Coming Soon

 Accessories
4 TD-OADM-3700L Optical Add-Drop Module (1370 nm); single channel Available to Order; Coming Soon

 Accessories
5 TD-OADM-3900L Optical Add-Drop Module (1390 nm); single channel Available to Order; Coming Soon

 Accessories
6 TD-OADM-4100L Optical Add-Drop Module (1410 nm); single channel Available to Order; Coming Soon

 Accessories
7 TD-OADM-4300L Optical Add-Drop Module (1430 nm); single channel Available to Order; Coming Soon

 Accessories
8 TD-OADM-4500L Optical Add-Drop Module (1450 nm); single channel Available to Order; Coming Soon

 Accessories
9 TD-OADM-4700L Optical Add-Drop Module (1470 nm); single channel Available to Order; Coming Soon

 Accessories
10 TD-OADM-4900L Optical Add-Drop Module (1490 nm); single channel Available to Order; Coming Soon

 Accessories
11 TD-OADM-5100L Optical Add-Drop Module (1510 nm); single channel Available to Order; Coming Soon

 Accessories
12 TD-OADM-5300L Optical Add-Drop Module (1530 nm); single channel Available to Order; Coming Soon

 Accessories
13 TD-OADM-5500L Optical Add-Drop Module (1550 nm); single channel Available to Order; Coming Soon

 Accessories
14 TD-OADM-5700L Optical Add-Drop Module (1570 nm); single channel Available to Order; Coming Soon

 Accessories
15 TD-OADM-5900L Optical Add-Drop Module (1590 nm); single channel Available to Order; Coming Soon

 Accessories
16 TD-OADM-6100L Optical Add-Drop Module (1610 nm); single channel Available to Order; Coming Soon

 Accessories
