Waveguide Extensions/Accessories
FiberPlex WET PVC Extension tubes for use with WGF series waveguides



Waveguide Extension Tubes (WET) enable easier pass-through of fiber through walls up to 18 inches (45.7 cm) thick.


Overview

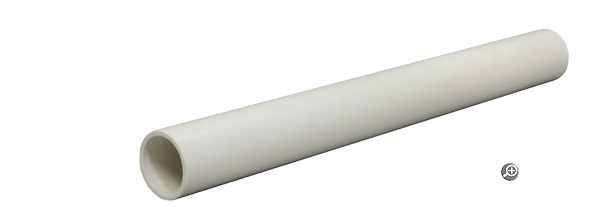

Waveguide Extension Tubes are made of PVC, are 18 inches (45.7 cm) long, and are internally threaded. They attach directly to Waveguide Filters without the need for a separate coupling nut.

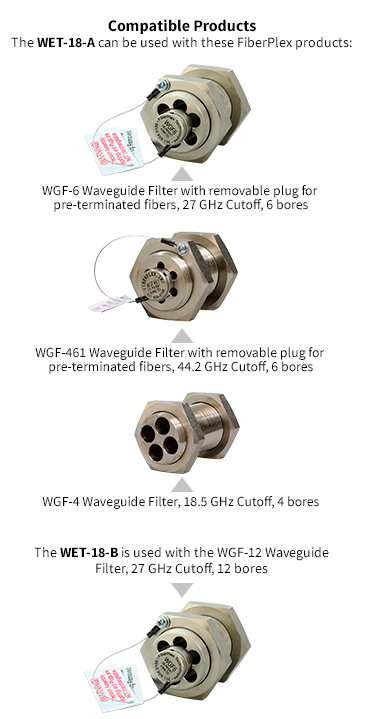

The WET-18-A (which has an internal body thread size of 1-1/8 inch, 18 NEF) fits the WGF-6, WGF-461 and WGF-4.

The WET-18-B (which has an internal body thread size of 1-5/8 inch, 20 NEF) fits the WGF-12.

Note: If you are installing a WGF into a wall that is up to 2.51 inches (6.38 cm) thick, consider the Waveguide Extension Nut (WEN) which provides an extension solution that maintains the mathematically calculated dimensions of the waveguide while creating a flush-mounted solution. Or if you are installing a WGF into a wall that is up to 12 inches (30.5 cm) thick, consider the Brass Waveguide Extension Tube (WEB).

Features
  • Extension tubes for WGF Waveguide filters
  • Allows for easier routing of fiber through thick walls

Ordering
# Model # Description Availability
1 WET-18-A Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides (does not require coupling nut) General Availability
2 WET-18-B Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.625 in, 20 NEF, for extending WGF-12 Waveguide (does not require coupling nut) General Availability
