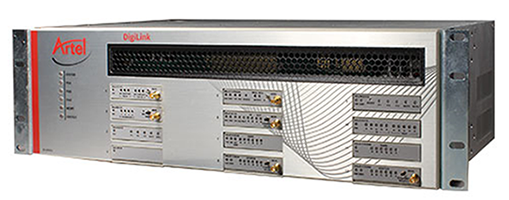

Artel DigiLink DL4360x DigiLink Media Transport Chassis

The DigiLink DL4360x is a NEBS Level 3 Cerified, broadcast-quality IP and fiber-based, modular media transport platform with active routing and switching capabilities for transporting video, audio, and data.

• Space efficient: 4 function modules per RU, 10.5” deep
• Stackable non-spaced deployment. Side and front-to-rear cooling.
• Low power
• Quiet operation with variable fans
• Rugged and reliable, NEBS Level 3 Certification (DL4360x, DL4000)
• Integrated SNMP or HTTP monitoring and management
• Internal video and Ethernet communication eliminates external cross connect cabling and provides for remote routing and configuration
• Dual AC, DC, or one of each hot-swappable power supplies (DL4360x, DL4000)

• NEBS Level 3 (DL4360x, DL4000)
• GR-63
• GR-1089
• CSA 60950
• EN60950
• FCC Part 15 (Class A)
• CISPR 22

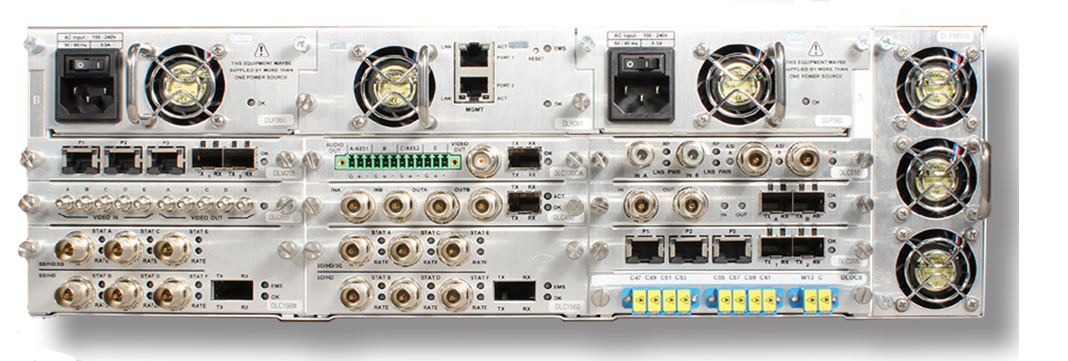

DL4360x Rear View

DL4360x features an advanced design combining modular-based transport functions with internal routing capabilities for video and Ethernet traffic. By eliminating external cross connects while staying in native video or Ethernet format, the DL4360x with the DLX001 Switching and Routing Module streamlines routing and rerouting of video and Ethernet traffic, reducing operational expenses, and providing an ideal solution for remote sites where immediate and timely reconfiguration is required via EMS or NMS.

Designed specifically to meet the unique requirements of broadcast video transport, DigiLink features multi-purpose, single-piece function modules, external optics in all standard wavelengths, and front panel accessible status LEDs and video monitor ports for each module. NEBS Level 3 Certification across the entire platform ensures it is the most rugged and dependable video transport platform ever developed.

The DigiLink Platform

DigiLink is a state-of-the-art modular platform leveraging Artel’s 30 years of carrier-class video transport experience.  DigiLink is specifically designed to meet the need for a rugged, and simplified design for transporting broadcast-quality video and Ethernet across IP networks, direct fiber, and optical backbones.

The most deployed solution for the North American metro-regional video-over-fiber market, DigiLink is used by all major broadcasters and networks for their critical contribution feeds for major sporting, news, and live events.  DigiLink is the industry’s gold standard for simplicity of design, legendary reliability, and cost-effectiveness.  A tightly integrated platform, it also offers uncompressed video-over-IP transport, integrated video and Ethernet switching.

Other DigiLink chassis available from Artel:

DL4000 – 1 RU 4 slot, dual AC or DC power with HTTP/SNMP management and routing

DL4100 – Single Slot Chassis with External AC Power
