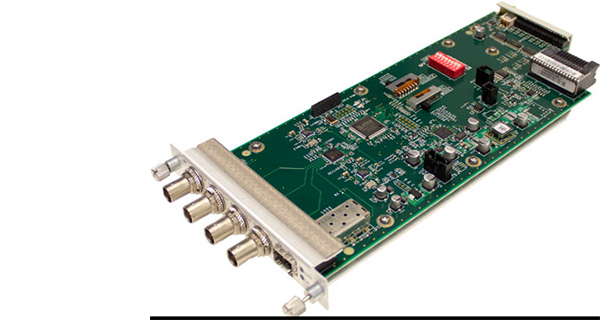

Patton DigiLink DLC103

Overview

The DLC103 is a flexible, cost-effective, bi-directional fiber optic transport module for all digital video formats ranging from 19.39 Mb/s to 2.97 Gb/s. The single-module DLC103 is user configurable to function as a transmitter, receiver, transceiver, repeater, or 4-channel distribution amplifier.

The DLC103 can be deployed in all DigiLink chassis. Optics are industry standard, externally accessible transceiver SFPs in 1310 nm, 1550 nm and 18 CWDM wavelengths. All of these features add up to make the DLC103 the most flexible, easy-to-deploy, and reliable single channel digital video optical transport module ever developed.

Applications

Features

Single card configurable as:

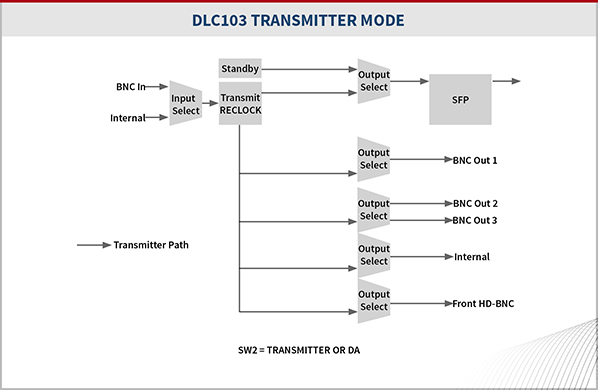

Transmit (electrical to optical).

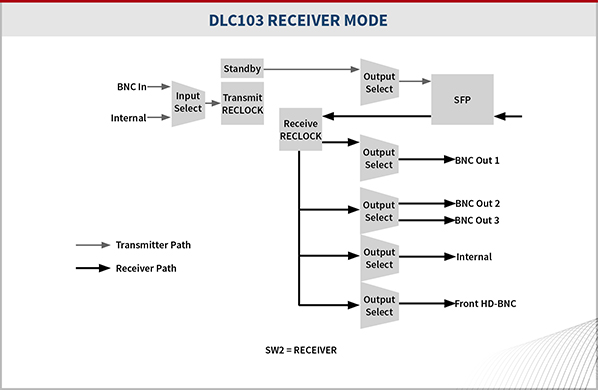

Receive (optical to electrical).

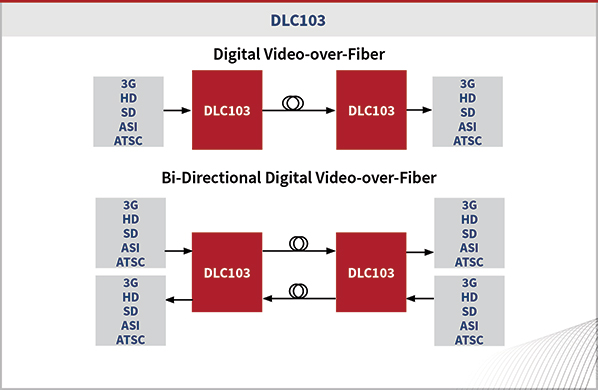

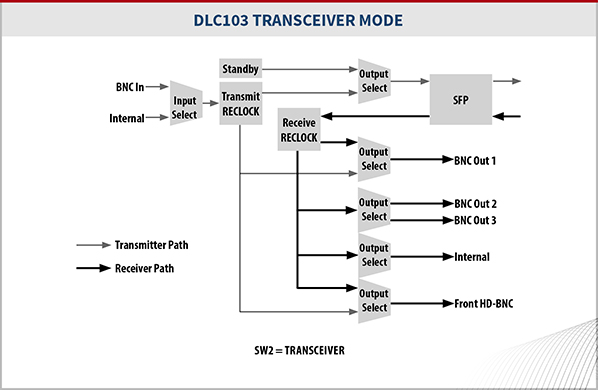

Bi-directional (independent transmit and receive).

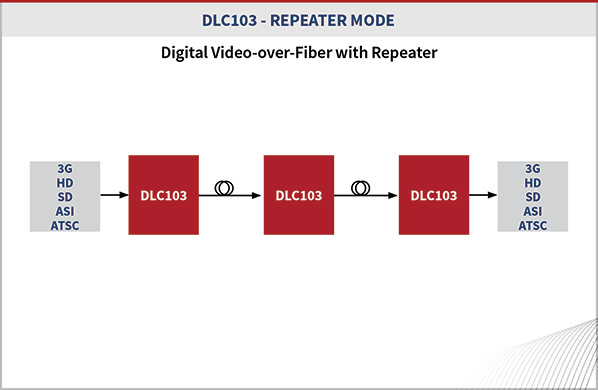

Repeat/Regenerate (optical to optical).
4-channel distribution amplifier.

Automatic rate selection of all digital video formats.

2.967 Gb/s 3G-SDI (SMPTE 424M).
1.485 Gb/s HD-SDI (SMPTE 292M).
270 Mb/s.
SD-SDI (SMPTE 259M-C, ITU 656).
SDTI (SMPTE 305M).
DVB-ASI.
19.39 Mb/s ATSC (SMPTE 310M).

Externally accessible SFP transceiver optics.

Optical budget to 30dB.
WDM (1310 nm, 1550 nm).
CWDM ITU G.694.2 (channels 1271-1611).

Inputs/outputs.

Optical via SFPs.
Electrical input (1) and outputs (3) via 75 ohm BNC.
Input from and output to other modules in DigiLink chassis (via backplane).

Multiple monitor options.

Front panel monitor selectable between optical input and optical output (HD-BNC).
Front and rear panel status LEDs.

Remote management via DL-Manager.

No external software required.
HTTP or SNMPv2.
Monitor.
Configure.
Upgrade firmware.

NEBS Level 3 Certified.

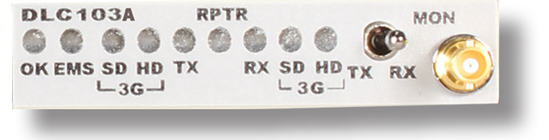

DLC103 Front Panel Status LED Display

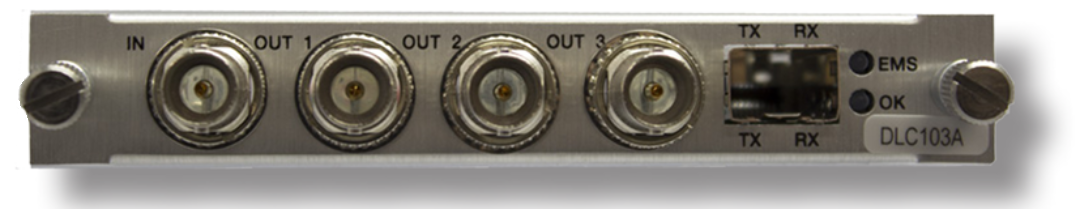

DLC103 Rear Panel (includes one electrical Input, three electrical outputs, and SFP transceiver cage)

Ordering

#	Model #	Description	Availability
1	390-008215-00	DigiLink, Model DLC103, Multi-Rate, Multi-Function Digital Video Optical Transceiver/Repeater for 3G, HD-SDI, SD-SDI, ASI	Pre-Order Available
Accessories
2	396-001010-72	DigiLink, Model DL100HDMC-72, Monitor Cable, 75-OHM HD-BNC to BNC, 72"L	Pre-Order Available
