Multi-Channel Digital Video Over Fiber
Artel DigiLink DLC105 SFP Media Access and Fiber Transport Module

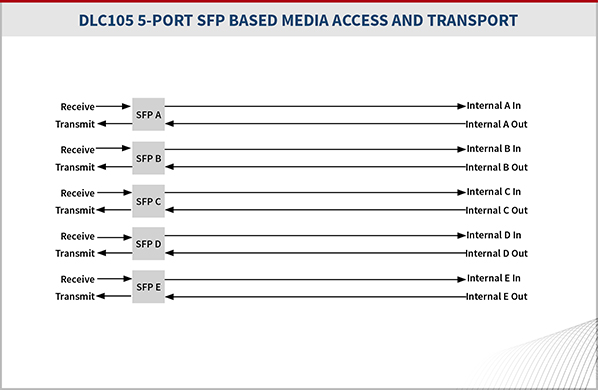

The DLC105 media access module features five bi-directional SFP cages for use as a media access point to the DigiLink chassis. These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each. The DLC105 provides flexible media access to DigiLink chassis for routing, transport, and DA applications.

Overview

The DLC105 provides flexible media access to DigiLink chassis for routing, transport, and DA applications.

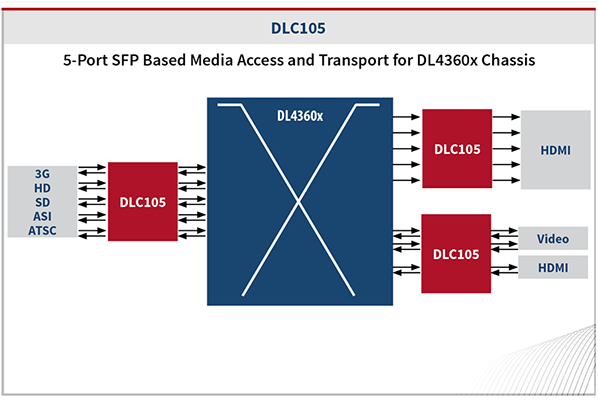

The DLC105 media access module features five bi-directional SFP cages for use as a media access point to the DigiLink chassis. These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each. The module can be deployed in the DigiLink DL4360x chassis with the DLX001 Switching and Routing Module to create a flexible 60x60 optical and electrical video router or for DA applications, or combinations for both.

Combining the DLC105 with transport and format conversion modules in the DigiLink chassis creates a cost and space effective solution for transport centric processing and routing of broadcast quality video signals.

Applications

Features

Flexible SFP access to DigiLink chassis.

Optical
Electrical video (HD-BNC)
HDMI

Uses industry standard SFP optics.

Optical budget to 30dB
WDM (1310nm, 1550nm)
CWDM ITU G.694.2 (Channels 27-61)

Supports all standard video formats.

2.967 Gb/s 3G-SDI (SMPTE 424M)
1.485 Gb/s HD-SDI (SMPTE 292M)
270 Mb/s
SD-SDI (SMPTE 259M-C, ITU 656)
SDTI (SMPTE 305M)
DVB-ASI
19.39 Mb/s ATSC (SMPTE 310M)

Re-clocked video to reduce jitter.

Front and rear panel status LEDs.

NEBS Level 3 Certified.

DLC105 Front Panel Status LED Display

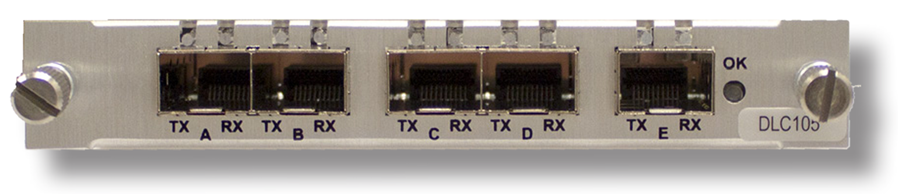

DLC105 Rear Panel (SFP transceiver cages and status LEDs)

Ordering

#	Model #	Description	Availability
1	390-009120-00	DigiLink, Model DLC105, 5 Port SFP Based Media Access and Transport	Pre-Order Available
