Patton DigiLink DLC205

Overview

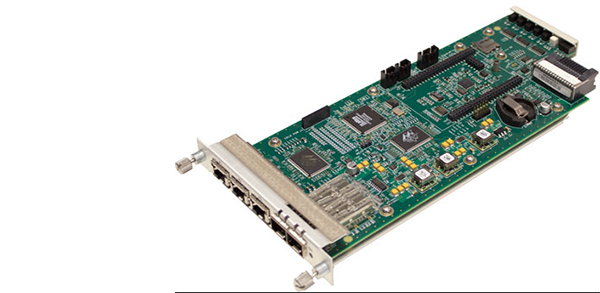

The innovative design of the DLC205 Gig-E Aggregator and Optical Transceiver enables users to aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot DigiLink module.

The module is fully nonblocking with a total capacity of 18 Gigabits of traffic and each port independently supports 10/100/1000 Ethernet. The four internal ports can be linked to other modules in a DigiLink chassis to provide internal Ethernet connectivity eliminating the need of external cabling. The DLC205 can be monitored and managed using DigiLink’s DL-Manager Element Management System.

Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the DLC205 Gig-E Aggregator is compatible with all DigiLink chassis providing a simple, reliable, and low-cost solution for transporting video centric traffic and chassis management across Ethernet networks.

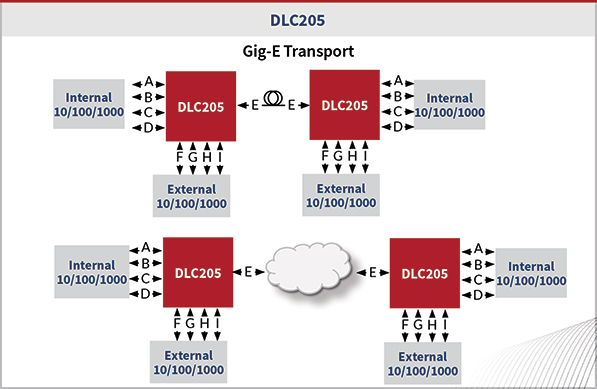

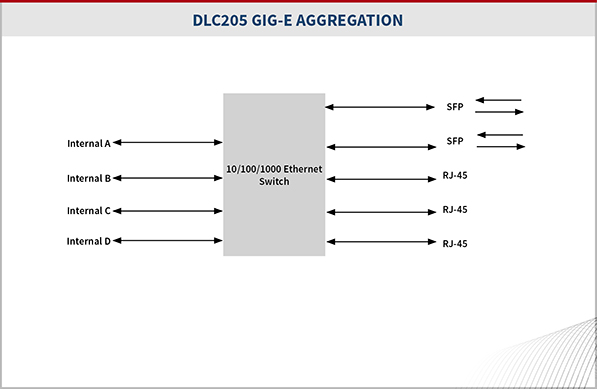

Applications

Features

Aggregate up to nine 10/100/1000 Ethernet links.

Non-blocking 18 Gigabit of switching capacity.

Provides optical or electrical transport of:

10Base-T
100Base-TX
1000Base-T
Ethernet standard

Supports all types of Ethernet traffic.

10/100/1000 auto negotiate
Auto MDI/MDI-X
Auto full-duplex and half-duplex
VLAN capabilities

Externally accessible SFP transceiver optics.

Optical budget to 33dB
WDM (1310nm, 1550nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)

Front and rear panel status LEDs.

Major/minor alarms
Link status
Activity

Statistics per RFC 2819 Standard.

Simple and rugged design.

Plug and play design requires no pre-deployment configuration
Monitor, manage, and review statistics using DL-Manager or SNMPv2
NEBS Level 3 Certified ensures reliable operation in harsh environments

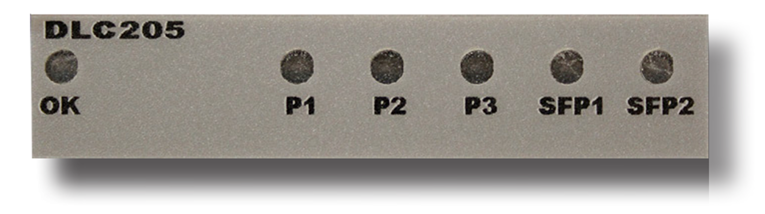

DLC205 Front Panel Status LED Display

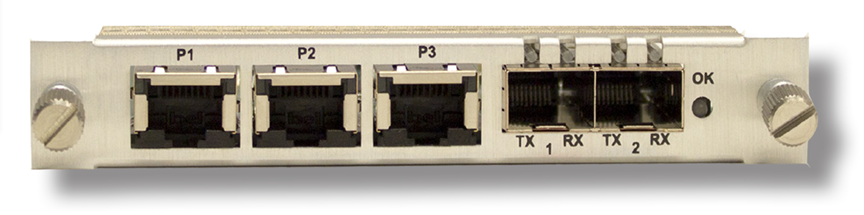

DLC205 Rear Panel (Three Ethernet RJ-45 and Two Ethernet SFPs)

Ordering

#	Model #	Description	Availability
1	390-008105-00	DigiLink, Model DLC205, 9 port Gig-E Aggregator and Optical Transceiver	Pre-Order Available
