Overview

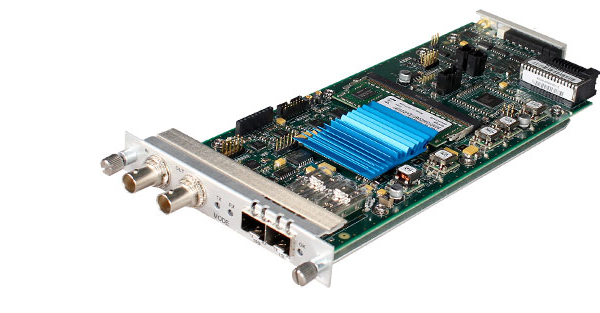

The DLC450 utilizes SMPTE 2022-1/2 or 5/6 Video-Over-IP Standards for transport of HD/SD-SDI, ASI video and includes a Gig-E IP interface to bridge IP data over the 10 Gig Ethernet IP interface.
Integrating seamlessly within the
DigiLink platform, the DLC450 module is customer configurable via
DigiLink Manager or via SNMPv2 as either a Video-Over-IP Transmitter (TX mode) or a Video-Over-IP Receiver (RX mode).

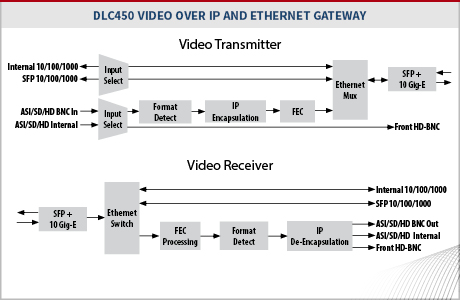

In TX mode, the DLC450 packetizes the video to SMPTE 2022-6 or 2022-2 encapsulation standards and provides users with flexible SMPTE 2022-5 or 2022-1 FEC configurations to maximize reliability and minimize latency and overhead.
In RX mode, its robust multi-pass FEC correction algorithm and user configurable packet buffering enable reliable performance over less than ideal Ethernet links.
The DLC450 sets the bar for flexible, reliable, and easy-to-configure HD/SD-SDI, ASI, and Gig-E transport over IP.

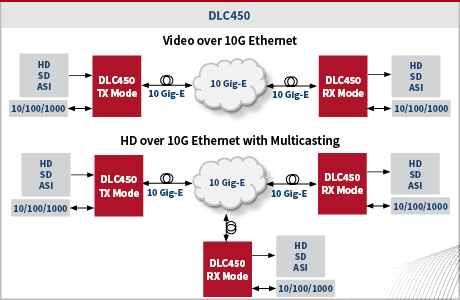

Applications
Features
Video-Over-IP Transport of HD/SD-SDI and ASI.
Single module user configurable as a transmitter or receiver.
Fully transparent carriage of HD/SD-SDI, and ASI including audio and ancillary data.
Gig E data bridged over 10G interface.
Automatic rate selection.
- 270 Mb/s SD-SDI (SMPTE 259M-C, ITU 656).
- 1.485 Gb/s HD-SDI (SMPTE 292M).
- DVB-ASI.
Standards-based encapsulation and forward error correction.
- SMPTE 2022-6 IP Encapsulation of HD and SD SDI.
- SMPTE 2022-2 IP ENCAPSULATION of DVB-ASI.
- SMPTE 2022-5 FEC recovers lost, damaged, or delayed packets of HD and SD SDI.
- SMPTE 2022-1 FEC recovers lost, damaged or delayed packets.
Flexible user configurable FEC and buffering setting.
- Selectable transmitter row and column Forward Error Correction settings.
- Selectable receiver buffering.
- Designed to withstand burst outages in excess of 3 ms.
Supports unicast or multicast streaming.
Externally accessible SFP+ transceiver.
- WDM (1310 nm, 1550 nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Externally accessible SFP transceiver.
- Optical budget to 33dB
- WDM (1310nm, 1550nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Front panel HD-BNC monitor.
1G Ethernet SFP Electrical/Optical Interface
Auto-Negotiable to 10/100/1000.
Configure, monitor, and manage via on-board DigiLink Manager or SNMPv2.
Low power design consumes a single function slot in a DigiLink chassis.
