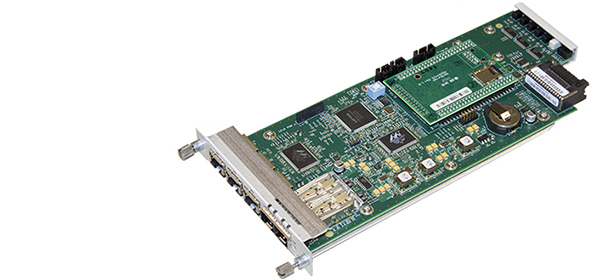

Artel DigiLink DLM205 Gig-E Aggregator and Optical Transceiver w/ On-Board Chassis Management

Overview

The DLM205 combines a 9 port non-blocking Ethernet switch and aggregator with DL4000 chassis management capabilities.

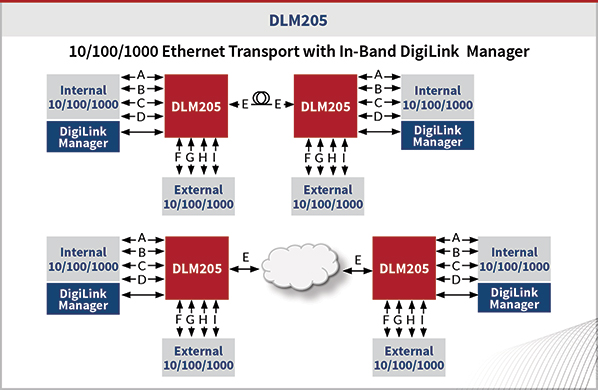

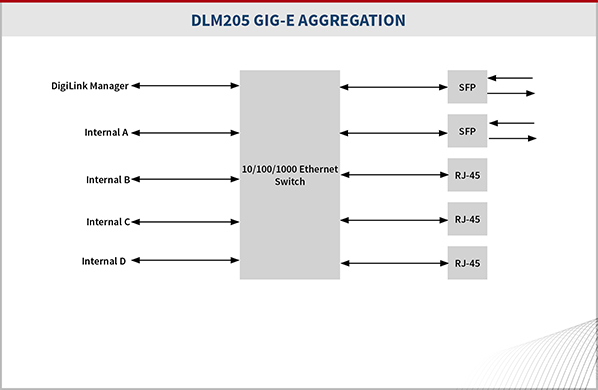

The innovative design of the DLM205 enables users to manage and monitor DL4000 chassis as well as aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot DigiLink module. The module is fully non-blocking with a total capacity of 18 Gigabits of traffic plus chassis management and each port independently supports 10/100/1000 Ethernet. The four internal ports can be linked to other modules in a DigiLink chassis to provide internal Ethernet connectivity eliminating the need of external cabling.

Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the DLM205 is a simple Gig-E aggregator compatible with all DigiLink chassis. When used in a DL4000 chassis an additional channel is enabled that includes capabilities to manage, monitor, and configure a chassis via DigiLink Manager HTTP browser based EMS or SNMP. The DLM205 provides a simple, reliable, and low cost solution for transporting video centric traffic and chassis management across Ethernet networks.

Applications

Features

• 10Base-T
• 100Base-T
• 1000Base-T
• Ethernet Standard

In-band management of DL4000 chassis.

• 10/100/1000 auto negotiate.
• Auto MDI/MDIX.
• Auto full-duplex and half-duplex.
• VLAN capabilities.

Externally accessible SFP transceiver optics.

• Optical budget to 33dB
• WDM (1310nm, 1550nm)
• CWDM ITU G.694.2 (Channels 27-61)
• DWDM ITU G.694.1 (Channels 21-60)

Front and rear panel status LEDs.

• Major/minor alarms
• Link status
• Activity

Statistics per RFC 2819.

• Plug and play design requires no pre-deployment configuration.
• Monitor, manage, and review statistics using DigiLink-Manager or SNMPv2.
• NEBS Level 3 Certified ensures reliable operation in harsh environments.

Ordering

# Model # Description Availability 1 390-008106-00 DigiLink, Model DLM205, 9 port Gig-E Aggregator and Optical Transceiver with On-Board Chassis Management Pre-Order Available
