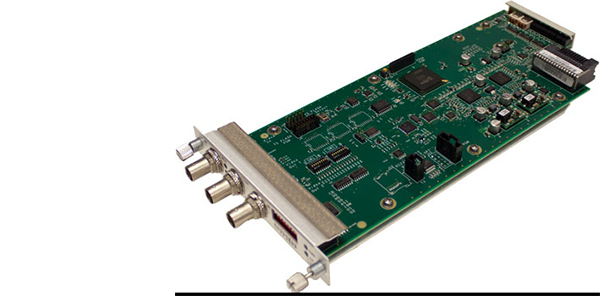

Patton DigiLink DLT710

Overview

Artel’s DLT710 Digital Video Generator and Tester is an innovative, DigiLink based solution for simple, automatic link verification of serial digital video formats. Functioning as both a signal generator and test monitor for 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and ATSC, the DLT710 is ideal for automatic verification of single or multi-format video links.

A universal digital video link test and verification module, the DLT710 provides complete, one-touch “go-no-go” performance testing for all common video rates and formats. Its unique design allows for one or more formats to be selected simultaneously enabling automatic verification of multi-format video links.

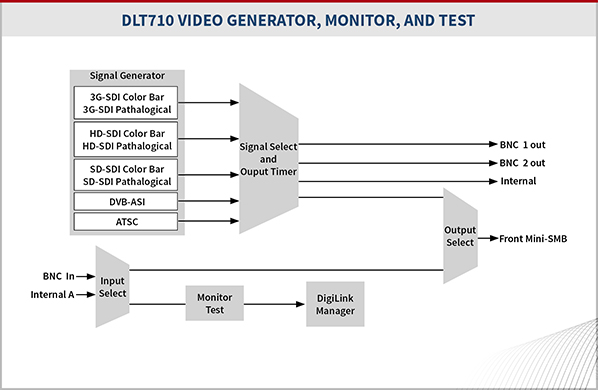

As a test signal generator, the DLT710 video generator outputs a continuous video signal of a single selected format or a timed sequence through each selected format.

When configured as a monitor for a single format it will continuously monitor live digital video and indicate rate and physical layer signal quality. With more than one format selected, the module automatically verifies each rate has been received.

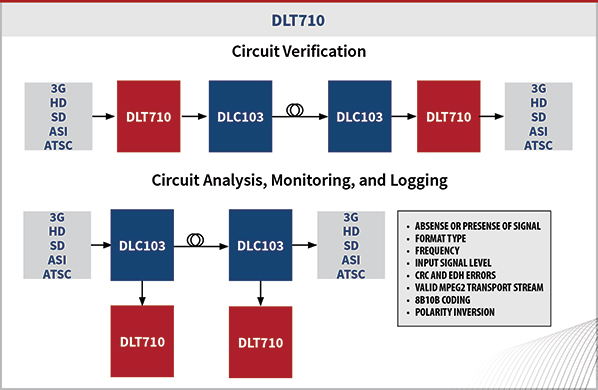

With this unique multi-purpose module, verification of a multi-service video link can be performed in less than five minutes. The DLT710 is an ideal solution for link verification of digital video circuits.

Applications

Features

Single-module provides generation and verification for:

2.97Gb/s 3G-SDI (SMPTE 424M)
1080p/59.94
1080p/50
1.485Gb/s HD-SDI (SMPTE 292M)
1080i/59.94
1080i/50
720p/59.94
720p/50
270Mb/s SD-SDI (SMPTE 259M)
525i/59.94
625i/50
270Mb/s DVB-ASI
19.39Mb/s ATSC (SMPTE 310M)

Video generator functions.

User selectable rates and formats
SDI color bars or pathological test signals both with audio tone
Stored MPEG video stream
Automatically sequences through all selected formats
Output to two BNCs and chassis backplane

Video monitor functions.

Test for EDH, CRC
Automatically detects input signal
Tests DVB-ASI and SMPTE 310 transport streams
DVB-ASI inversion detection
Detects and verifies all selected formats
Input from BNC or chassis backplane
Indicates low-level or double terminated inputs

Remote management via DL-Manager.

No external software required
HTTP or SNMPv2c
Configure, monitor
Upgrade firmware
Time-stamped event log

Ordering

#	Model #	Description	Availability
1	390-008150-00	DigiLink, Model DLT710, Multi-Function Digital Video Generator and Test Module (No Optics Required)	Pre-Order Available
2	398-008150-00	DigiLink, Model DLK710, Travel kit for Video Generator and Test Module (Includes DLT710 module, DL4100 chassis, cables and travel case	Pre-Order Available
3	398-008150-02	DigiLink, Model DLK710D, Travel kit for Video Generator and Test Module (Includes 2 DLT710s, 2 DL4100 chassis, cables and travel case	Pre-Order Available
4	398-008151-00	DigiLink, Model DLK710-IN, International Travel kit forVideo Generator and Test Module (Includes DLT710 module, DL4100 chassis, cables and travel case)	Pre-Order Available
5	398-008151-02	DigiLink, Model DLK710D-IN, International Travel kit forVideo Generator and Test Module (Includes 2 DLT710 modules, 2 DL4100 chassis, cables and travel case)	Pre-Order Available
