Artel SFP, SFP+ & XFP Modules for Digial, Analog, Video & Audio

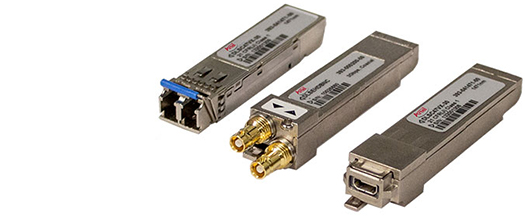

Artel DigiLink SFP, SFP+, and XFP SFP, SFP+, and XFP Modules for DigiLink Products

The DigiLink utilizes a common set of externally accessible, SFP, SFP+, and XFP optical and electrical IOs that are both an optical transmitter and wide band receiver and feature standard LC connectors. Available in 1310 nm, 1550 nm, 18 CWDM, and 40 DWDM channels and include a wide band optical receiver.
Overview
The DigiLink utilizes a common set of externally accessible, SFP, SFP+, and XFP optical and electrical IOs that are both an optical transmitter and wide band receiver and feature standard LC connectors.  For ease of deployment and sparing, DigiLink SFPs are designed to be compatible across virtually the entire platform.

Artel designed the DigiLink to be the most easily deployed and maintained fiber optic transport system ever developed.  This included designing the system with a common set of externally installed SFP/XFP optics that are available in 1310 nm, 1550 nm, 18 CWDM, and 40 DWDM channels and include a wide band optical receiver.  This enables a variety of flexible deployments with significantly less stocked optical components.

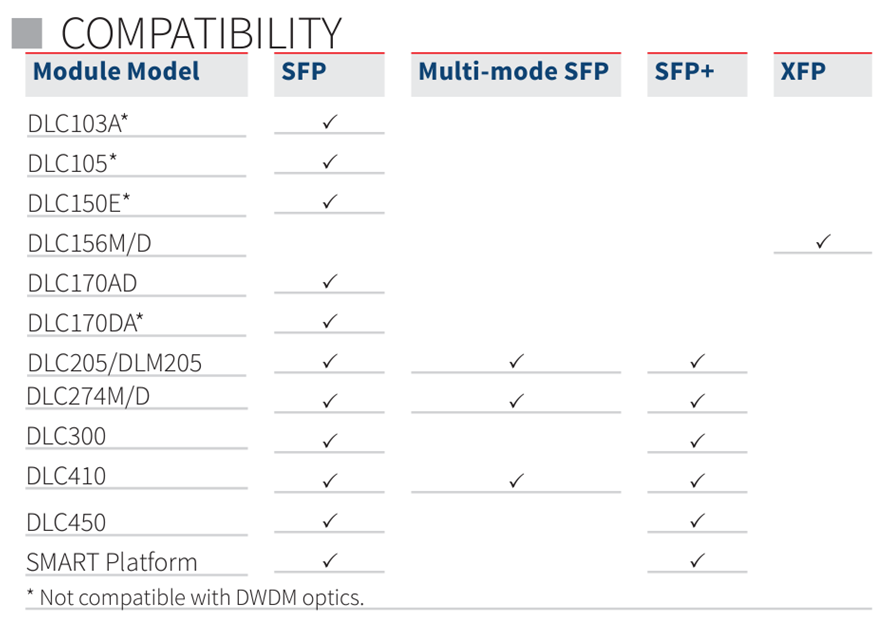

Compatibility with DigiLink, MegaWav, and other ITU G694 standard multiplexers allows creation of flexible fiber efficient optical networks.







Features
 Industry standard SFP, SFP+, and XFP transceivers transmit and receive in one flexible unit Formats supported:
  • 2.970 Gb/s 3G-SDI (SMPTE 424M)
  • 1.485 Gb/s HD-SDI (SMPTE 292)
  • SD-SDI (SMPTE 259M-C ITU 656)
  • SDTI (SMPTE 305M)
  • DVB-ASI
  • Composite analog video & audio (NTSC, PAL)
  • 19.39 Mb/s ATSC (SMPTE 310M)
  • 10/100/1000/100000 Ethernet
Industry standard wavelengths:
  • 1310 nm
  • 1550 nm
  • CWDM (ITU G.694.2)
  • DWDM (ITU G.694.1)
Up to 33dB loss budget LC/PC optical connectors Electrical options: RJ45, HD-BNC, HDMI Compatible with:
  • DigiLink media transport platform optical filters
  • MegaWav
  • Other ITU G.694 standard filters
WDM and CWDM support transmission and reception of SDI and HD-SDI pathological patterns

Ordering
# Model # Description Availability
1 393-000101-00 DigiLink, Model DLSE45, SFP 1.25 Gbps, RJ45, Copper SFP, Cat5e, 100m Pre-Order Available
2 393-000102-00 DigiLink, Model DLS+E45, SFP 10 Gbps, RJ45, Copper SFP, Cat5e, 100m Pre-Order Available
3 393-000200-00 DigiLink, Model DLSEHDBNC, SFP 3G ELECTRICAL HD-BNC with a 3" Cable Adapter HD-BNC to BNC Pre-Order Available
4 393-000300-00 DigiLink, Model DLSEHDMI-TX, SFP 3G ELECTRICAL SDI to HDMI Converter with 2 Meter HDMI Type-A to Type-D Cable Pre-Order Available
5 393-000310-00 DigiLink, Model DLSEHDMI-RX, SFP 3G ELECTRICAL HDMI to SDI Converter with 2 Meter HDMI Type-A to Type-D Cable Pre-Order Available
6 393-051310-11 DigiLink, Model DLS31VX3G-11, Video SFP 1310nm Transceiver 3Gb/s, 11dB Pre-Order Available
7 393-051310-30 DigiLink, Model DLS31VX3G-30, Video SFP 1310nm Transceiver 3Gb/s, 30dB Pre-Order Available
8 393-051550-30 DigiLink, Model DLS55VX3G-30, VIDEO SFP 1550nm3Gb/s, TRA Pre-Order Available
9 393-061271-28 DigiLink, Model DLSC27VX3G-28, 3G Video SFP CWDM 1271nm Transceiver, 28dB Pre-Order Available
10 393-061291-28 DigiLink, Model DLSC29VX3G-28, 3G Video SFP CWDM 1291nm Transceiver, 28dB Pre-Order Available
11 393-061311-28 DigiLink, Model DLSC31VX3G-28, 3G Video SFP CWDM 1311nm Transceiver, 28dB Pre-Order Available
12 393-061331-28 DigiLink, Model DLSC33VX3G-28, 3G Video SFP CWDM 1331nm Transceiver, 28dB Pre-Order Available
13 393-061351-28 DigiLink, Model DLSC35VX3G-28, 3G Video SFP CWDM 1351nm Transceiver, 28dB Pre-Order Available
14 393-061371-28 DigiLink, Model DLSC37VX3G-28, 3G Video SFP CWDM 1371nm Transceiver, 28dB Pre-Order Available
15 393-061391-28 DigiLink, Model DLSC39VX3G-28, 3G Video SFP CWDM 1391nm Transceiver, 28dB Pre-Order Available
16 393-061411-28 DigiLink, Model DLSC41VX3G-28, 3G Video SFP CWDM 1411nm Transceiver, 28dB Pre-Order Available
17 393-061431-28 DigiLink, Model DLSC43VX3G-28, 3G Video SFP CWDM 1431nm Transceiver, 28dB Pre-Order Available
18 393-061451-28 DigiLink, Model DLSC45VX3G-28, 3G Video SFP CWDM 1451nm Transceiver, 28dB Pre-Order Available
19 393-061471-28 DigiLink, Model DLSC47VX3G-28, 3G Video SFP CWDM 1471nm Transceiver, 28dB Pre-Order Available
20 393-061491-28 DigiLink, Model DLSC49VX3G-28, 3G Video SFP CWDM 1491nm Transceiver, 28dB Pre-Order Available
21 393-061511-28 DigiLink, Model DLSC51VX3G-28, 3G Video SFP CWDM 1511nm Transceiver, 28dB Pre-Order Available
22 393-061531-28 DigiLink, Model DLSC53VX3G-28, 3G Video SFP CWDM 1531nm Transceiver, 28dB Pre-Order Available
23 393-061551-28 DigiLink, Model DLSC55VX3G-28, 3G Video SFP CWDM 1551nm Transceiver, 28dB Pre-Order Available
24 393-061571-28 DigiLink, Model DLSC57VX3G-28, 3G Video SFP CWDM 1571nm Transceiver, 28dB Pre-Order Available
25 393-061591-28 DigiLink, Model DLSC59VX3G-28, 3G Video SFP CWDM 1591nm Transceiver, 28dB Pre-Order Available
26 393-061611-28 DigiLink, Model DLSC61VX3G-28, 3G Video SFP CWDM 1611nm Transceiver, 28dB Pre-Order Available
27 393-100850-08 DigiLink, Model DLSM85-08, Multi-Mode SFP 850nm Transceiver 1.25G/s, 8dBm Pre-Order Available
28 393-150850-08 DigiLink, Model DLSM85VX3G-8, Video SFP 850nm Transceiver Multi-Mode, 3Gb/s, 8dB Pre-Order Available
29 393-240033-21 DigiLink, Model DLSW21HX-33, SFP DWDM 1560.61nm, TX:+4dBm, RX:-29dBm, Ch 21 Pre-Order Available
30 393-240033-22 DigiLink, Model DLSW22HX-33, SFP DWDM 1559.79nm, TX:+4dBm, RX:-29dBm, Ch 22 Pre-Order Available
31 393-240033-23 DigiLink, Model DLSW23HX-33, SFP DWDM 1558.98nm, TX:+4dBm, RX:-29dBm, Ch 23 Pre-Order Available
32 393-240033-24 DigiLink, Model DLSW24HX-33, SFP DWDM 1558.17nm, TX:+4dBm, RX:-29dBm, Ch 24 Pre-Order Available
33 393-240033-25 DigiLink, Model DLSW25HX-33, SFP DWDM 1557.36nm, TX:+4dBm, RX:-29dBm, Ch 25 Pre-Order Available
34 393-240033-26 DigiLink, Model DLSW26HX-33, SFP DWDM 1556.55nm, TX:+4dBm, RX:-29dBm, Ch 26 Pre-Order Available
35 393-240033-27 DigiLink, Model DLSW27HX-33, SFP DWDM 1555.75nm, TX:+4dBm, RX:-29dBm, Ch 27 Pre-Order Available
36 393-240033-28 DigiLink, Model DLSW28HX-33, SFP DWDM 1554.94nm, TX:+4dBm, RX:-29dBm, Ch 28 Pre-Order Available
37 393-240033-29 DigiLink, Model DLSW29HX-33, SFP DWDM 1554.13nm, TX:+4dBm, RX:-29dBm, Ch 29 Pre-Order Available
38 393-240033-30 DigiLink, Model DLSW30HX-33, SFP DWDM 1553.33nm, TX:+4dBm, RX:-29dBm, Ch 30 Pre-Order Available
39 393-240033-31 DigiLink, Model DLSW31HX-33, SFP DWDM 1552.52nm, TX:+4dBm, RX:-29dBm, Ch 31 Pre-Order Available
40 393-240033-32 DigiLink, Model DLSW32HX-33, SFP DWDM 1551.72nm, TX:+4dBm, RX:-29dBm, Ch 32 Pre-Order Available
41 393-240033-33 DigiLink, Model DLSW33HX-33, SFP DWDM 1550.92nm, TX:+4dBm, RX:-29dBm. Ch 33 Pre-Order Available
42 393-240033-34 DigiLink, Model DLSW34HX-33, SFP DWDM 1550.12nm, TX:+4dBm, RX:-29dBm, Ch 34 Pre-Order Available
43 393-240033-35 DigiLink, Model DLSW35HX-33, SFP DWDM 1549.32nm, TX:+4dBm, RX:-29dBm, Ch 35 Pre-Order Available
44 393-240033-36 DigiLink, Model DLSW36HX-33, SFP DWDM 1548.51nm, TX:+4dBm, RX:-29dBm, Ch 36 Pre-Order Available
45 393-240033-37 DigiLink, Model DLSW37HX-33, SFP DWDM 1547.72nm, TX:+4dBm, RX:-29dBm, Ch 37 Pre-Order Available
46 393-240033-38 DigiLink, Model DLSW38HX-33, SFP DWDM 1546.92nm, TX:+4dBm, RX:-29dBm, Ch 38 Pre-Order Available
47 393-240033-39 DigiLink, Model DLSW39HX-33, SFP DWDM 1546.12nm, TX:+4dBm, RX:-29dBm, Ch 39 Pre-Order Available
48 393-240033-40 DigiLink, Model DLSW40HX-33, SFP DWDM 1545.32nm, TX:+4dBm, RX:-29dBm, Ch 40 Pre-Order Available
49 393-240033-41 DigiLink, Model DLSW41HX-33, SFP DWDM 1544.53nm, TX:+4dBm, RX:-29dBm, Ch 41 Pre-Order Available
50 393-240033-42 DigiLink, Model DLSW42HX-33, SFP DWDM 1543.73nm, TX:+4dBm, RX:-29dBm, Ch 42 Pre-Order Available
51 393-240033-43 DigiLink, Model DLSW43HX-33, SFP DWDM 1542.94nm, TX:+4dBm, RX:-29dBm, Ch 43 Pre-Order Available
52 393-240033-44 DigiLink, Model DLSW44HX-33, SFP DWDM 1542.14nm, TX:+4dBm, RX:-29dBm, Ch 44 Pre-Order Available
53 393-240033-45 DigiLink, Model DLSW45HX-33, SFP DWDM 1541.35nm, TX:+4dBm, RX:-29dBm, Ch 45 Pre-Order Available
54 393-240033-46 DigiLink, Model DLSW46HX-33, SFP DWDM 1540.56nm, TX:+4dBm, RX:-29dBm, Ch 46 Pre-Order Available
55 393-240033-47 DigiLink, Model DLSW47HX-33, SFP DWDM 1539.77nm, TX:+4dBm, RX:-29dBm, Ch 47 Pre-Order Available
56 393-240033-48 DigiLink, Model DLSW48HX-33, SFP DWDM 1538.98nm, TX:+4dBm, RX:-29dBm, Ch 48 Pre-Order Available
57 393-240033-49 DigiLink, Model DLSW49HX-33, SFP DWDM 1538.19nm, TX:+4dBm, RX:-29dBm, Ch 49 Pre-Order Available
58 393-240033-50 DigiLink, Model DLSW50HX-33, SFP DWDM 1537.40nm, TX:+4dBm, RX:-29dBm, Ch 50 Pre-Order Available
59 393-240033-51 DigiLink, Model DLSW51HX-33, SFP DWDM 1536.61nm, TX:+4dBm, RX:-29dBm, Ch 51 Pre-Order Available
60 393-240033-52 DigiLink, Model DLSW52HX-33, SFP DWDM 1535.82nm, TX:+4dBm, RX:-29dBm, Ch 52 Pre-Order Available
61 393-240033-53 DigiLink, Model DLSW53HX-33, SFP DWDM 1535.04nm, TX:+4dBm, RX:-29dBm, Ch 53 Pre-Order Available
62 393-240033-54 DigiLink, Model DLSW54HX-33, SFP DWDM 1534.25nm, TX:+4dBm, RX:-29dBm, Ch 54 Pre-Order Available
63 393-240033-55 DigiLink, Model DLSW55HX-33, SFP DWDM 1533.47nm, TX:+4dBm, RX:-29dBm, Ch 55 Pre-Order Available
64 393-240033-56 DigiLink, Model DLSW56HX-33, SFP DWDM 1532.68nm, TX:+4dBm, RX:-29dBm, Ch 56 Pre-Order Available
65 393-240033-57 DigiLink, Model DLSW57HX-33, SFP DWDM 1531.90nm, TX:+4dBm, RX:-29dBm, Ch 57 Pre-Order Available
66 393-240033-58 DigiLink, Model DLSW58HX-33, SFP DWDM 1531.12nm, TX:+4dBm, RX:-29dBm, Ch 58 Pre-Order Available
67 393-240033-59 DigiLink, Model DLSW59HX-33, SFP DWDM 1530.33nm, TX:+4dBm, RX:-29dBm, Ch 59 Pre-Order Available
68 393-240033-60 DigiLink, Model DLSW60HX-33, SFP DWDM 1529.55nm, TX:+4dBm, RX:-29dBm, Ch 60 Pre-Order Available
69 393-501000-05 DigiLink, Model DLS+CABLE-5M, SFP+ Passive Copper Cable,10Gb/s, 5 Meters Pre-Order Available
70 393-510850-05 DigiLink, Model DLS+M85X10G-300M, SFP+ Multi-Mode 850nm Transceiver, 10Gb/s, 5dB, 300m Pre-Order Available
71 393-551310-04 DigiLink, Model DLS+31X10G-02KM, SFP+ WDM 1310nm Transceiver 10Gb/s, 4dB, 2Km Pre-Order Available
72 393-551550-14 DigiLink, Model DLS+55X10G-10KM, SFP+ WDM 1550nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
73 393-551550-24 DigiLink, Model DLS+55X10G-70KM, SFP+ WDM 1550nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
74 393-561471-14 DigiLink, Model DLSC+47X10G-10KM, SFP+ CWDM 1471nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
75 393-561471-24 DigiLink, Model DLSC+47X10G-70KM, SFP+ CWDM 1471nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
76 393-561491-14 DigiLink, Model DLSC+49X10G-10KM, SFP+ CWDM 1491nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
77 393-561491-24 DigiLink, Model DLSC+49X10G-70KM, SFP+ CWDM 1491nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
78 393-561511-14 DigiLink, Model DLSC+51X10G-10KM, SFP+ CWDM 1511nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
79 393-561511-24 DigiLink, Model DLSC+51X10G-70KM, SFP+ CWDM 1511nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
80 393-561531-14 DigiLink, Model DLSC+53X10G-10KM, SFP+ CWDM 1531nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
81 393-561531-24 DigiLink, Model DLSC+53X10G-70KM, SFP+ CWDM 1531nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
82 393-561551-14 DigiLink, Model DLSC+55X10G-10KM, SFP+ CWDM 1551nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
83 393-561551-24 DigiLink, Model DLSC+55X10G-70KM, SFP+ CWDM 1551nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
84 393-561571-14 DigiLink, Model DLSC+57X10G-10KM, SFP+ CWDM 1571nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
85 393-561571-24 DigiLink, Model DLSC+57X10G-70KM, SFP+ CWDM 1571nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
86 393-561591-14 DigiLink, Model DLSC+59X10G-10KM, SFP+ CWDM 1591nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
87 393-561591-24 DigiLink, Model DLSC+59X10G-70KM, SFP+ CWDM 1591nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
88 393-561611-14 DigiLink, Model DLSC+61X10G-10KM, SFP+ CWDM 1611nm Transceiver 10Gb/s, 14dB, 10Km Pre-Order Available
89 393-561611-24 DigiLink, Model DLSC+61X10G-70KM, SFP+ CWDM 1611nm Transceiver 10Gb/s, 24dB, 70Km Pre-Order Available
90 394-051310-08 DigiLink, Model DLX31X10G-8, XFP 1310nm 10Gb/s Transceiver 8dB, 10Km Pre-Order Available
91 394-051550-14 DigiLink, Model DLX55X10G-14, XFP 1550nm 10Gb/s Transceiver 14dB, 40Km Pre-Order Available
92 394-051550-24 DigiLink, Model DLX55X10G-24, XFP 1550nm 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
93 394-061471-24 DigiLink, Model DLXC47X10G-24, XFP 1471nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
94 394-061491-24 DigiLink, Model DLXC49X10G-24, XFP 1491nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
95 394-061511-24 DigiLink, Model DLXC51X10G-24, XFP 1511nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
96 394-061531-24 DigiLink, Model DLXC53X10G-24, XFP 1531nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
97 394-061551-24 DigiLink, Model DLXC55X10G-24, XFP 1551nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
98 394-061571-24 DigiLink, Model DLXC57X10G-24, XFP 1571nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
99 394-061591-24 DigiLink, Model DLXC59X10G-24, XFP 1591nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
100 394-061611-24 DigiLink, Model DLXC61X10G-24, XFP 1611nm 10Gb/s Transceiver 24dB, 70Km Pre-Order Available
101 394-100850-05 DigiLink, Model DLXM85X10G-05, XFP Multi-Mode 850nm Transceiver, 10Gb/s, 5dB, 300m Pre-Order Available
102 394-241021-24 DigiLink, Model DLXD21X10G-24, XFP DWDM Channel 21 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
103 394-241022-24 DigiLink, Model DLXD22X10G-24, XFP DWDM Channel 22 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
104 394-241023-24 DigiLink, Model DLXD23X10G-24, XFP DWDM Channel 23 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
105 394-241024-24 DigiLink, Model DLXD24X10G-24, XFP DWDM Channel 24 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
106 394-241025-24 DigiLink, Model DLXD25X10G-24, XFP DWDM Channel 25 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
107 394-241026-24 DigiLink, Model DLXD26X10G-24, XFP DWDM Channel 26 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
108 394-241027-24 DigiLink, Model DLXD27X10G-24, XFP DWDM Channel 27 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
109 394-241028-24 DigiLink, Model DLXD28X10G-24, XFP DWDM Channel 28 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
110 394-241029-24 DigiLink, Model DLXD29X10G-24, XFP DWDM Channel 29 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
111 394-241030-24 DigiLink, Model DLXD30X10G-24, XFP DWDM Channel 30 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
112 394-241031-24 DigiLink, Model DLXD31X10G-24, XFP DWDM Channel 31 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
113 394-241032-24 DigiLink, Model DLXD32X10G-24, XFP DWDM Channel 32 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
114 394-241033-24 DigiLink, Model DLXD33X10G-24, XFP DWDM Channel 33 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
115 394-241034-24 DigiLink, Model DLXD34X10G-24, XFP DWDM Channel 34 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
116 394-241035-24 DigiLink, Model DLXD35X10G-24, XFP DWDM Channel 35 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
117 394-241036-24 DigiLink, Model DLXD36X10G-24, XFP DWDM Channel 36 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
118 394-241037-24 DigiLink, Model DLXD37X10G-24, XFP DWDM Channel 37 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
119 394-241038-24 DigiLink, Model DLXD38X10G-24, XFP DWDM Channel 38 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
120 394-241039-24 DigiLink, Model DLXD39X10G-24, XFP DWDM Channel 39 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
121 394-241040-24 DigiLink, Model DLXD40X10G-24, XFP DWDM Channel 40 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
122 394-241041-24 DigiLink, Model DLXD41X10G-24, XFP DWDM Channel 41 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
123 394-241042-24 DigiLink, Model DLXD42X10G-24, XFP DWDM Channel 42 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
124 394-241043-24 DigiLink, Model DLXD43X10G-24, XFP DWDM Channel 43 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
125 394-241044-24 DigiLink, Model DLXD44X10G-24, XFP DWDM Channel 44 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
126 394-241045-24 DigiLink, Model DLXD45X10G-24, XFP DWDM Channel 45 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
127 394-241046-24 DigiLink, Model DLXD46X10G-24, XFP DWDM Channel 46 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
128 394-241047-24 DigiLink, Model DLXD47X10G-24, XFP DWDM Channel 47 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
129 394-241048-24 DigiLink, Model DLXD48X10G-24, XFP DWDM Channel 48 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
130 394-241049-24 DigiLink, Model DLXD49X10G-24, XFP DWDM Channel 49 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
131 394-241050-24 DigiLink, Model DLXD50X10G-23, XFP DWDM Channel 50 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
132 394-241051-24 DigiLink, Model DLXD51X10G-24, XFP DWDM Channel 51 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
133 394-241052-24 DigiLink, Model DLXD52X10G-24, XFP DWDM Channel 52 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
134 394-241053-24 DigiLink, Model DLXD53X10G-24, XFP DWDM Channel 53 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
135 394-241054-24 DigiLink, Model DLXD54X10G-24, XFP DWDM Channel 54 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
136 394-241055-24 DigiLink, Model DLXD55X10G-24, XFP DWDM Channel 55 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
137 394-241056-24 DigiLink, Model DLXD56X10G-24, XFP DWDM Channel 56 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
138 394-241057-24 DigiLink, Model DLXD57X10G-24, XFP DWDM Channel 57 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
139 394-241058-24 DigiLink, Model DLXD58X10G-24, XFP DWDM Channel 58 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
140 394-241059-24 DigiLink, Model DLXD59X10G-24, XFP DWDM Channel 59 10Gb/s Transceiver 24dB, 80Km Pre-Order Available
141 394-241060-24 DigiLink, Model DLXD60X10G-24, XFP DWDM Channel 60 10Gb/s Transceiver 24dB, 80Km Pre-Order Available





Company
> Contact Us
> About Patton
> Jobs
> Capabilities
> Quality & Responsibility
> Legal
News & Events
> Press Room/Releases
> Training & Events
> Library/Downloads
Partners & Resources
> Partner Programs
> Resources
> Blog
Products
Unified Communications
> VoIP Adapters
> Fax Adapters
> VoIP Gateways
> VoIP Routers
> VoIP IADs - Integrated Access Devices
> Enterprise Session Border Controllers
> Media Gateways
> SS7 Gateways
> Secure End Points (SIP Phones)
> VoIP Public Address & Mass Notification
Software and Cloud
> Virtual SBC | Virtualized SBC
> Virtual Access Router
> VPN Server
> IPv6 IPv4 Converter
> Intelligent Edge Orchestration
> NFV & SDN
Networking & Access
> Ethernet Extenders
> Industrial Switches
> Industrial Ethernet
> Unmanaged Industrial Ethernet Switches
> Managed Industrial Ethernet Switches
> Industrial PoE Switches
> PoE Extenders
> Industrial Network Solutions
> xDSL Products | DSL Modems, DSL VoIP, DSL Router Modems
> Routers
> Dial-Up Access

Sunset Products

Datacom Industrial Connectivity
> Industrial PoE Products
> Ethernet Over Fiber
> Line Drivers / Short Range Modems
> Wireline Analog Modems
> Pro AV Live & Media Broadcast Systems
> Fiber Serial DataCom (RS-232/422/530/188C)
> Fiber Telecom (T1/E1/PRI, Analog & ISDN)
> Multiplexers & Sharing Devices
> SFP (Small Form Pluggable) Modules and Kits
> Fiber Alarming, Notification, Relay & Control
> Other Network Extenders
> Defense/Security Fiber Communications
> Baluns
> Surge Protectors & Opto-Isolators
> DataTaps, Testers, Adapters, Rack Kits
> Interface Converters
> Fiber Rack & Enclosure Systems
> Fiber Repeaters & Wavelength Division Multiplexers (WDM)
> Waveguide RF Filters
Media Transport
> Artel Racks & Chassis Infrastructure
> Video Over IP Transport
> Video Over Fiber Transport
> Video, Audio & Data Over Fiber Transport
> Video & Audio Over Fiber Transport
> Ethernet Over Fiber Transport
> Serial DataComm Over Fiber Transport
> Video, Fiber Testers & Splitters
> Wave Division Multiplexers
> Ethernet Switches
> SFP Modules and Kits
Support & Services
> Support Home
> Support Portal
> Premium Support
> Software Upgrades
> Warranty Services
> Returns & RMAs
> Manuals
Special Projects Group (SPG)
> SPG Home
> Services & Capabilities
> Projects
> Facilities

Sales: sales@patton.com / +1 301 975 1000
Support: support@patton.com / +1 301 975 1007
Join Our Email List
Have Us Contact You
or
Login Connect With Us
X Linkedin Facebook Youtube

     Patton LLC Copyright © 2022 All Rights Reserved.

|  Sitemap  |   Legal  |   Privacy Policy  |   Disclaimer  |    X  Facebook  YouTube  LinkedIn  RSS
