Patton DigiLink WDM Multiplexers

Overview

Artel’s DigiLink media transport platform offers a comprehensive set of optical multiplexing solutions for DWDM, CWDM, and WDM.

These multiplexers, in conjunction with other DigiLink solutions or third party equipment, allow the creation of flexible, space and fiber efficient, optical networks. Artel designed its optical multiplexing products to address the issue of space and fiber constraints.

For space efficiency, each module takes only one bay in a DigiLink chassis. By using ITU standard filters and optics, multi-vendor, cost-effective, and fiber efficient video and Ethernet can be created.

Completely passive and designed with the latest optical filters, Artel’s DWDM, CWDM, and WDM solutions are extremely reliable, cost-effective, and feature low insertion losses.

Applications

Features

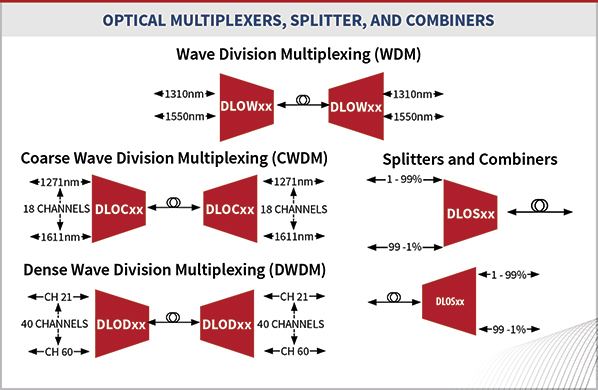

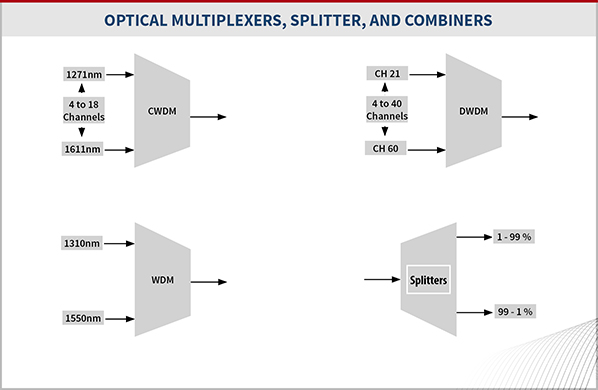

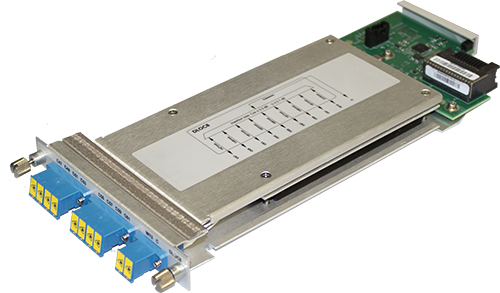

Optical multiplexer features

Low optical losses
Passive design for reliability
Bi-directional
Industry standard ITU wavelengths
Industry standard LC/PC connectors
Most modules include expansion port (passes all other wavelengths)
Compatible with all DigiLink chassis (including DL4000P passive 4 slot chassis)

WDM features (Model Numbers: DLOW1, DLOW2, DLOWE)

1310nm and 1550nm combiner/splitters
Single or dual WDM options
External WDM conserves chassis slot
Split ratios from 50/50 to 1/99

CWDM features (Model Numbers: DLOCxx)

Industry standard ITU G.694.2 wavelengths
Optically multiplex up to 18 channels over a single fiber
4, 8, 10, and 18 channel options
Multiple 4 channel options

DWDM features (Model Numbers: DLODxxx)

Industry standard ITU G.694.1 wavelengths
Optically multiplex up to 40 channels on a single fiber
4,10, 20, and 40 channel options
Interconnect modules to enable 40 channels in a single 1RU chassis

Dual Window Wide Band Optical Splitters (Model Numbers: DLOS2-xx) Optical Production Switch (Model Number: DLOSW1)

Supports bi-directional applications
Manual over-ride
Supports all wavelengths
- WDM (1310 - 1550)
- CWDM ITU G.694.1
- DWDM

Ordering

#	Model #	Description	Availability
1	390-008752-00	DigiLink, Model DLOC4L, 4 Channel CWDM Optical Mux/De-Mux, Channels 1471, 1491, 1511, 1531	Pre-Order Available
2	390-008752-01	DigiLink, Model DLOC4M, 4 Channel CWDM Optical Mux/De-Mux, Channels 1511, 1531, 1551, 1571	Pre-Order Available
3	390-008752-02	DigiLink, Model DLOC4H, 4 Channel CWDM Optical Mux/De-Mux, Channels 1551, 1571, 1591, 1611	Pre-Order Available
4	390-008752-03	DigiLink, Model DLOC4O, 4 Channel CWDM Optical Mux/De-Mux, Channels 1471, 1491, 1591, 1611	Pre-Order Available
5	390-008752-04	DigiLink, Model DLOC8, 8 Channel CWDM Optical Mux/De-Mux, Channels 1471 - 1611	Pre-Order Available
6	390-008752-10	DigiLink, Model DLOC10, 10 Channel CWDM Optical Mux/De-Mux, Channels 1271 - 1451	Pre-Order Available
7	390-008752-18	DigiLink, Model DLOC18, 18 Channel CWDM Optical Mux/De-Mux, Channels 1271 - 1611	Pre-Order Available
8	390-008753-00	DigiLink, Model DLOS2, 50/50 Optical Splitter	Pre-Order Available
9	390-008753-01	DigiLink, Model DLOS2-01, 1/99 Optical Splitter	Pre-Order Available
10	390-008753-05	DigiLink, Model DLOS2-05, 5/95 Optical Splitter	Pre-Order Available
11	390-008753-10	DigiLink, Model DLOS2-10, 10/90 Optical Splitter	Pre-Order Available
12	390-008753-20	DigiLink, Model DLOS2-20, 20/80 Optical Splitter	Pre-Order Available
13	390-008753-30	DigiLink, Model DLOS2-30, 30/70 Optical Splitter	Pre-Order Available
14	390-008753-40	DigiLink, Model DLOS2-40, 40/60 Optical Splitter	Pre-Order Available
15	390-008753-50	DigiLink, Model DLOS22, 50/50 Dual Optical Splitter	Pre-Order Available
16	390-008754-01	DigiLink, Model DLOW1, Single WDM Optical Mux/De-Mux, 1310/1550	Pre-Order Available
17	390-008754-02	DigiLink, Model DLOW2, Dual WDM Optical Mux/De-Mux, 1310/1550	Pre-Order Available
18	390-008762-21	DigiLink, Model DLOD421, 4 Channel DWDM Optical Mux/Demux Module Channels 21 - 24	Pre-Order Available
19	390-008762-25	DigiLink, Model DLOD425, 4 Channel DWDM Optical Mux/Demux Module Channels 25 - 28	Pre-Order Available
20	390-008762-29	DigiLink, Model DLOD429, 4 Channel DWDM Optical Mux/Demux Module Channels 29 - 32	Pre-Order Available
21	390-008762-33	DigiLink, Model DLOD433, 4 Channel DWDM Optical Mux/Demux Module Channels 33 - 36	Pre-Order Available
22	390-008762-37	DigiLink, Model DLOD437, 4 Channel DWDM Optical Mux/Demux Module Channels 37 - 40	Pre-Order Available
23	390-008762-41	DigiLink, Model DLOD441, 4 Channel DWDM Optical Mux/Demux Module Channels 41 - 44	Pre-Order Available
24	390-008762-45	DigiLink, Model DLOD445, 4 Channel DWDM Optical Mux/Demux Module Channels 45 - 48	Pre-Order Available
25	390-008762-49	DigiLink, Model DLOD449, 4 Channel DWDM Optical Mux/Demux Module Channels 49 - 52	Pre-Order Available
26	390-008762-53	DigiLink, Model DLOD453, 4 Channel DWDM Optical Mux/Demux Module Channels 53 - 56	Pre-Order Available
27	390-008762-57	DigiLink, Model DLOD457, 4 Channel DWDM Optical Mux/Demux Module Channels 57 - 60	Pre-Order Available
28	390-008763-21	DigiLink, Model DLOD821, 8 Channel DWDM Optical Mux/Demux Module Channels 21 - 28	Pre-Order Available
29	390-008763-29	DigiLink, Model DLOD829, 8 Channel DWDM Optical Mux/Demux Module Channels 29 - 36	Pre-Order Available
30	390-008763-37	DigiLink, Model DLOD837, 8 Channel DWDM Optical Mux/Demux Module Channels 37 - 44	Pre-Order Available
31	390-008763-45	DigiLink, Model DLOD845, 8 Channel DWDM Optical Mux/Demux Module Channels 45 - 52	Pre-Order Available
32	390-008763-53	DigiLink, Model DLOD853, 8 Channel DWDM Optical Mux/Demux Module Channels 53 - 60	Pre-Order Available
33	390-008765-21	DigiLink, Model DLOD1021, 10 Channel DWDM Optical Mux/Demux Module Channels 21 - 30	Pre-Order Available
34	390-008765-31	DigiLink, Model DLOD1031, 10 Channel DWDM Optical Mux/Demux Module Channels 31 - 40	Pre-Order Available
35	390-008765-41	DigiLink, Model DLOD1041, 10 Channel DWDM Optical Mux/Demux Module Channels 41 - 50	Pre-Order Available
36	390-008765-51	DigiLink, Model DLOD1051, 10 Channel DWDM Optical Mux/Demux Module Channels 51 - 60	Pre-Order Available
37	390-008766-21	DigiLink, Model DLOD2021, 20 Channel DWDM Optical Mux/Demux Module Channels 21 - 40	Pre-Order Available
38	390-008766-41	DigiLink, Model DLOD2041, 20 Channel DWDM Optical Mux/Demux Module Channels 41 - 60	Pre-Order Available
39	390-008767-21	DigiLink, Model DLOD4021, 40 Channel DWDM Optical Mux/Demux Shelf Channels 21 - 60	Pre-Order Available
40	390-008780-01	DigiLink, Model DLOSW1, Optical Protection Switch	Pre-Order Available
Accessories
41	396-550103-00	DigiLink, Model FOCBLLCLC03M, Fiber Optic Cable, LC/PC to LC/PC, 0.3 Meters Simplex 3.0mm	Pre-Order Available
42	396-550105-00	DigiLink, Model FOCBLLCLC05M, Fiber Optic Cable, LC/PC to LC/PC, 0.5 Meters Simplex 3.0mm	Pre-Order Available
43	396-550110-00	DigiLink, Model FOCBLLCLC1M, Fiber Optic Cable, LC/PC to LC/PC, 1 Meters Simplex 3.0mm	Pre-Order Available
44	396-550110-15	DigiLink, Model FOCBLCLC1M-15, Fiber Optic Cable, LC/PC to LC/PC, 1 Meters Simplex 3.0mm, 15dB inline Attenuation	Pre-Order Available

Wave Division Multiplexer Cards
Artel DigiLink WDM Multiplexers Wave Division Optical Multiplexers (DLOW1, DLOW2, DLOWE)

Artel's DigiLink media transport platform offers a comprehensive set of optical multiplexing solutions for DWDM, CWDM, and WDM. These multiplexers, in conjunction with other DigiLink solutions or third party equipment, allow the creation of flexible, space and fiber efficient, optical networks.
