Patton FiberLink 3115

Overview

Fiberlink SDI Beamer Kit offers value and convenience. The kit includes 2 Fiberlink SDI Beamers (one transmitter and one receiver), 2 PDPS-4 power supplies and 2 nine-volt batteries. This is the same as

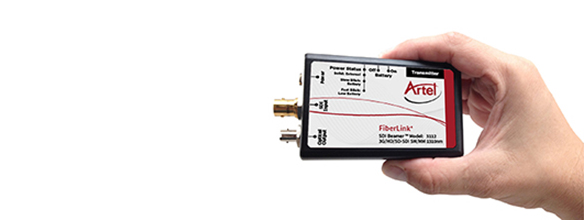

Introducing the world's first battery operated 3G/HD/SD-SDI fiber optic transmission system for in-the-field use! The Fiberlink SDI Beamer can be powered externally or via an internal 9-volt battery. Used in conjunction, the 9V battery acts as a fail-safe, glitch-free backup should you lose power.

The Fiberlink SDI Beamer supports 3G, HD and SD-SDI data rates per SMPTE specifications and works with both Single Mode and Multimode fiber right out of the box!

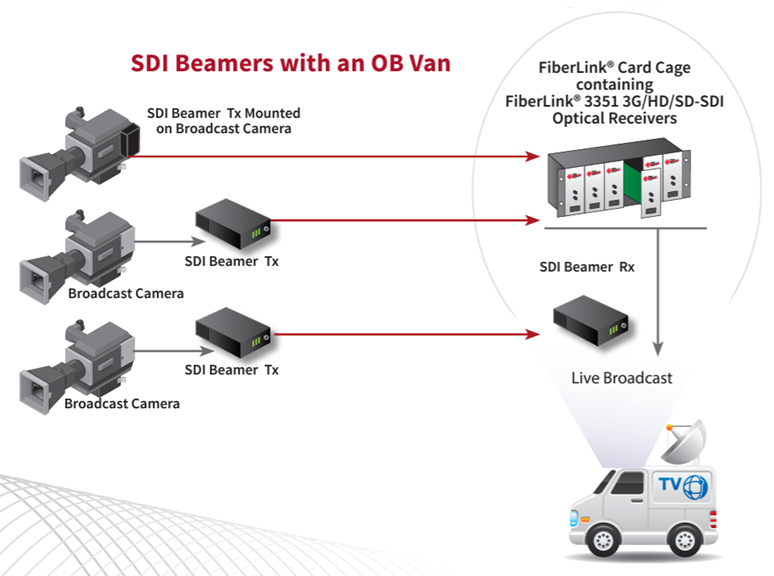

The Fiberlink SDI Beamer is perfect for broadcast or corporate studios, broadcasting in the field, OB vans, rental & staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, and more!

Applications

Features

3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.
Equalized transmitter input and re-clocked receiver output
Supports 3G/HD/SD-SDI and DVB-ASI transmission
SMPTE compliant electrical and optical inputs and outputs insures interoperability
Support both multimode and single mode fibers
Immunity to pathological patterns
Exclusive Artel optical circuit design for unmatched performance
Wide range optical link budget
Industry preferred ST optical connector with chain-attached ST dust cap
Wide power supply options: internal 9 volt battery, external DC power, AC adapter
Locking ring power connector
Long 5 hour battery life
Glitch-less battery backup when using external power source and internal 9 volt battery
Compatible with all other Artel SDI Fiberlink® products

Ordering

#	Model #	Description	Availability
1	3115-KIT-AU	FiberLink, Model 3115-KIT-AU, SDI Beamer Kit: Includes: 3112 (Tx), 3113 (Rx) 2 AU Power Supplies & 2 Ultralife 9V Batteries	Pre-Order Available
2	3115-KIT-CN	FiberLink, Model 3115-KIT-CN, SDI Beamer Kit: Includes: 3112 (Tx), 3113 (Rx) 2 CN Power Supplies & 2 Ultralife 9V Batteries	Pre-Order Available
3	3115-KIT-EU	FiberLink, Model 3115-KIT-EU, SDI Beamer Kit: Includes: 3112 (Tx), 3113 (Rx) 2 EU Power Supplies & 2 Ultralife 9V Batteries	Pre-Order Available
4	3115-KIT-NA	FiberLink, Model 3115-KIT-NA, Fiberlink SDI Beamer Kit: Includes 3112 (Tx), 3113 (Rx), 2 9V Ultralife Lithium Batteries and 2 PDPS-4 Power Supplies	Pre-Order Available
5	3115-KIT-UK	FiberLink, Model 3115-KIT-UK, SDI Beamer Kit: Includes: 3112 (Tx), 3113 (Rx) 2 UK Power Supplies & 2 Ultralife 9V Batteries	Pre-Order Available
