Digital Video over Fiber

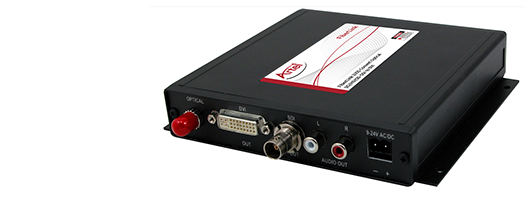

Artel FiberLink 3355 3G/HD/SD-SDI to DVI Converter Optical

Overview
The Fiberlink 3355 Series receives SMPTE standard 3G, HD or SD-SDI signals transmitted from the Fiberlink 3350 or Fiberlink 3380 Series transmitters, with or without embedded audio, and converts the baseband output to DVI.

The Fiberlink 3355 receiver provides an independent audio output providing you with the ability to separate your audio and video signals.

The unit operates with both single mode and multimode fiber and can be configured with an ST connector. Standard features include a re-clocked 3G/HD/SD-SDI output for continuous signal distribution.

All Fiberlink 3G/HD/SD-SDI products are compliant with SMPTE 297-2006 and has the ability to operate seamlessly with SMPTE 297-2006 fiber optic compliant devices.

All Fiberlink 3G/HD/SD-SDI products are immune to pathological signals over the entire budget link and operating temperature range and operate with both single mode and multimode fiber types.

With a small footprint box, it is ideal for confidence monitoring, broadcast or corporate studios, OB trucks, digital signage, rental and staging, auditoriums, stadiums and theaters, large venue projector installations, airport or transportation hubs, distance learning, surgical or medical imaging and more!

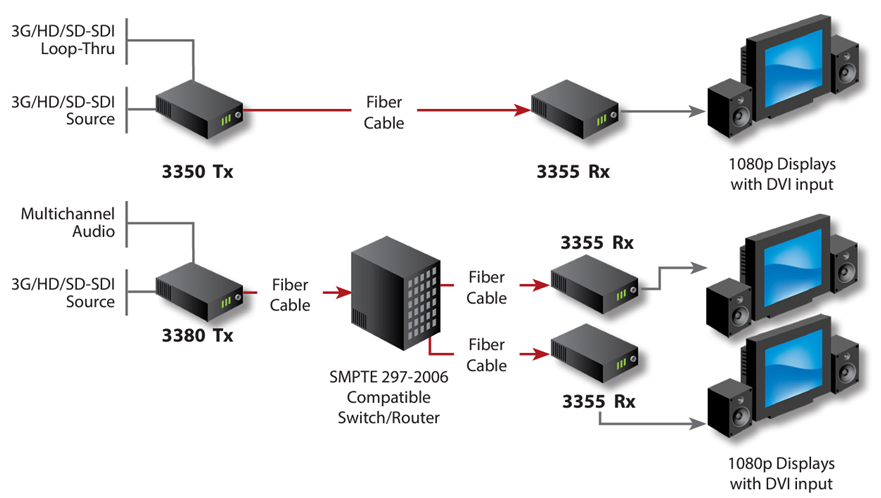

Applications

Features

• Convert 3G/HD/SD-SDI with embedded audio to DVI with audio pair selection.
• Supports all SD and HD resolutions to 1080p/60.
• DVI and stereo line level outputs (if audio present in SDI stream).
• Re-clocked SDI BNC output allows for continuous 3G/HD/SD-SDI signal distribution.
• User selection from up to 8 audio channel pairs for multilingual or multimessage support.
• Automatic selection of output resolution - no scaling.
• Supports single mode and multimode fiber types (ST fiber connector).
• Small compact design.
• Compatible with FiberLink 3380 Series.
• Compliant with SMPTE 297-2006 and can operate seamlessly with SMPTE 297-2006 fiber optic compliant devices.
• Immune to pathological signals over the entire budget link and operating temperature range.
• Ideal for confidence monitoring, broadcast or corporate studios, OB trucks, digital signage, rental and staging, auditoriums, stadiums and theaters, large venue projector installations, airport or transportation hubs, distance learning, surgical or medical imaging, and more!

Ordering

# Model # Description Availability 1 3355-B7S FiberLink, Model 3355-B7S, Fiberlink 3G/HD/SD-SDI, 1310nm, SM and MM, 1 fiber, ST, Rx with DVI output. Box Pre-Order Available
