Patton FiberLink 3370 Series

Overview

The Fiberlink 3370 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet and two channels of RS-Type data over one single mode fiber.

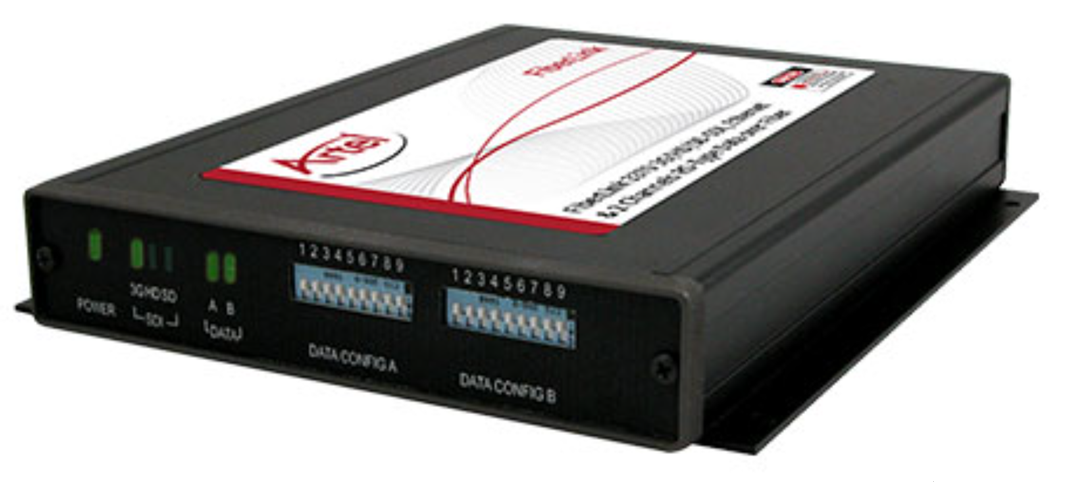

All data channels are available simultaneously and convenient switches on the 3370 Series transmitter allow the operator to configure each of the two pairs of data independently.

Data signals are not required to operate the Fiberlink 3370 link and it can be used as a stand-alone 3G/HD/SD-SDI optical link.

Previously serialized audio that is present SDI stream is left intact throughout the entire transmission process.

The 3370 Series is immune to pathological signals over the entire budget link and operating temperature range. Signals are equalized and re-clocked prior to fiber optic transmission and the 3371 receiver features a re-clocked SDI output.

The 3370 model operates with one single mode fiber. Available in card versions and a small footprint box version.

This device is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more.

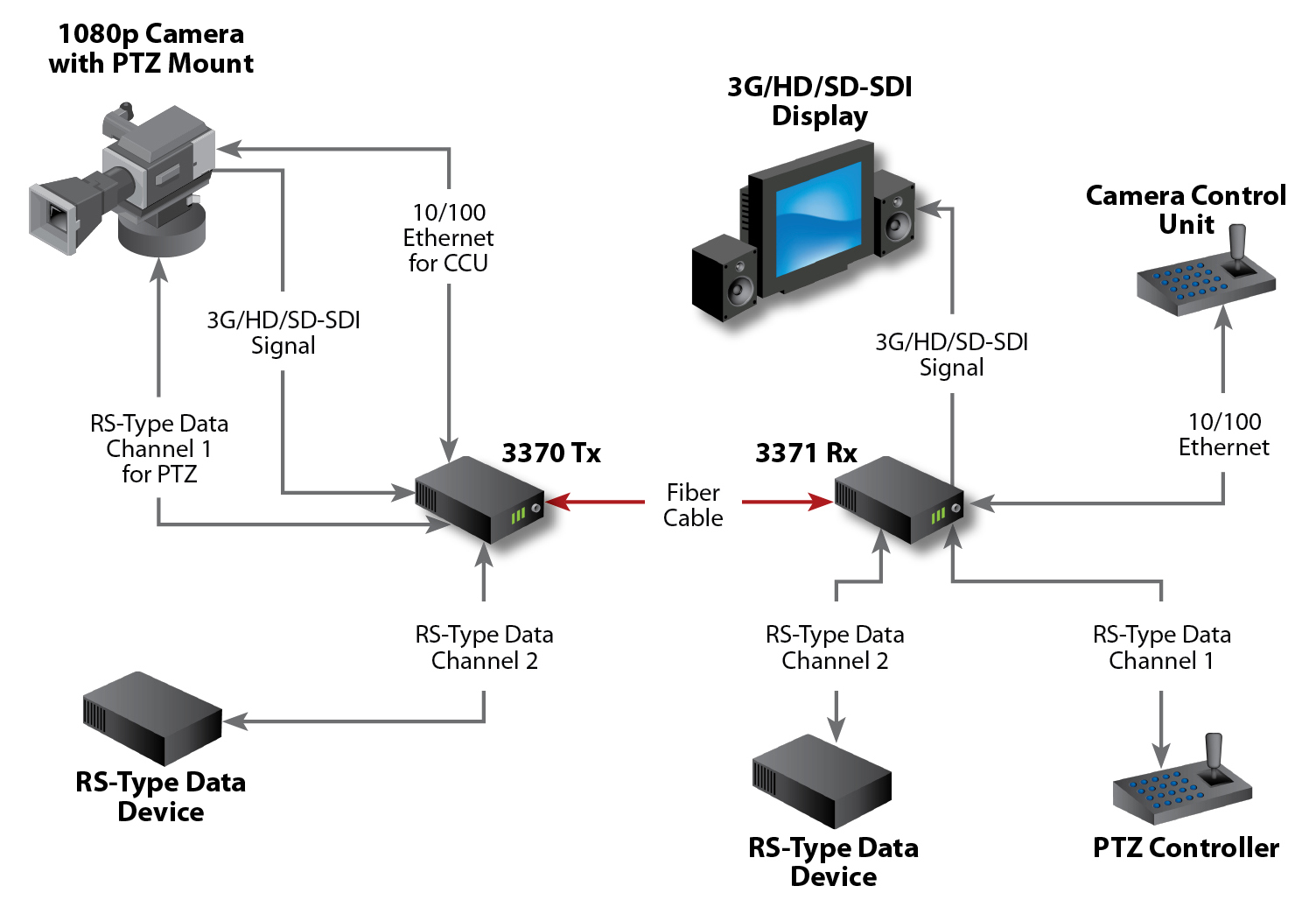

Applications

Features

Offers 3G/HD/SD-SDI & 2 Channels of RS Type Serial Data plus 10/100 Ethernet.
Ideal for broadcast or corporate studios, OB Vans, Point-of-View Cameras, Rental & Staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!
Supports 3G/HD/SD-SDI inputs with or without embedded audio and data.
This product supports HDTV resolutions of 480p, 720p and 1080p.
SMPTE complaint 3G, HD and SD-SDI data rates.
Transmit up to 2 channels of bi-directional RS-Type data.
Transmit 10/100 Base-T Ethernet. All data and ethernet channels available simultaneously.
SDI signal is equalized and re-clocked prior to fiber optic transmission.
Receiver features a re-clocked SDI output.
Immunity to pathological patterns over entire link budget and operating temperature range.
Compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 276M.
Supports one single mode fiber (ST connectors).
14 dB Optical Link Budget @ 2.97 Gbps
Available in Box and Card versions

FiberLink 3370/3371 Rack Card

Ordering

#	Model #	Description	Availability
1	3370-B7S	FiberLink, Model 3370-B7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Tx - Box	Pre-Order Available
2	3370-C7S	FiberLink, Model 3370-C7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Tx - Card - Uses 2 "slots"	Pre-Order Available
3	3371-B7S	FiberLink, Model 3371-B7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Rx - Box	Pre-Order Available
4	3371-C7S	FiberLink, Model 3371-C7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Rx - Card - Uses 2 "slots"	Pre-Order Available

Digital Video, Ethernet + Serial Data Over Fiber
Artel FiberLink 3370 Series 3G/HD/SD-SDI, Ethernet & 2 Channels RS-Type Data over Fiber

The Fiberlink 3370 Series (3370 & 3371) allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet and two channels of RS-Type data over one single mode fiber.
