Products  >  Media Transport  >  Video, Audio & Data Over Fiber Transport  >  Digital Video, Analog Audio, Serial Data, Contact Closure & Ethernet Over Fiber  >  Artel FiberLink 3390/3391 View Printable

Digital Video, Analog Audio, Serial Data, Contact Closure & Ethernet Over Fiber
Artel FiberLink 3390/3391 3G/HD/SD-SDI with Bidirectional Audio, Data, Ethernet and Contact Closure over Fiber

The SDI Flex 3390/3391 allows you to transmit 3G, HD or SD-SDI or DVB-ASI. In addition to pristine, broadcast quality SDI, the Fiberlink SDI Flex 3390 can transmit bi-directional audio, RS-Type data, Ethernet and even contact closure!
Overview
Introducing the Fiberlink ® SDI Flex 3390 Series (3390 & 3391), one of the most versatile and capable broadcast quality fiber optic products available today.

The SDI Flex 3390 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 as well as DVB-ASI. If you have previously embedded audio or data into your SDI signal, the SDI Flex will retain the audio and data, bit-for-bit, throughout the entire transmission process.

In addition to pristine, broadcast quality SDI, the Fiberlink SDI Flex 3390 can transmit bidirectional audio, RS-Type serial data, Ethernet and even contact closure!

Best of all, all channels are independent and available simultaneously! And the SDI Flex 3390 supports: ST connectors, transmission over one fiber, and single mode.

To ensure signal integrity, all signals are equalized prior to fiber optic transmission and re-clocked on the receiver.

Both the transmitter and receiver are immune to pathological signals over the entire budget link and operating temperature range.

Available in card versions and a small footprint box version.

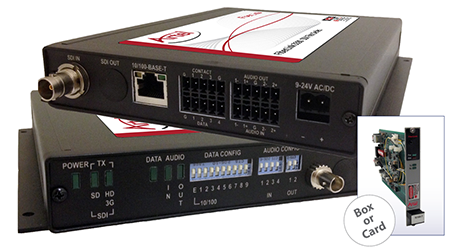

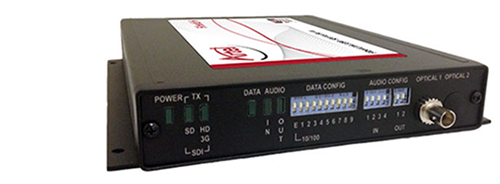

FiberLink 3390/91 Front, Rear, and Card


Applications

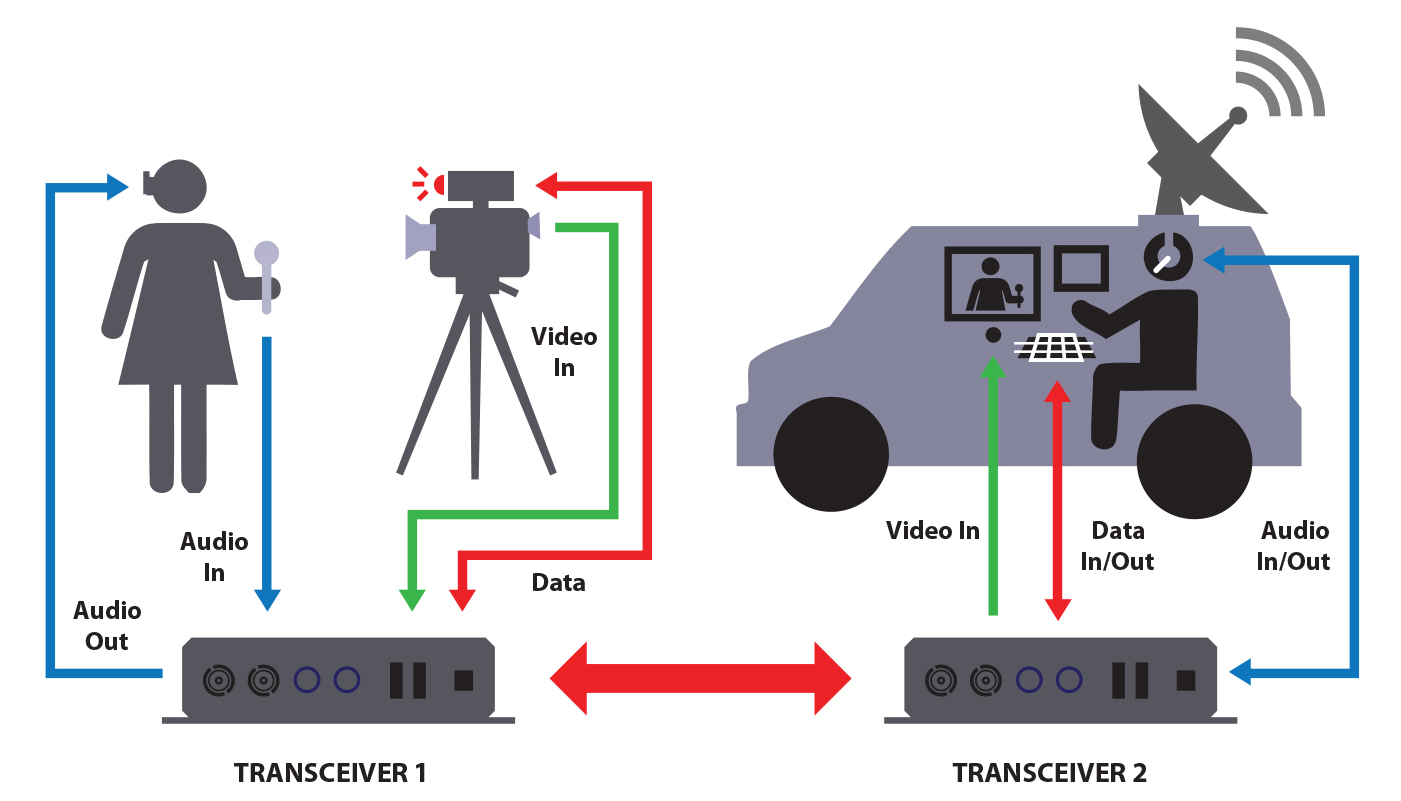

One-Way SDI with Bi-Directional Audio, Data, IP, & Contact Closure on One Fiber


Features
  • 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
  • Bidirectional Audio - This product supports sending two pairs of independent audio, one in each direction.
  • 10/100 Ethernet - This product transmits and receives 10/100 Ethernet.
  • RS-Type Data - This product transmits and receives RS-Type data.
  • Bidirectional Contact Closure - This product supports bidirectional contact closure.
  • Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
  • This product is available in a box or card configuration.
  • ST Connectors

Ordering
# Model # Description Availability
1 3390-B7S FiberLink, Model 3390-B7S, Fiberlink One-Way 3G/HD/SD-SDI. Two-Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Box. Tx Pre-Order Available
2 3390-C7S FiberLink, Model 3390-C7S, Fiberlink One-Way 3G/HD/SD-SDI. Two-Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Card. Tx. Uses 2 "slots". Pre-Order Available
3 3391-B7S FiberLink, Model 3391-B7S, Fiberlink One-Way 3G/HD/SD-SDI. Two-Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Box. Rx Pre-Order Available
4 3391-C7S FiberLink, Model 3391-C7S, Fiberlink One-Way 3G/HD/SD-SDI. Two-Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Card. Rx. Uses 2 "slots". Pre-Order Available
