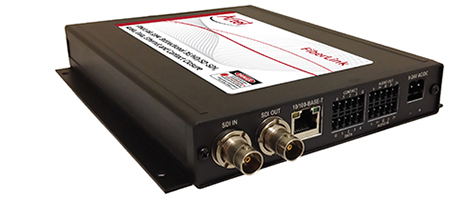

Patton FiberLink 3396/3397

Overview

The Fiberlink ® SDI Flex Series (3394, 3395, 3396, 3397) is a versatile broadcast-quality fiber optic solution that allows you to transmit bidirectional 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 as well as DVB-ASI.

If you have previously embedded audio or data into your SDI signal, the SDI Flex will retain the audio and data, bit-for-bit, throughout the entire transmission process.

In addition to pristine, broadcast quality SDI, the Fiberlink SDI Flex series can transmit bidirectional audio, RS-Type data, Ethernet and even contact closure! Best of all, all channels are independent and available simultaneously!

The SDI Flex Series is designed with ST connectors for transmission over one or two single mode fibers. To ensure signal integrity, all signals are equalized prior to fiber optic transmission and re-clocked on the receiver. Both the transmitter and receiver are immune to pathological signals over the entire budget link and operating temperature range.

Available in card versions and a small footprint box version, it is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

Applications

Bi-Directional SDI, Audio, Data, Ethernet, & Contact Closure on Two Fibers

Features

Bidirectional 3G/HD/SD-SDI, Audio, Data, Ethernet and Contact Closure over Fiber.
One-fiber (3394 & 3395) and two-fiber (3396 & 3397) versions for single mode fiber types.
This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
All channels are independent and available simultaneously.
Transmits and receives 10/100 Ethernet.
Transmits and receives RS-Type serial data.
Supports bidirectional contact closure.
SDI signal is equalized and re-clocked prior to fiber optic transmission.
SDI output is re-clocked after optical reception
ASI signals are also supported.
Compliant with all applicable SMPTE standards.
Wide operating temperature range: -10C to +50C.
Available in Box and Card versions.
Dip Switches allow for quick selection of your audio & data configuration.
Front Panel LEDs quickly reveal the Video, Audio and Data status.
Available as a box or a card to fit the 6000A rackmount chassis.

Ordering

#	Model #	Description	Availability
1	3396-B7S	FiberLink, Model 3396-B7S, Fiberlink Two Way 3G/HD/SD-SDI, 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 2 Fibers. ST. Box. Xr	Pre-Order Available
2	3396-C7S	FiberLink, Model 3396-C7S, Fiberlink Two Way 3G/HD/SD-SDI, 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 2 Fibers. ST. Card. Xr. Uses 2 "slots"	Pre-Order Available
3	3397-B7S	FiberLink, Model 3397-B7S, Fiberlink Two Way 3G/HD/SD-SDI, 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 2 Fibers. ST. Box. Xr	Pre-Order Available
4	3397-C7S	FiberLink, Model 3397-C7S, Fiberlink Two Way 3G/HD/SD-SDI, 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 2 Fibers. ST. Card. Xr. Uses 2 "slots"	Pre-Order Available

Digital Video, Analog Audio, Serial Data, Contact Closure & Ethernet Over Fiber
Artel FiberLink 3396/3397 Bidirectional 3G/HD/SD-SDI, Audio, Data, Ethernet and Contact Closure over Two Fibers

The SDI Flex 3396 Series (3396 & 3397) allows you to transmit bidirectional 3G, HD or SD-SDI or DVB-ASI. In addition to pristine, broadcast quality SDI, the Fiberlink SDI Flex 3394 can transmit bidirectional audio, RS-Type data, Ethernet and even contact closure!
