Multi-Channel Digital Video Over Fiber

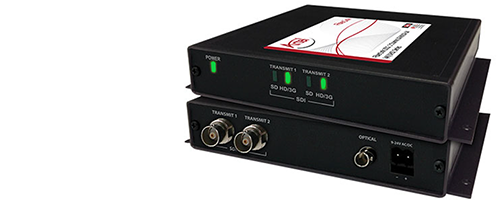

Artel FiberLink 3512A/3513A 2 Channel 3G/HD/SD-SDI (4K/UHD) over one Fiber

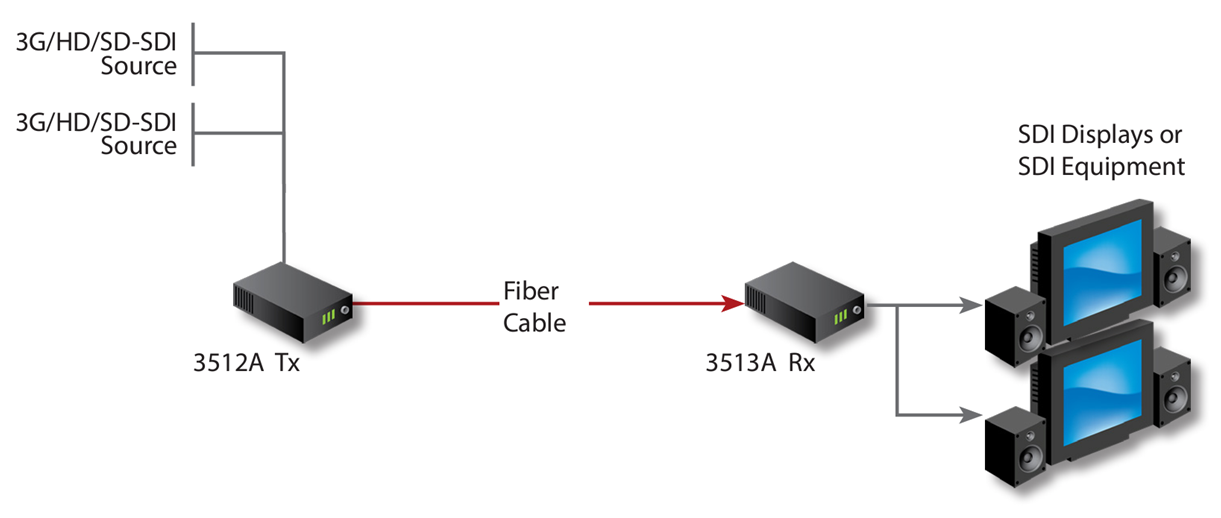

The Fiberlink 3512 series supports 2 channels of independent 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over one single mode or multimode fiber. Fiberlink 3512 supports 4K/UHD resolutions at 30 fps.

• Supports 4K/UHD - This product supports 4K/UHD resolutions. Refer to datasheet for more information.
• 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
• HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
• Multiple Video Channels - This product supports multiple video channels. Refer to the datasheet for more information.
• Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
• Multimode Fiber - This product comes in a version that supports Multimode Fiber.
• Box and Card - This product is available in a box or card configuration.
• ST Connectors

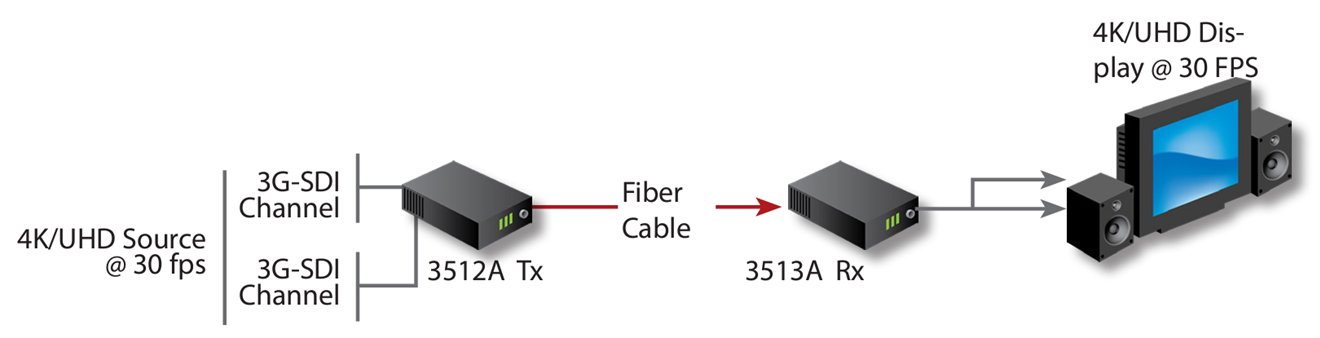

The Fiberlink 3512 series supports 2 channels of independent 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over one single mode or multimode fiber. When using all inputs, Fiberlink 3512 supports 4K/UHD resolutions at 30 fps.

All SMPTE compliant signals are equalized and reclocked. Each receiver features two reclocked, non-inverting BNC outputs. The 3512 Series is compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 305M-2005, 310M-2004, 344M-2000 and DVB-ASI. The series is immune to pathological patterns over entire link budget and operating temperature range. For maximum flexibility, the units may be configured with ST optical connectors.

Fiberlink 3512 Series is ideal for any broadcast or professional video application: broadcast studios, sporting events, confidence monitoring, OB vans, video conferencing and more!

Fiberlink 3512 is also available in a 4 channel version, Fiberlink 3514 Series.
