Multi-Channel Digital Video Over Fiber
Artel FiberLink 3516/3517 2 Channel Bidirectional 3G/HD/SD-SDI over one Fiber

The Fiberlink 3514 Series allows you to transmit four 3G, HD or SD-SDI signals (4K/UHD) as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data over one fiber.

• 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
• HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
• Multiple Video Channels - This product supports multiple video channels. Refer to the datasheet for more information.
• Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
• Box and Card - This product is available in a box or card configuration.
• ST Connectors - This product can be ordered with ST optical connectors.

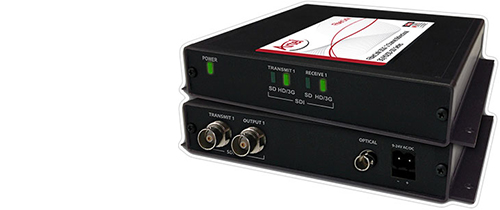

FiberLink 3516/3517 Rack Card

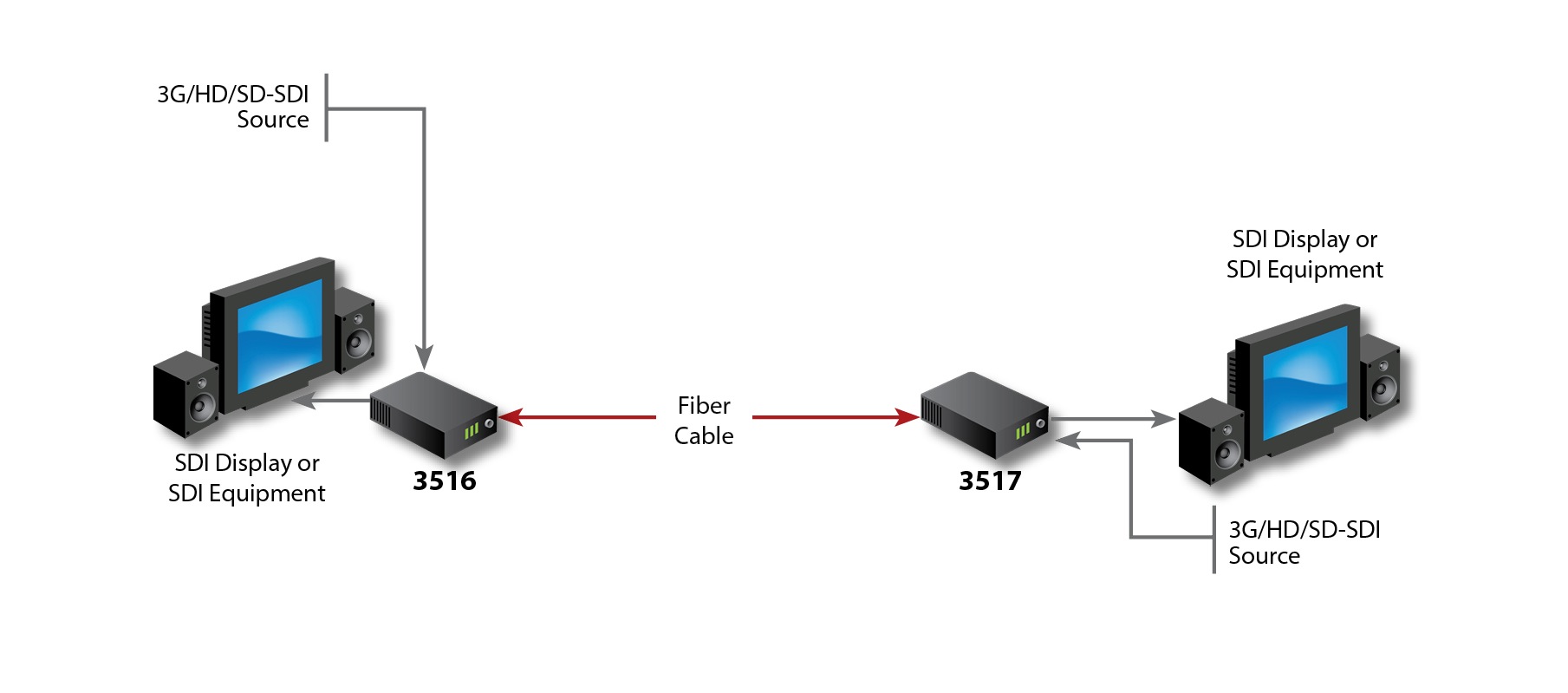

The Fiberlink 3516 series supports 2 channels of independent, bidirectional 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over one single mode fiber. Now, you can send one 3G/HD/SD-SDI signal upstream and one 3G/HD/SD-SDI signal downstream!

All SMPTE compliant signals are equalized and reclocked. Each receiver features two reclocked, non-inverting BNC outputs. The 3516 Series is compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 305M-2005, 310M-2004, 344M-2000 and DVB-ASI. The series is immune to pathological patterns over entire link budget and operating temperature range. Units are configured with ST optical connectors.

Fiberlink 3516 Series is ideal for any broadcast or professional video application: broadcast studios, sporting events, confidence monitoring, OB vans, video conferencing and more!

Fiberlink 3516 is also available in a 4 channel version, Fiberlink 3518 Series.

Fiberlink 3516 is also available in a 2 fiber version, Fiberlink 3526 Series.
