Patton FiberLink 4160 Series

Overview

The Fiberlink 4160 Series digitally transmits sixteen independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.

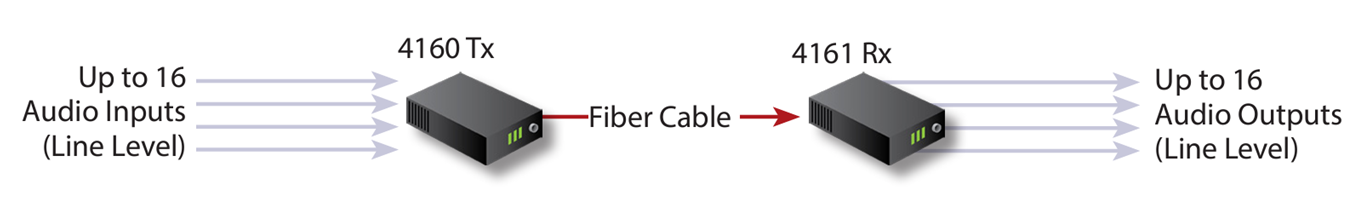

The system consists of transmitter and receiver unit. No adjustments needed: pure digital processing and transmission, The unit offers optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response. Line level, balanced or unbalanced audio operation, Indicator LEDs monitor audio signals and power.

Comes with a wide range internal power supply as a standalone or rackmount unit stands. Rackmount ears are included.

Applications

Features

Multiple Audio Channels - This product supports multiple channels of audio. Refer to the datasheet for more information.
Single Mode and Multimode Fiber - This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks. 850, 1310 or 1550 nm.
Redundant - Optional redundant optical input/output System consists of transmitter and receiver unit.
No adjustments - Pure digital processing and transmission 24 bit/96 kHz sampling; maximum audio level +24 dBu.
Balanced or Unbalanced - Line level, balanced or unbalanced audio operation.

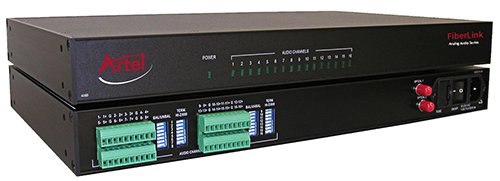

Standalone or Rackmount - 1 RU high Rackmount ears are included.

Ordering

#	Model #	Description	Availability
1	4160-SN10-EU	FiberLink, Model 4160-SN10-EU, 16ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
2	4160-SN10-NA	FiberLink, Model 4160-SN10-NA, Fiberlink 16Ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
3	4160-SN10-UK	FiberLink, Model 4160-SN10-UK, 16ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
4	4160-SN30-AU	FiberLink, Model 4160-SN30-AU, 16ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
5	4160-SN30-EU	FiberLink, Model 4160-SN30-EU, 16ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
6	4160-SN30-NA	FiberLink, Model 4160-SN30-NA, Fiberlink 16Ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
7	4160-SN70-AU	FiberLink, Model 4160-SN70-AU, 16ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
8	4160-SN70-EU	FiberLink, Model 4160-SN70-EU, 16ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
9	4160-SN70-NA	FiberLink, Model 4160-SN70-NA, Fiberlink 16Ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
10	4160-SN70-UK	FiberLink, Model 4160-SN70-UK, 16ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
11	4160-SN90-NA	FiberLink, Model 4160-SN90-NA, Fiberlink 16Ch Audio Tx, 1550nm SM, Single Output, ST Connector	Pre-Order Available
12	4160-SS11-NA	FiberLink, Model 4160-SS11-NA, Fiberlink 16Ch Audio Tx, 850nm MM, Dual Output, ST Connector	Pre-Order Available
13	4160-SS11-UK	FiberLink, Model 4160-SS11-UK, 16ch Audio Tx, 850nm MM, Dual Output, ST Connector	Pre-Order Available
14	4160-SS31-NA	FiberLink, Model 4160-SS31-NA, 16ch Audio Tx, Dual Output, 1 ch 1310nm MM, 1 ch 850nm MM, ST Connectors	Pre-Order Available
15	4160-SS33-EU	FiberLink, Model 4160-SS33-EU, 16ch Audio Tx, 1310nm MM, Dual Output, ST Connector	Pre-Order Available
16	4160-SS77-EU	FiberLink, Model 4160-SS77-EU, 16ch Audio Tx, 1310nm SM, Dual Output, ST Connector	Pre-Order Available
17	4160-SS77-NA	FiberLink, Model 4160-SS77-NA, Fiberlink 16Ch Audio Tx, 1310nm SM, Dual Output, ST Connector	Pre-Order Available
18	4161-SN10-EU	FiberLink, Model 4161-SN10-EU, 16ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
19	4161-SN10-NA	FiberLink, Model 4161-SN10-NA, Fiberlink 16Ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
20	4161-SN10-UK	FiberLink, Model 4161-SN10-UK, 16ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
21	4161-SN30-AU	FiberLink, Model 4161-SN30-AU, 16ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
22	4161-SN30-EU	FiberLink, Model 4161-SN30-EU, 16ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
23	4161-SN30-NA	FiberLink, Model 4161-SN30-NA, Fiberlink 16Ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
24	4161-SN70-AU	FiberLink, Model 4161-SN70-AU, 16ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
25	4161-SN70-EU	FiberLink, Model 4161-SN70-EU, 16ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
26	4161-SN70-NA	FiberLink, Model 4161-SN70-NA, Fiberlink 16Ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
27	4161-SN70-UK	FiberLink, Model 4161-SN70-UK, 16ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
28	4161-SN90-NA	FiberLink, Model 4161-SN90-NA, Fiberlink 16Ch Audio Rx, 1550nm SM, Single Input, ST Connector	Pre-Order Available
29	4161-SS11-NA	FiberLink, Model 4161-SS11-NA, Fiberlink 16Ch Audio Rx, 850nm MM, Dual Input, ST Connector	Pre-Order Available
30	4161-SS11-UK	FiberLink, Model 4161-SS11-UK, 16ch Audio Rx, 850nm MM, Dual Input, ST Connector	Pre-Order Available
31	4161-SS31-NA	FiberLink, Model 4161-SS31-NA, 16ch Audio Rx, Dual Input, 1 ch 1310nm MM, 1 ch 850nm MM, ST Connectors	Pre-Order Available
32	4161-SS33-EU	FiberLink, Model 4161-SS33-EU, 16ch Audio Rx, 1310nm MM, Dual Input, ST Connector	Pre-Order Available
33	4161-SS77-EU	FiberLink, Model 4161-SS77-EU, 16ch Audio Rx, 1310nm SM, Dual Input, ST Connector	Pre-Order Available
34	4161-SS77-NA	FiberLink, Model 4161-SS77-NA, Fiberlink 16Ch Audio Rx, 1310nm SM, Dual Input, ST Connector	Pre-Order Available

Analog Audio Over Fiber
Artel FiberLink 4160 Series 16 Channels of Independent Audio over one Fiber

The Fiberlink 4160 Series (4160 & 4161) digitally transmits sixteen independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.
