Patton FiberLink 4320 Series

Overview
The Fiberlink 4320 Series digitally transmits thirty-two independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.

The system consists of transmitter and receiver unit. No adjustments needed; pure digital processing and transmission. Optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response.

Line level, balanced or unbalanced audio operation. Indicators LEDs to monitor audio signals and power. Comes with a wide range internal power supply.

The unit can be used as a standalone unit or racked in1 RU of rack space. Rackmount ears are included.

Applications

Features

Multiple Audio Channels - This product supports multiple channels of audio.
Single Mode and Multimode Fiber - This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks. 850, 1310 or 1550 nm.
Redundant - Optional redundant optical input/output

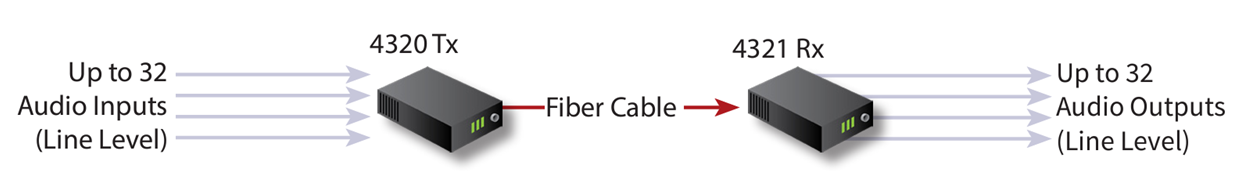

Transmit & Receive - System consists of transmitter (4320) and receiver (4321) unit.
Balanced or Unbalanced - Line level, balanced or unbalanced audio operation
Power Options - Wide range internal power supply.
Standalone or Rack - 1 RU high Rackmount ears are included.

Ordering

#	Model #	Description	Availability
1	4320-SN10-EU	FiberLink, Model 4320-SN10-EU, 32ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
2	4320-SN10-NA	FiberLink, Model 4320-SN10-NA, Fiberlink 32Ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
3	4320-SN10-UK	FiberLink, Model 4320-SN10-UK, 32ch Audio Tx, 850nm MM, Single Output, ST Connector	Pre-Order Available
4	4320-SN30-EU	FiberLink, Model 4320-SN30-EU, 32ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
5	4320-SN30-NA	FiberLink, Model 4320-SN30-NA, Fiberlink 32Ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
6	4320-SN30-UK	FiberLink, Model 4320-SN30-UK, 32ch Audio Tx, 1310nm MM, Single Output, ST Connector	Pre-Order Available
7	4320-SN70-NA	FiberLink, Model 4320-SN70-NA, Fiberlink 32Ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
8	4320-SN70-UK	FiberLink, Model 4320-SN70-UK, 32ch Audio Tx, 1310nm SM, Single Output, ST Connector	Pre-Order Available
9	4320-SS11-EU	FiberLink, Model 4320-SS11-EU, 32ch Audio Tx, 850nm MM, DualOutput, ST Connector	Pre-Order Available
10	4320-SS11-NA	FiberLink, Model 4320-SS11-NA, Fiberlink 32Ch Audio Tx, 850nm MM, Dual Output, ST Connector	Pre-Order Available
11	4320-SS11-UK	FiberLink, Model 4320-SS11-UK, 32ch Audio Tx, 850nm MM, DualOutput, ST Connector	Pre-Order Available
12	4320-SS33-EU	FiberLink, Model 4320-SS33-EU, Fiberlink 32Ch Audio Tx, 1310nm MM, Dual Output, ST Connector	Pre-Order Available
13	4320-SS33-NA	FiberLink, Model 4320-SS33-NA, Fiberlink 32Ch Audio Tx, 1310nm MM, Dual Output, ST Connector	Pre-Order Available
14	4320-SS77-NA	FiberLink, Model 4320-SS77-NA, Fiberlink 32Ch Audio Tx, 1310nm SM, Dual Output, ST Connector	Pre-Order Available
15	4321-SN10-EU	FiberLink, Model 4321-SN10-EU, 32ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
16	4321-SN10-NA	FiberLink, Model 4321-SN10-NA, Fiberlink 32Ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
17	4321-SN10-UK	FiberLink, Model 4321-SN10-UK, 32ch Audio Rx, 850nm MM, Single Input, ST Connector	Pre-Order Available
18	4321-SN30-EU	FiberLink, Model 4321-SN30-EU, 32ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
19	4321-SN30-NA	FiberLink, Model 4321-SN30-NA, Fiberlink 32Ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
20	4321-SN30-UK	FiberLink, Model 4321-SN30-UK, 32ch Audio Rx, 1310nm MM, Single Input, ST Connector	Pre-Order Available
21	4321-SN70-NA	FiberLink, Model 4321-SN70-NA, Fiberlink 32Ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
22	4321-SN70-UK	FiberLink, Model 4321-SN70-UK, 32ch Audio Rx, 1310nm SM, Single Input, ST Connector	Pre-Order Available
23	4321-SS11-EU	FiberLink, Model 4321-SS11-EU, 32ch Audio Rx, 850nm MM, DualInput, ST Connector	Pre-Order Available
24	4321-SS11-NA	FiberLink, Model 4321-SS11-NA, Fiberlink 32Ch Audio Rx, 850nm MM, Dual Input, ST Connector	Pre-Order Available
25	4321-SS11-UK	FiberLink, Model 4321-SS11-UK, 32ch Audio Rx, 850nm MM, DualInput, ST Connector	Pre-Order Available
26	4321-SS33-EU	FiberLink, Model 4321-SS33-EU, Fiberlink 32Ch Audio Rx, 1310nm MM, Dual Input, ST Connector	Pre-Order Available
27	4321-SS33-NA	FiberLink, Model 4321-SS33-NA, Fiberlink 32Ch Audio Rx, 1310nm MM, Dual Input, ST Connector	Pre-Order Available
28	4321-SS77-NA	FiberLink, Model 4321-SS77-NA, Fiberlink 32Ch Audio Rx, 1310nm SM, Dual Input, ST Connector	Pre-Order Available

Analog Audio Over Fiber
Artel FiberLink 4320 Series 32 Channels of Independent Audio over one Fiber

The Fiberlink 4320 Series (4320 & 4321) digitally transmits 32 independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.
