Patton FiberLink 5200 Series

Overview

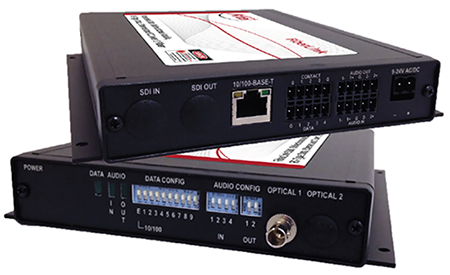

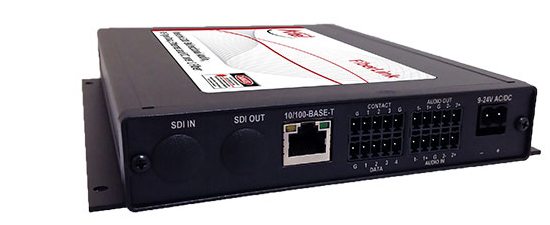

The Fiberlink 5200 Series transmits bidirectional audio, RS-Type Data, 10/100 Base-T Ethernet and contact closure over one single mode or multi-mode fiber optic cable.

All channels are independent and are simultaneously available offering unrivaled flexibility in one product: deploy it for audio and Ethernet today, redeploy it for audio, RS-Type Data, Ethernet and contact closure tomorrow!

All signals are bidirectional and travel to an astonishing distance of 30km when used with single mode fiber. Of course, you can use 50u and 62.5u multi-mode fiber as well to impressive distances of 1km and 0.8km respectively.

The Fiberlink 5200 Series is designed optics providing stable, predictable and long-lasting performance. Fiberlink 5200 supports the most common RS formats: RS-232, RS-422 & RS-485 4 wire or 2 wire.

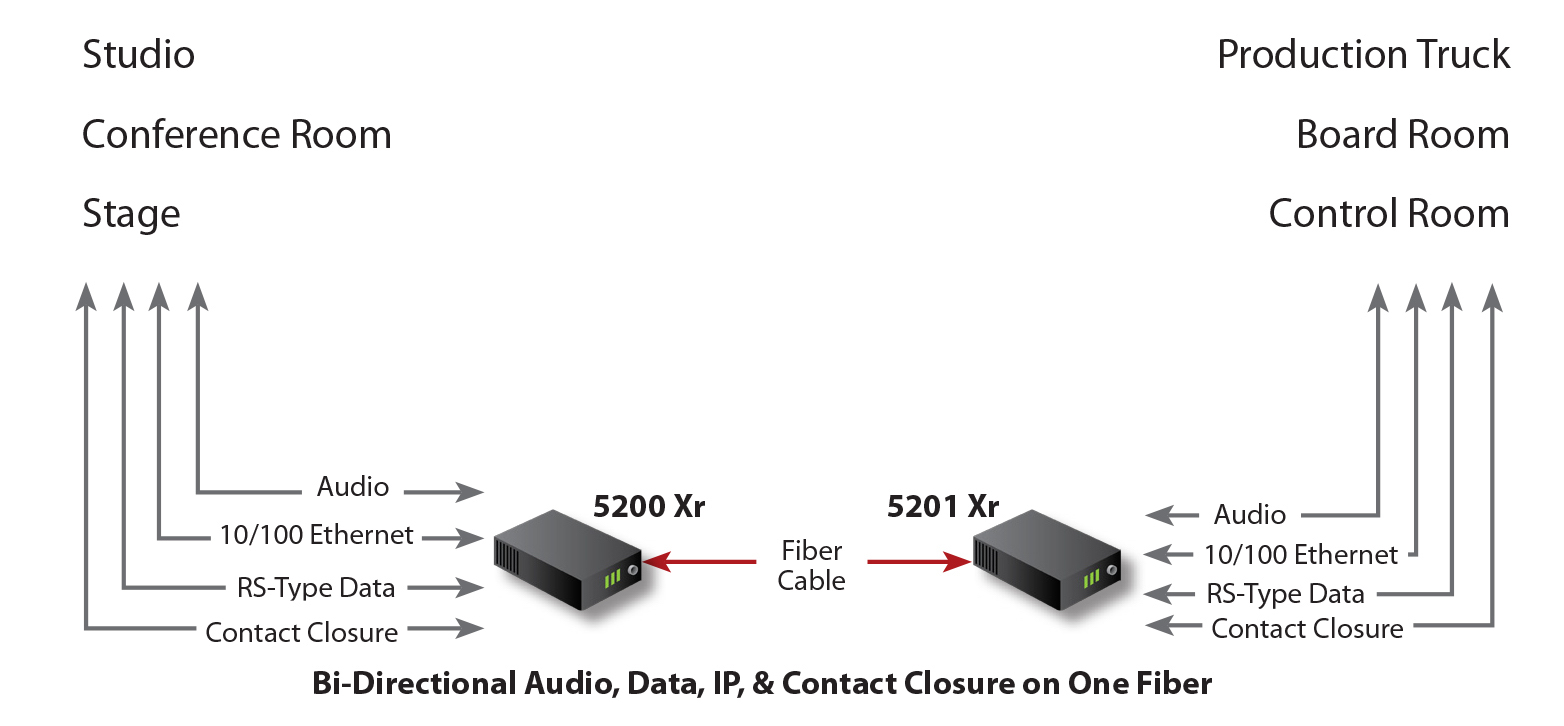

The applications in which the Fiberlink 5200 Series can be used are endless, but it is ideal for broadcast or corporate studios, OB Vans, Point-of-View Cameras, Rental & Staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

Applications

Features

Bidirectional Audio - This product supports sending two pairs of independent audio, one in each direction.
10/100 Ethernet - This product transmits and receives 10/100 Ethernet.
RS-Type Data - This product transmits and receives RS-Type data.
Bidirectional Contact Closure - This product supports bidirectional contact closure.
Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
Multimode Fiber - This product comes in a version that supports Multimode Fiber.

Ordering

#	Model #	Description	Availability
1	5200-B3S	FiberLink, Model 5200-B3S, Fiberlink Two Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. MM. 1 Fiber. ST. Box. Xr	Pre-Order Available
2	5200-B7S	FiberLink, Model 5200-B7S, Fiberlink Two Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Box. Xr	Pre-Order Available
3	5201-B3S	FiberLink, Model 5201-B3S, Fiberlink Two Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. MM. 1 Fiber. ST. Box. Xr	Pre-Order Available
4	5201-B7S	FiberLink, Model 5201-B7S, Fiberlink Two Way 2ch audio, RS-Data, 10/100BaseT, Contact Closure. SM. 1 Fiber. ST. Box. Xr	Pre-Order Available

Analog Audio, Serial Data, Contact Closure & Ethernet Over Fiber
Artel FiberLink 5200 Series Bidirectional Audio, RS-Type Data, Ethernet and Contact Closure over one Fiber

The Fiberlink 5200 Series (5200 & 5201) transmits bidirectional audio, RS-Type Data, 10/100 Base-T Ethernet and contact closure over one single mode or multi-mode fiber optic cable.
