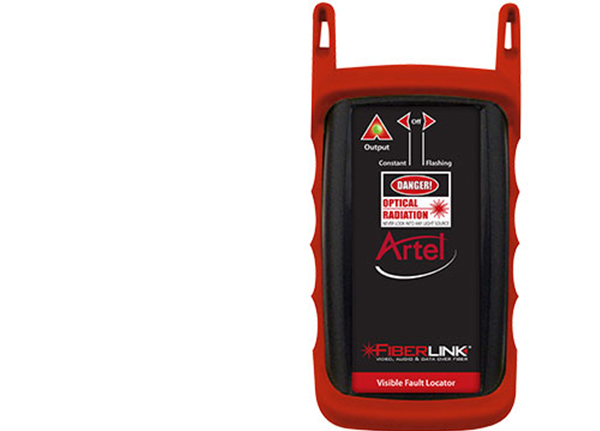

Artel FiberLink 6656 Visible Fault Locator

Fiberlink 6656 Visible Fault Locator is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers, especially at fiber launch points or in OTDR dead zones.

• High-intensity visible laser allows for visible fault location of breaks and microbends in both single-mode and multimode fibers.
• Both Constant mode and Flashing mode allow for easy fiber identification.
• 2.5mm universal connector port allows connection to ST, SC, and FC connectors.
• Simple single-switch operation.
• Constant Mode - 15 hours use on one 9v battery.
• Flashing Mode - 120 hours use on one 9v battery.
• Low -battery indicator.
• Comes equipped with a rugged and durable rubber boot to protect the instrument from drops and other hazards.

Fiberlink 6656 Visible Fault Locator is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers, especially at fiber launch points or in OTDR dead zones.

A high-intensity visible red laser beam is precision-coupled into a optical fiber; breaks and micro-bends in the fiber deflect the red light into the fiber jacket, producing a red glow at the point of the fault.

Additionally, the Fiberlink 6656 can be used as an end-to-end visual fiber identifier, which is useful for locating fibers terminated in poorly labeled or unlabeled fiber patch panels.

A single switch is used to operate the Fiberlink 6656, toggling the unit between OFF, Constant and Flashing modes.

Typical battery life in Constant mode is 15 hours, and the short 12.5% duty cycle in Flashing mode extends the battery life to 120 hours of continuous use.

The Fiberlink 6656 ships standard with a 2.5mm universal connector port, which allows for connection to ST, SC, and FC connectors.
