Overview

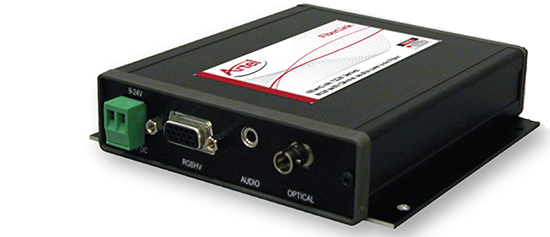

The Fiberlink 7220 Series (7220 transmitter and 7221 receiver) digitally transmits high-resolution RGB (up to WXGA) and stereo audio over one single mode or multimode fiber optic core at 1310 nm wavelength.
Ideal for point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480 up to 1366 x 768 ) and HDTV resolutions of 480p, 720p, and 1080i (RGBHV format only). Features low audio/video skew, <300 uSec.
The 7220 Series uses all digital processing with no compression resulting in crystal clear transmission with no color pixel skewing. It requires no adjustments, equalization, or deskewing and is ideal for Digital signage, command and control centers, auditoriums, stadiums and theaters, transportation hubs, distance learning, surgical and medical imaging applications.

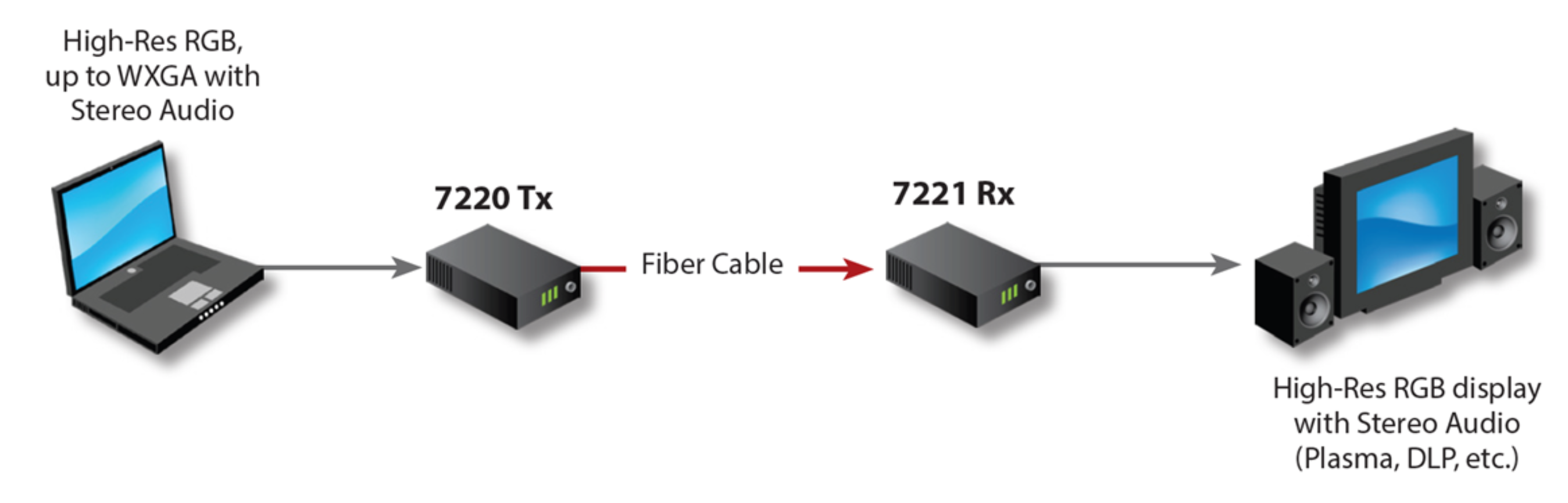

Applications
