Patton FiberLink 7514/7515

Overview

The Fiberlink 7514 Series supports DVI transmission (up to 1920x1200) and stereo audio over one single mode or multimode fiber without compression, scaling or adjustments. It is ideal for Digital signage, broadcast or corporate studio, auditorium, stadium and theater, airport or transportation hub, distance learning, and surgical or medical imaging applications, to name a few!

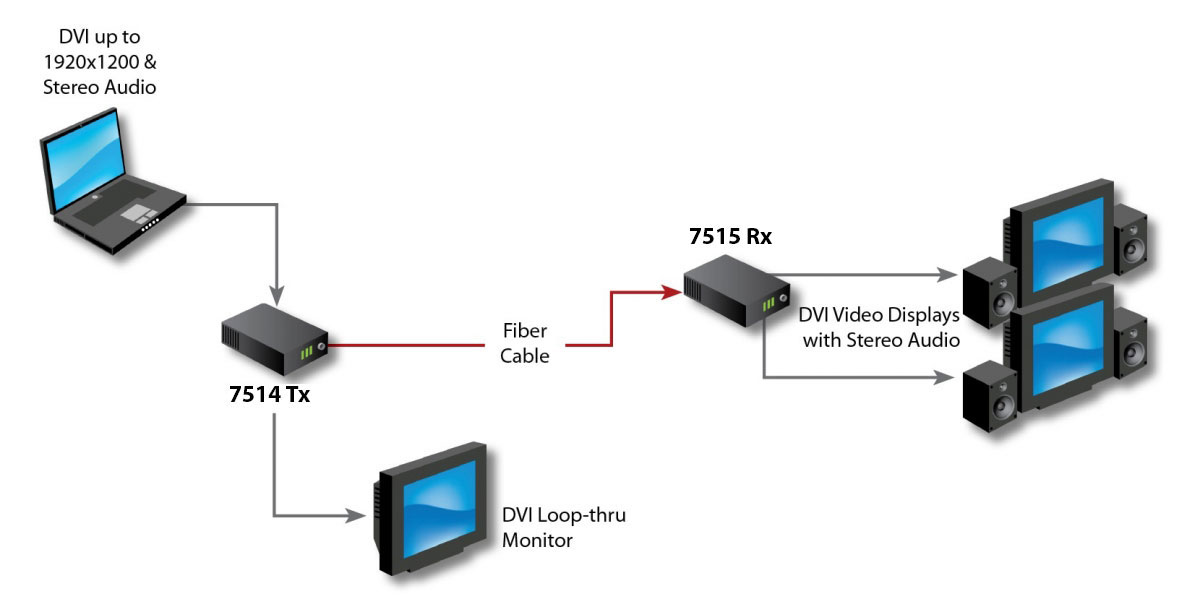

The 7514 transmitter box provides a convenient DVI loop-thru port and the 7515 receiver provides 2 DVI outputs along with stereo audio.

The 7514 transmitter will generate EDID information internally, acquire it via the DVI loop-thru, or you may capture and store EDID information. Dual Optical Output Version Available (MM version only).

Not compatible with Fiberlink 7500, 7501 and 7502, 7510, 7511, 7512.

Applications

Features

HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p.
Stereo Audio - This product transmits two channels (stereo) of audio.
Single Mode Fiber - This product comes in a version that supports Single Mode Fiber.
Multimode Fiber - This product comes in a version that supports Multimode Fiber.
Transmit & Receive - 7514 - Transmit, 7515 = Receive.
Box and Card - This product is available in a box or card configuration.

Ordering

#	Model #	Description	Availability
1	7514-B1S	FiberLink, Model 7514-B1S, Fiberlink DVI / Stereo Audio, 850nm, MM, ST, Tx, 1 fiber - Box	Pre-Order Available
2	7514-B7S	FiberLink, Model 7514-B7S, Fiberlink DVI / Stereo Audio, 1310nm, SM, ST, Tx, 1 fiber - Box	Pre-Order Available
3	7514-C1S	FiberLink, Model 7514-C1S, Fiberlink DVI / Stereo Audio, 850nm, MM, ST, Tx, 1 fiber - Card - Uses 3 "slots"	Pre-Order Available
4	7514-C7S	FiberLink, Model 7514-C7S, Fiberlink DVI / Stereo Audio, 1310nm, SM, ST, Tx, 1 fiber - Card - Uses 3 "slots"	Pre-Order Available
5	7515-B1S	FiberLink, Model 7515-B1S, Fiberlink DVI / Stereo Audio, 850nm, MM, ST, Rx, 1 fiber - Box	Pre-Order Available
6	7515-B7S	FiberLink, Model 7515-B7S, Fiberlink DVI / Stereo Audio, 1310nm, SM, ST, Rx, 1 fiber - Box	Pre-Order Available
7	7515-C1S	FiberLink, Model 7515-C1S, Fiberlink DVI / Stereo Audio, 850nm, MM, ST, Rx, 1 fiber - Card - Uses 3 "slots"	Pre-Order Available
8	7515-C7S	FiberLink, Model 7515-C7S, Fiberlink DVI / Stereo Audio, 1310nm, SM, ST, Rx, 1 fiber - Card - Uses 3 "slots"	Pre-Order Available
Accessories
9	PDPS-2-AU	FiberLink, Model PDPS-2-AU, Universal Power Supply (100-240VAC, 50/60Hz to 12VDC / 1.5A)	Pre-Order Available
10	PDPS-2-EU	FiberLink, Model PDPS-2-EU, Universal Power Supply (100-240VAC, 50/60Hz to 12VDC / 1.5A)	Pre-Order Available
11	PDPS-2-JP	FiberLink, Model PDPS-2-JP, Universal Power Supply (100-240VAC, 50/60Hz to 12VDC / 1.5A)	Pre-Order Available
12	PDPS-2-NA	FiberLink, Model PDPS-2-NA, Fiberlink Universal Power Supply (100-240VAC, 50/60Hz to 12VDC / 1.5A)	Pre-Order Available
13	PDPS-2-UK	FiberLink, Model PDPS-2-UK, Universal Power Supply (100-240VAC, 50/60Hz to 12VDC / 1.5A)	Pre-Order Available
