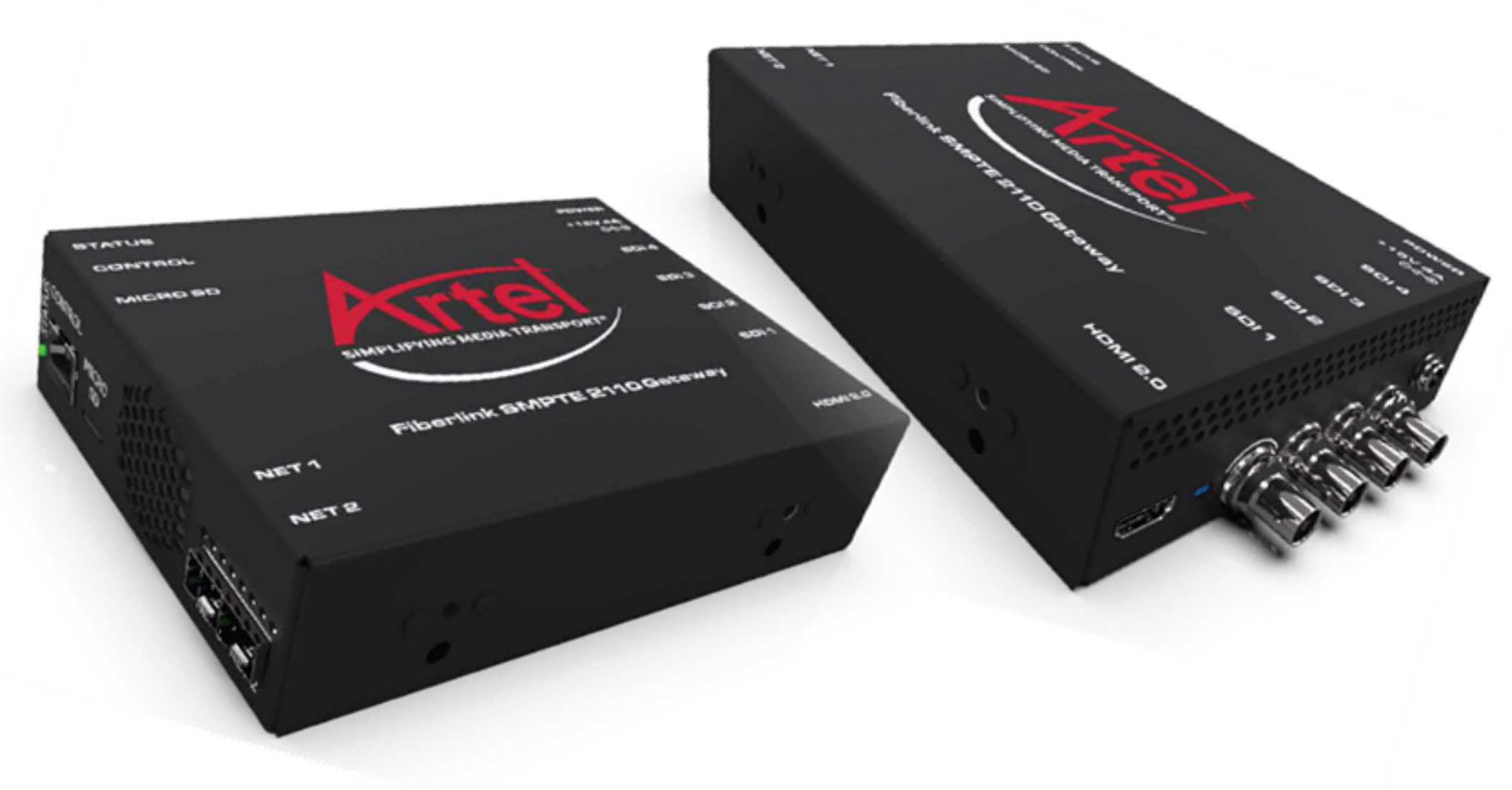

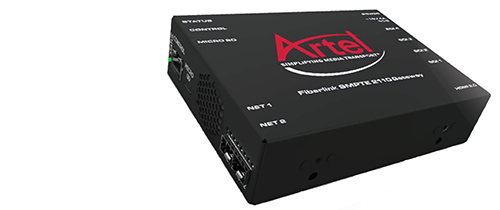

Patton FiberLink FL ST2110 Gateway

Overview

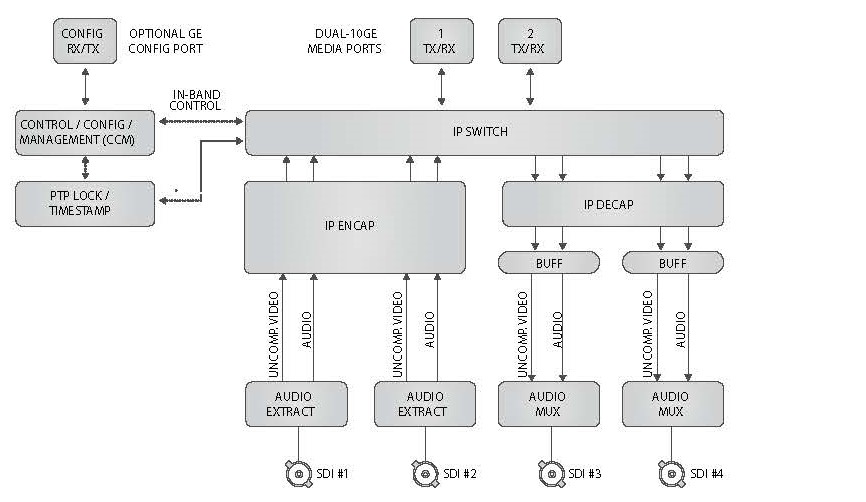

The FiberLink FL ST2110 series supports 2 channels (2 In/2 Out) of independent 3G/HD-SDI signals and provides a gateway function using ST2110 into dual 10GE media port. The FL ST2110 Gateway adapts to rapidly changing IP environments, quietly bridging SDI interfaces to JT-NM Tested ST2110 media streams.

It can be managed using open control protocols such as NMOS, EmBER+, and DashBoard, etc., thus providing flexibility to be used in different environments. Designed with studio applications in mind and mounting flexibility. SMPTE ST 2110 suite, including:

-10, System Timing and Definitions
-20, Uncompressed Active Video
-21, narrow sender & wide receiver
-30, PCM Digital Audio, Conformance Level A & B & C

SMPTE ST 2022-7 – Seamless Protection Switching 2 video streams up to 1080p 32+32audio streams with WAN buffering. 16 audio channels embed/extract per SDI interface, with shuffle. Open Control gives you the freedom to run from our control system, and/or seamlessly from many 3rd-party control systems (e.g. VSM, Convergent, Magellan, etc.).

Designed with studio applications in mind and mounting flexibility.

Applications

Features

SMPTE ST 2110 suite, including:

-10, System Timing and Definitions
-20, Uncompressed Active Video
-21, narrow sender & wide receiver
-30, PCM Digital Audio, Conformance Level A & B & C

SMPTE ST 2022-7 – Seamless Protection Switching.

2 video streams up to 1080p.

32+32 audio streams with WAN buffering.

16 audio channels embed/extract per SDI interface, with shuffle.

Open Control:

Gives you the freedom to run from our control system, and/or seamlessly from many 3rd-party control systems (e.g. VSM,

Convergent, Magellan, etc.)

1 RJ-45 control port (10/100/1000BASE-T).

Supports both Single Mode and Multimode (62.5u & 50u) fiber types.

VESA, desk, pillar and other mounting via optional brackets.

Optional rack tray provides secure placement of three FL ST2110 gateways, bricks and cable management.

Studio quiet operation.

Ordering

#	Model #	Description	Availability
1	397-030010-00	FiberLink, Model FLST2110, FiberLink ST2110 Gateway, 2-in/2-out SDI/IP Converter	Pre-Order Available
