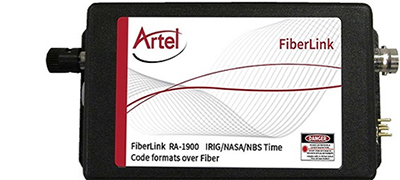

Patton FiberLink RA-1900 & XA-1900

Overview

The Fiberlink XA/RA-1900 fiber optic systems transmit IRIG and similar NASA and NBS standard instrumentation time-code formats over standard multimode or single mode fiber at 850 nm or 1310 nm.

Combinations of four different units may be configured to provide point-to-point, point-to-multipoint or drop-and-repeat signal distribution. Ideal for the Military and Aerospace Industries.

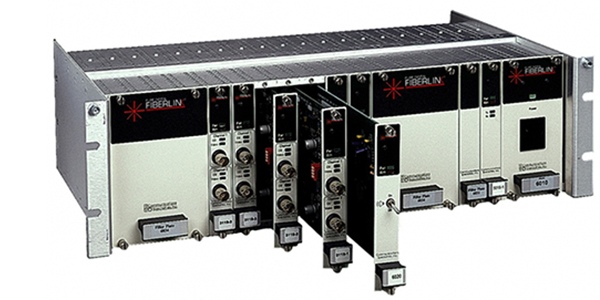

XA/RA-1900 cards fit the 6000A card cage.

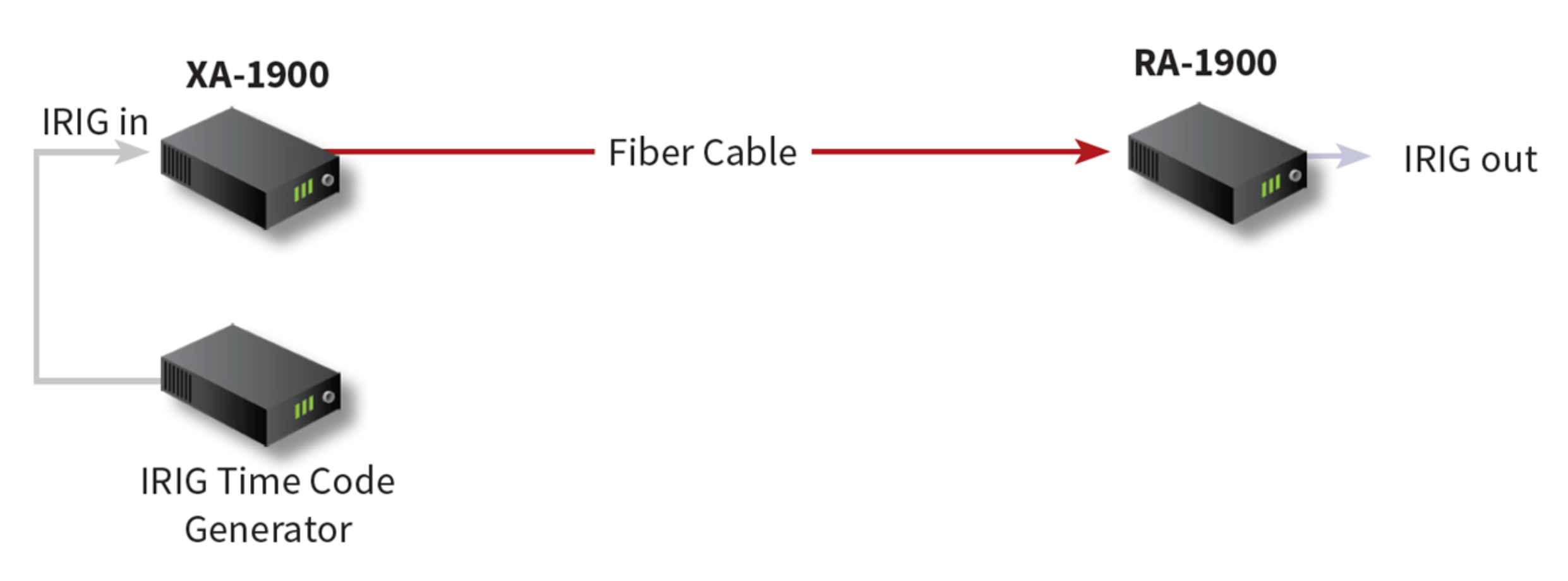

Applications

Features

Built-in regulated power supplies allow operation from unregulated AC or DC sources.
The systems can be configured for four wire modem or AFSK applications.
Each unit must be purchased separately.
XA1900 is the Transmit side and the RA1900 is the Receive side.
May be mounted in the MCR-1000A card cage.

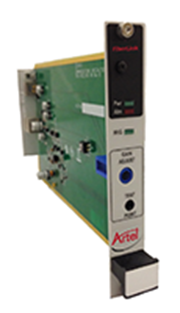

XA/RA-1900 Rack Card

Ordering

#	Model #	Description	Availability
1	RA-1900-1	FiberLink, Model RA-1900-1, Fiberlink IRIG, 850nm, MM, Rx, 1 fiber. ST. Box	Pre-Order Available
2	RA-1900-3	FiberLink, Model RA-1900-3, Fiberlink IRIG, 1310nm, MM, Rx, 1 fiber. ST. Box	Pre-Order Available
3	RA-1900-7-ST	FiberLink, Model RA-1900-7-ST, Fiberlink IRIG, 1310nm, SM, Rx, 1 fiber. ST. Box	Pre-Order Available
4	RA-1900-C1S	FiberLink, Model RA-1900-C1S, Fiberlink IRIG, 850nm, MM, Rx, 1 fiber. ST. Card. Uses 1 slot.	Pre-Order Available
5	RA-1900-C3S	FiberLink, Model RA-1900-C3S, Fiberlink IRIG, 1310nm, MM, Rx, 1 fiber. ST. Card. Uses 1 slot.	Pre-Order Available
6	RA-1900-C7S	FiberLink, Model RA-1900-C7S, Fiberlink IRIG, 1310nm, SM, Rx, 1 fiber. ST. Card. Uses 1 slot.	Pre-Order Available
7	XA-1900-1	FiberLink, Model XA-1900-1, Fiberlink IRIG, 850nm, MM, Tx, 1 fiber. ST. Box.	Pre-Order Available
8	XA-1900-3	FiberLink, Model XA-1900-3, Fiberlink IRIG, 1310nm, MM, Tx, 1 fiber. ST. Box.	Pre-Order Available
9	XA-1900-7-ST	FiberLink, Model XA-1900-7-ST, Fiberlink IRIG, 1310nm, SM, Tx, 1 fiber. ST. Box.	Pre-Order Available
10	XA-1900-C1S	FiberLink, Model XA-1900-C1S, Fiberlink IRIG, 850nm, MM, Tx, 1 fiber. ST. Card, uses 1 slot.	Pre-Order Available
11	XA-1900-C3S	FiberLink, Model XA-1900-C3S, Fiberlink IRIG, 1310nm, MM, Tx, 1 fiber. ST. Card, uses 1 slot.	Pre-Order Available
12	XA-1900-C7S	FiberLink, Model XA-1900-C7S, Fiberlink IRIG, 1310nm, SM, Tx, 1 fiber. ST. Card, uses 1 slot.	Pre-Order Available
Accessories
13	XP-1000A	FiberLink, Model XP-1000A, Fiberlink Power Supply 115 to 16 VAC, heavy duty with connector	Pre-Order Available
14	XP-1001	FiberLink, Model XP-1001, Fiberlink Power Supply 230 to 16 VAC, heavy duty with connector	Pre-Order Available
