Patton InfinityLink ILC055

Overview

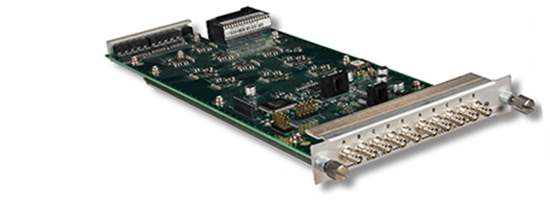

The ILC055 provides flexible video inputs and outputs as well as distribution amplifier capabilities to InfinityLink. Each ILC055 supports five independent inputs as well as five outputs for each slot in a IL6000 chassis. Each port is independent, supporting all standard video formats from 3G-SDI to ATSC.

To ensure video quality and integrity all outputs are re-clocked. Using InfinityLink Manager, each ILC055 input can be selected as a signal source for any module in any slot including its own outputs facilitating a complete video router and distribution amplifier function.

The ILC055 outputs can be used to select signals from other ILC055 inputs or from function modules in others slots to provide additional outputs, monitor outputs and test points.

The five HD-BNC outputs are source from the IL6000 20x20 internal switch providing dozens of re-clocked electrical outputs for DA applications.

InfinityLink IL6000 Chassis System

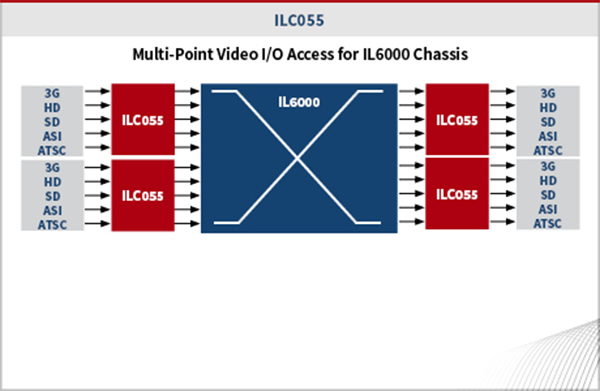

Applications

Features
Multi-port video I/O access to InfinityLink chassis

Five HD-BNC inputs
Five HD-BNC outputs

Formats supported

DVB-ASI
SD-SDI (SMPTE 259M)
SDTI (SMPTE 305M)
HD-SDI (SMPTE 292M)
3G-SDI (SMPTE 424M)
ATSC (SMPTE 310M)

Reclocked outputs eliminate jitter.

Front panel status LEDs.

Ordering

#	Model #	Description	Availability
1	390-007110-00	InfinityLink, Model ILC055, 10 Port HD-BNC Expansion Module	Pre-Order Available

Digital Video over Fiber
Artel InfinityLink ILC055 10 Port HD-BNC Expansion Module

The ILC055 provides flexible video inputs and outputs as well as distribution amplifier capabilities to the IL6000 Chassis with Active Routing. Each port is independent, supporting all standard video formats from 3G-SDI to ATSC. To ensure video quality and integrity all outputs are re-clocked.
