Products  >  Media Transport  >  Video Over Fiber Transport  >  Digital Video over Fiber  >  Artel InfinityLink ILC103A View Printable

Digital Video over Fiber

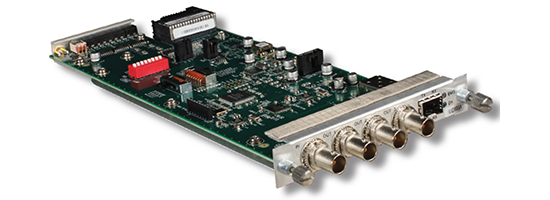

Artel InfinityLink ILC103A 3G/HD/SD-SDI, ASI Transmitter/Receiver


The ILC103 3G/HD/SD-SDI, ASI Transmitter/Receiver is a bi-directional fiber optic transport module for digital video formats ranging from 19.39 Mb/s to 2.97 Gb/s. For deployment in InfinityLink chassis, the ILC103 is also configurable as a 4-channel distribution amplifier.
Overview
The ILC103A is a flexible, cost-effective, bi-directional fiber optic transport module for all digital video formats ranging from 19.39 Mb/s to 2.97 Gb/s.

The module is user configurable to function as a transmitter, receiver, transceiver, repeater, or 4-channel distribution amplifier. The ILC103A and the InfinityLink chassis combine to create the backbone of a video transmission network that can span feet or miles.

Using removable SFPs transceivers available in 1310 nm, 1550 nm, and 18 CWDM wavelengths, make the ILC103A the most flexible, easy-to-deploy, and reliable single channel digital video optical transport module ever developed.


InfinityLink IL6000 Chassis System

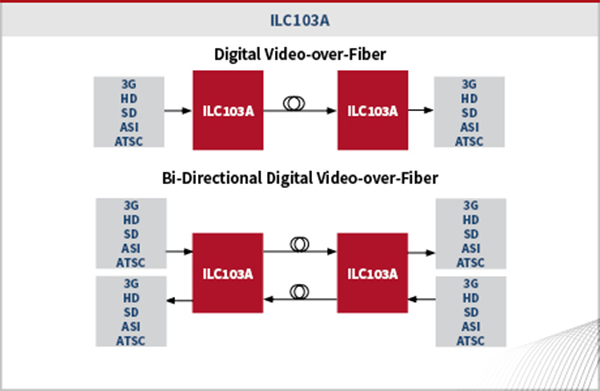

Applications




Features
Single card configurable as:
  • Transmit (electrical to optical)
  • Receive (optical to electrical)
  • Bi-directional (independent transmit and receive)

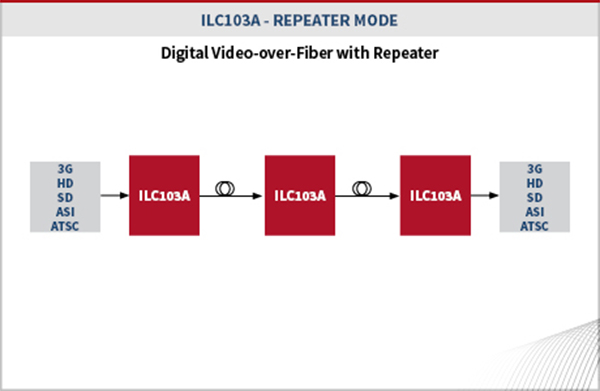

  • Repeat/Regenerate (optical to optical)
  • 4-channel distribution amplifier
Automatic rate selection of all digital video formats.
  • 2.967 Gb/s 3G-SDI (SMPTE 424M)
  • 1.485 Gb/s HD-SDI (SMPTE 292M)
  • 270 Mb/s
    • SD-SDI (SMPTE 259M-C, ITU 656)
    • SDTI (SMPTE 305M)
    • DVB-ASI
  • 19.39 Mb/s ATSC (SMPTE 310M)
Externally accessible SFP transceiver optics.
  • Optical budget to 30 dB
  • WDM (1310 nm, 1550 nm)
  • CWDM ITU G.694.2 (channels 1271-1611)
Inputs/outputs.
  • Optical via SFPs
  • Electrical input (1) and outputs (3) via 75 Ohm BNC
  • Input from and output to other modules in InfinityLink chassis (via backplane)
Multiple monitor options.
  • Front panel monitor selectable between optical
  • input and optical output (HD-BNC)
  • Front and rear panel status LEDs
Remote management via InfinityLink Manager.
  • No external software required
  • HTTP or SNMPv2
  • Monitor, Configure, Upgrade firmware

Ordering
# Model # Description Availability
1 390-006215-00 InfinityLink, Model ILC103A, 3G/HD-SDI/SD-SDI, ASI Transmitter/Receiver Pre-Order Available
