Products > Media Transport > Video Over Fiber Transport > Multi-Channel Digital Video Over Fiber > Artel InfinityLink ILC105 View Printable

Multi-Channel Digital Video Over Fiber

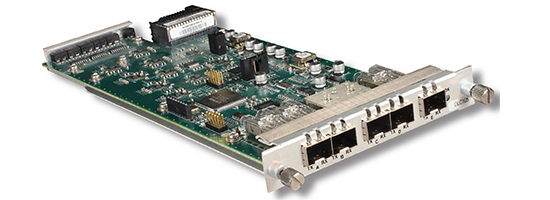

Artel InfinityLink ILC105 10 Port SFP Expansion Module

The ILC105 features five bi-directional SFP cages for use as a media access point to the InfinityLink IL6000 chassis. These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each. The ILC105 provides flexible media access to InfinityLink chassis for routing, transport, and DA applications.

Overview

The ILC105 provides flexible media access to InfinityLink chassis for routing, transport, and DA applications.

The card features five bi-directional SFP cages for use as a media access point to the InfinityLink chassis. These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each.

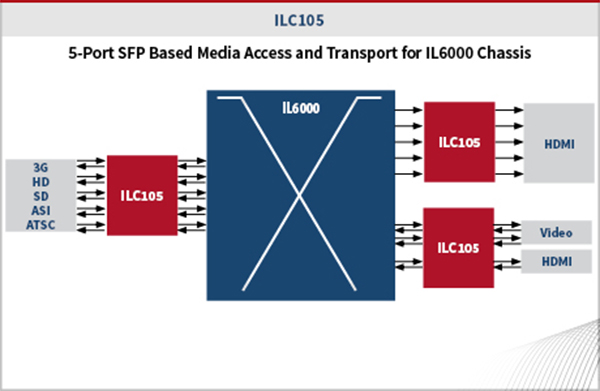

When deployed within the IL6000 InfinityLink media transport chassis, the ILC105 creates a flexible 20x20 optical and electrical video router.

Combining the ILC105 with other transport and format conversion modules in the InfinityLink chassis creates a cost and space effective solution for transport centric processing and routing of broadcast quality video signals.

InfinityLink IL6000 Chassis System

Applications

Features

Flexible SFP access to InfinityLink chassis.

Optical
Electrical video (HD-BNC)
HDMI

Uses industry standard SFP optics.

Optical budget to 30dB
WDM (1310nm, 1550nm)
CWDM ITU G.694.2 (Channels 27-61)

Supports all standard video formats.

2.967 Gb/s 3G-SDI (SMPTE 424M)
1.485 Gb/s HD-SDI (SMPTE 292M)
270 Mb/s
- SD-SDI (SMPTE 259M-C, ITU 656)
- SDTI (SMPTE 305M)
- DVB-ASI
19.39 Mb/s ATSC (SMPTE 310M)

Reclocked video to reduce jitter.

Front and rear panel status LEDs.

Ordering

#	Model #	Description	Availability
1	390-007120-00	InfinityLink, Model ILC105, 5 Port SFP Based Media Access and Transport	Pre-Order Available
