Multi-Channel Digital Video Over Fiber
Artel InfinityLink ILC156 10G 3G/HD/SD-SDI, ASI 6 Ch Mux/Demux

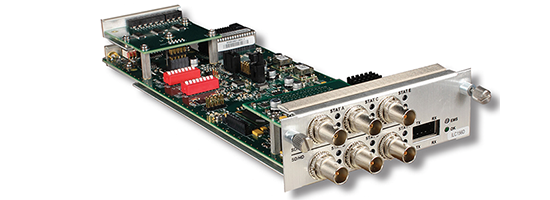

The InfinityLink ILC156 is a six channel TDM multiplexer for transporting uncompressed and compressed video over dark fiber or managed optical networks such as ROADM and OTN. Users can mix and match SD-SDI, ASI, HD-SDI, or 3G-SDI services into a single 10.7 Gb/s optical transport stream.

• Six independent HD-SDI, SD-SDI, or DVB-ASI channels
• Three independent 3G-SDI channels
• Combinations of both
• Single wavelength



• 2.967 Gb/s 3G-SDI (SMPTE 424M)
• 1.483516 Gb/s HD-SDI (SMPTE 292M)
• 270 Mb/s
  • SD-SDI (SMPTE 259M-C, ITU 656)
  • SDTI (SMPTE 305M)
  • DVB-ASI
• Other 270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s services

• Optical budget to 24dB
• WDM (1310 nm, 1550 nm)
• CWDM ITU G.694.2
• WDM ITU G.694.1

• On-board switches
• InfinityLink Manager
• Optical via SFP
• Other modules in InfinityLink chassis (via backplane)

• Switch selectable front panel monitor of individual  channels (HD-BNC)
• Front and rear panel status LEDs
• Loss of video (individual channels)
• Loss of optical input
• Laser (XFP) fail

The ILC156 is a six channel TDM multiplexer for transporting uncompressed and compressed video over dark fiber or managed optical networks such as ROADM and OTN.

Users can mix and match SD-SDI, ASI, HD-SDI, or 3G-SDI services into a single 10.7 Gb/s optical transport stream. The ILC156 is a cost-effective and power-efficient module for transporting up to six HD-SDI or three 3G-SDI digital video services over a single optical wavelength, saving fiber cost and simplifying network design and deployment.

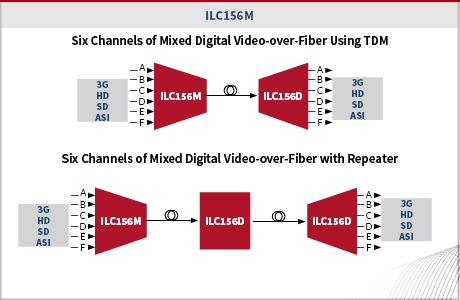

Using time division multiplexing (TDM), each channel is assigned a fixed time-slot, eliminating complex configurations. Six independent, mixed format video signals are aggregated to a single wavelength and two time slots can be combined to carry 3G-SDI.

The ILC156 supports links in excess of 80 km using hot-swappable 10G XFP transceivers in WDM, CWDM, and DWDM wavelengths. Installing a ILC156 repeater between the link source and destination extends the range of a link. Up to 240 uncompressed HD channels are possible over a single fiber.

For additional flexibility, the ILC156 can also be used as a transport aggregator for Artel’s ILC274 four-channel TDM module. With its format flexibility, easy configuration, and competitive price, the ILC156 is an ideal solution for fiber constrained, multi-service video transport applications.
