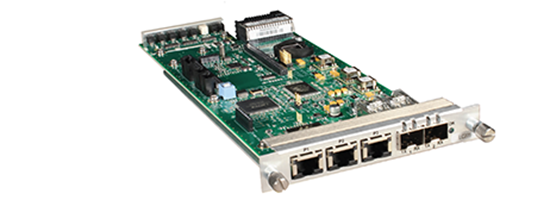

Artel InfinityLink ILC205 9 Port Gigabit Ethernet Switch with VLAN

The InfinityLink ILC205 9 Port Gigabit Ethernet Switch with VLAN is a flexible Ethernet switch supporting up to 9 ports of 10/100/1000 traffic with optical connectivity.

• 10Base-T
• 100Base-TX
• 1000Base-T
• Ethernet standard

• 10/100/1000 auto negotiate
• Auto MDI/MDI-X
• Auto full-duplex and half-duplex
• VLAN capabilities

• 1000BaseT using Electrical SFP
• Optical budgets to 33dB
• WDM (1310nm, 1550nm)
• CWDM ITU G.694.2 (Channels 27-61)
• DWDM ITU G.694.1 (Channels 21-60)

• Major/minor alarms
• Link status
• Activity

• Plug and play design requires no pre- deployment configuration
• Monitor, manage, and review statistics using InfinityLink Manager or SNMPv2

The ILC205 is a flexible Ethernet switch supporting up to 9 ports of 10/100/1000 traffic with optical connectivity.

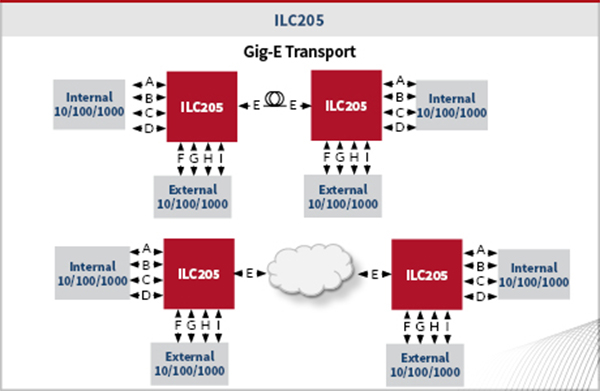

The innovative design of the ILC205 enables users to aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot InfinityLink module. The module is fully nonblocking with a total capacity of 18 Gigabits of traffic and each port independently supports 10/100/1000 Ethernet.

The four internal ports can be linked to other modules in an InfinityLink chassis to provide internal Ethernet connectivity, eliminating the need for external cabling.

Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the ILC205 is a simple Ethernet aggregator providing a reliable, and low cost solution for transporting video centric traffic and chassis management across Ethernet networks.
