Digital Video over Fiber
Artel InfinityLink ILC300 3G/HD/SD-SDI, ASI Transmitter/Receiver with Diversity

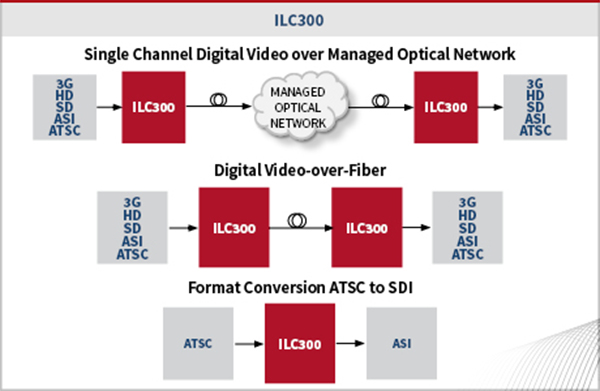

The InfinityLink ILC300 3G/HD/SD-SDI, ASI Transmitter/Receiver with Diversity module is a flexible fiber optic transport module for all digital video formats from 19.39Mb/s (ATSC) to 2.97Gb/s (3G-SDI). The ILC300 is a single-module, user configurable to function as a transmitter, receiver, or repeater, and supports route diversity as well as ATSC to DVB-ASI conversion.

• Transmit (electrical to optical)
• Receive (optical to electrical)
• Repeater (optical to optical)

• 2.967Gb/s 3G-SDI (SMPTE 424M)
• 1.485Gb/s HD-SDI (SMPTE 292M)
• 270Mb/s
  • SD-SDI (SMPTE 259M-C, ITU 656)
  • SDTI (SMPTE 305M)
  • DVB-ASI
• 19.39Mb/s ATSC (SMPTE 310M)

• Operates with one or two SFPs
• Separate fault alarms for each SFP
• Receive via primary or secondary SFP
• Automatic switchover upon loss of signal
• User selectable reversion to primary SFP

• Optical budget to 33dB
• WDM (1310nm, 1550nm)
• CWDM ITU G.694.2 (Channels 27-61)
• DWDM ITU G.694.1 (Channels 21-60)

• Optical via SFPs
• Electrical via 75 Ohm BNC
• Input from and output to other modules in InfinityLink chassis

• Front panel monitoring of transported signal
• Front and rear panel status LEDs

• No external software required
• HTTP or SNMP v2
• Monitor, Configure, Upgrade firmware

The ILC300 is a flexible fiber optic transport module for all digital video formats from 19.39Mb/s (ATSC) to 2.97Gb/s (3G-SDI).  The card is a single-module, user configurable to function as a transmitter, receiver, or repeater, and supports route diversity as well as ATSC to DVB-ASI conversion.

The ILC300 incorporates numerous features in a flexible, easy-to-deploy and configure module with unparalleled quality and reliability. The module optically transports all digital formats from 19.39Mb/s ATSC to 3G-SDI (SMPTE 424M).

To minimize inventory costs and simplify deployment, it can be configured as a receiver, transmitter, or repeater. For route diversity and optical flexibility, the ILC300 also features dual optical SFP modules available in WDM, CWDM, or DWDM optical wavelengths.

To transport across metro optical amplified networks, dithering of all SDI formats has been included, as well as conversion of ATSC from SMPTE 310M to DVB-ASI. Cost-effective, flexible, and reliable, the ILC300 continues Artel’s tradition of making the world’s most reliable video over optical transport hardware.
