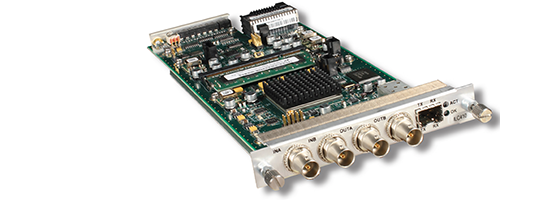

Patton InfinityLink ILC410

Overview

The ILC410 expands the InfinityLink video platform capabilities to include SMPTE standards-based video-over-IP transport for both DVB-ASI and SD-SDI formats.

Based on SMPTE 2022 standards for encapsulation and Forward Error Correction (FEC), the ILC410 enables SDI and ASI to be reliably transported across managed IP networks. The module is capable of transporting four channels (two in each direction) of DVB-ASI or SD-SDI over a gigabit Ethernet IP network connection.

SDI video is transported in its entirety, including all ancillary data. ASI video streams from less than 20 Mb/s to over 200 Mb/s are supported and can be rate limited.

The ILC410 FEC enables the recovery of lost, errored, or delayed IP packets and can withstand burst outages in excess of 3 ms.

Access to the IP network is through rear accessible, field replaceable SFPs either optically in WDM, CWDM , and DWDM wavelengths or electrically via an RJ-45 SFP.

InfinityLink IL6000 Chassis System

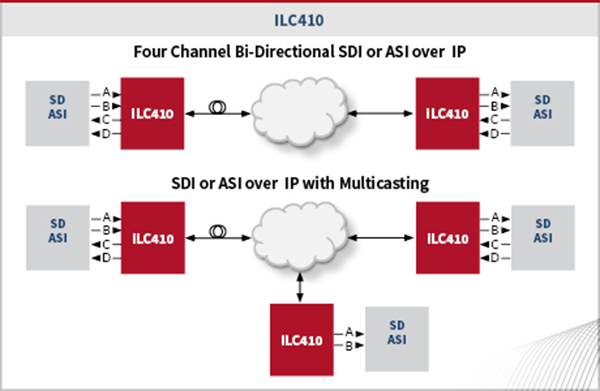

Applications

Features

Single-module transceiver card for SD-SDI and DVB-ASI over Gig-E.

Fully transparent carriage of SDI and SDTI
Includes all SDI and SDTI ancillary information
DVB-ASI stream rates from <20 Mb/s to >200 Mb/s
Supports 188-byte and 204-byte DVB-ASI packets
Provisionable limits on bandwidth for DVB-ASI

Four independent channels: two transmit, two receive.

Unicast or multicast IP video streams.

Standards-based encapsulation and Forward Error Correction.

DVB-ASI
- SMPTE 2022-2 Encapsulation
- SMPTE 2022-1 FEC
SDI
- SMPTE 2022-6 Encapsulation
- SMPTE 2022-5 FEC
FEC recovers lost, errored, or delayed packets
Withstands burst outages in excess of 3 ms
Row and column FEC supported

Externally accessible SFP transceivers.

Optical budget to 33 dB
WDM (1310 nm, 1550 nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)
Electrical to RJ-45 Ethernet

Front panel monitoring of active video signals.

Remote management via InfinityLink Manager.

No external software required
HTTP or SNMPv2
Monitor
Configure
Upgrade firmware

Ordering

#	Model #	Description	Availability
1	390-006410-00	InfinityLink, Model ILC410, SD-SDI or ASI 2 Channel IP Gateway	Pre-Order Available
