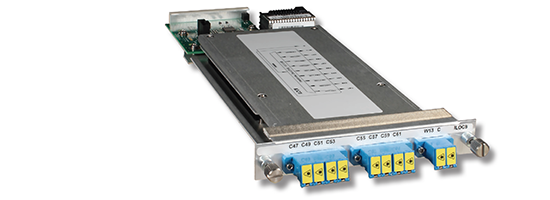

Patton InfinityLink ILOCx

Overview

Artel’s CWDM optical multiplexers create a comprehensive set of optical multiplexing solutions for the InfinityLink media transport platform. These modules, in conjunction with InfinityLink modules or third-party equipment, allow the creation of flexible, space and fiber-efficient optical networks.

Artel designed its optical multiplexing products to address the issue of space and fiber constraints. For space efficiency, each module takes only one bay in a InfinityLink chassis. By using ITU standard filters and optics, multi-vendor, and fiber-efficient video and Ethernet networks can be created.

Completely passive and designed with the latest optical filters, Artel’s CWDM modules are extremely reliable, cost-effective, and feature low insertion losses.

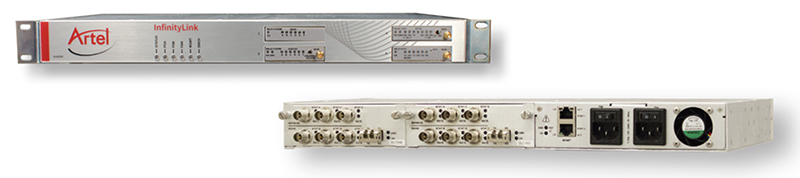

InfinityLink IL6000 Chassis System

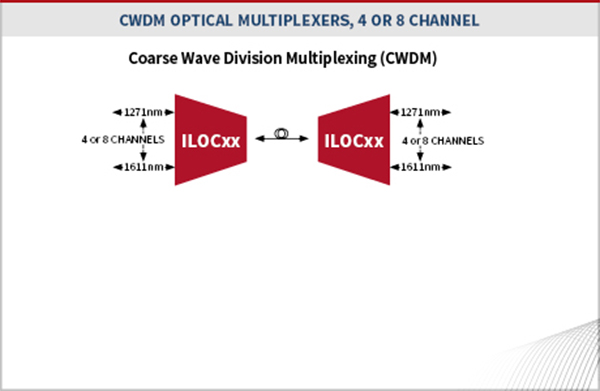

Applications

Features
Optical multiplexer features

Low optical losses
Passive design for reliability
Bi-directional
Industry standard LC/PC connectors
Most modules include expansion port (passes all other wavelengths)
Compatible with InfinityLink and DigiLink chassis
For single-mode fiber

CWDM features

Industry standard ITU G.694.2 wavelengths
Optically multiplex up to 8channels over a single fiber
4 or 8 channel options
Multiple 4 channel options

Ordering

#	Model #	Description	Availability
1	390-006752-00	InfinityLink, Model ILOC4L, 4 Channel CWDM Optical Mux/Demux, Channels 1471, 1491, 1511, 1531	Pre-Order Available
2	390-006752-01	InfinityLink, Model ILOC4M, 4 Channel CWDM Optical Mux/Demux, Channels 1511, 1531, 1551, 1571	Pre-Order Available
3	390-006752-02	InfinityLink, Model ILOC4H, 4 Channel CWDM Optical Mux/Demux, Channels 1551, 1571, 1591, 1611	Pre-Order Available
4	390-006752-03	InfinityLink, Model ILOC4O, 4 Channel CWDM Optical Mux/Demux, Channels 1471, 1491, 1591, 1611	Pre-Order Available
5	390-006752-04	InfinityLink, Model ILOC8, 8 Channel CWDM Optical Mux/De-Mux, Channels 1471 - 1611	Pre-Order Available

Wave Division Multiplexer Cards
Artel InfinityLink ILOCx CWDM Optical Multiplexers, 4 or 8 Channel

Artel's CWDM optical multiplexers create a comprehensive set of optical multiplexing solutions for the InfinityLink media transport platform. These modules, in conjunction with InfinityLink modules or third party equipment, allow the creation of flexible, space and fiber-efficient optical networks.
