Artel InfinityLink Manager SNMP, HTTP Element Management System

InfinityLink Manager is an HTTP and SNMPv2 based Element Management System (EMS) for monitoring, configuration, and management of InfinityLink chassis, function modules, optics, and power supplies. XView is an SNMPv2 based tool for monitoring and management of DigiLink and InfinityLink systems across network.

SNMPv2 and web monitoring and management

• InfinityLink chassis
• Function modules
• Power supplies

Monitoring

• Auto detect cards and configurations
• Major and minor alarms and events
• Detailed card status
• Alarm status
• Alarm details
• Receive light levels
• Temperature
• Video status and rates

Provisioning

• Configure function (transmitter/receiver/repeater)
• Change input source (BNC or other module in chassis)
• Configure IP settings
• Enable or disable features and channels

Non-volatile time stamped event log

• Major/minor alarms
• Startup sequence
• New hardware installation
• Configuration modifications
• Video presence
• Update of firmware
• Revision status

Maintenance

• Download/upgrade firmware on function modules, power supplies and backplane
• Download/upgrade management software

InfinityLink Manager is an HTTP and SNMPv2 based Element Management System (EMS) for monitoring, configuration, and management of InfinityLink chassis, function modules, optics, and power supplies.

Embedded in the InfinityLink chassis and all its elements, it requires no external software or add-ins to monitor and configure all active elements of the platform.

InfinityLink Manager (IL Manager) is compatible with all HTTP compatible systems, is capable of monitoring and managing multiple chassis through a single Ethernet connection and features a time-stamped log of key information about chassis activity. With integrated SNMPv2, IL Manager can easily integrate into third party NMS platforms.

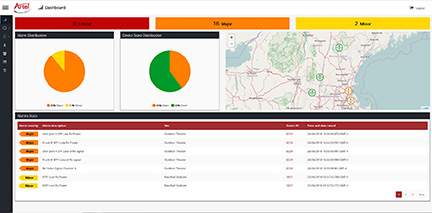

xView presents a network level view of the DigiLink and InfinityLink systems deployed in a geographical area, provides alarm status, and specifics on active alarms using SNMP messages generated by the devices it is monitoring.

DigiLink Manager (DL Manager) and InfinityLink Manager (IL Manager) sessions can be launched from within xView to provide further fault, performance, upgrade, and configuration management. xView is accessed via an authentication and authorization session. xView can be deployed in a tiered architecture, providing aggregation of Artel network elements for scaling purposes to meet larger network requirements or to accommodate a tiered operations model where there are national and regional views and interests.

Providing a network level view of the DigiLink and InfinityLink systems deployed in your network, xView provides alarm status, and specifics on active alarms using SNMP messages generated by the devices it is monitoring.

Ideal for networks of all sizes, it supports tiered architectures providing an aggregation of DigiLink and InfinityLink network elements for larger networks requiring regional and national monitoring.

Monitors DigiLink and InfinityLink chassis, function modules, optics, and power supplies via SNMPv2

Launch DLManager and ILManager sessions from within xView for further diagnostics and configuration.
