Precision Timing Protocol (PTP) Switches

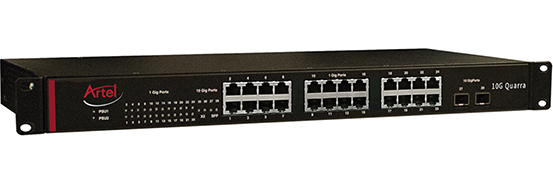

Artel Quarra PTP - 10G Precision Timing Protocol (PTP) 10 Gbps Ethernet Switch

Artel's Quarra PTP 10Gbps Ethernet switch is a carrier grade Ethernet switch with one of the industry's most accurate IEEE 1588v2 timing. The Quarra IP PTP switches are Ideal for pro AV, audio, video, broadcast, defense and security, finance, utilities, telecom, and enterprise IP.

• Industry’s most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing.
• Synchronous (L1) Ethernet, Master and Slave. Precision clock timing using DSPLL® technology.
• 1pps reference. Network wide synchronization using IEEE1588 or SyncE.
• SMPTE Standards-based Timing
  • ST 2110-10 System Timing and Definition
  • ST 2059-2 SMPTE Profile for Use of IEEE-1588 Precision Time Protocol in Professional Broadcast Applications
• Ravenna AES67 approved.
• IEEE802.1 AVB.
• Full management from Web GUI or command line interface. No training required-units can be quickly and easily configured

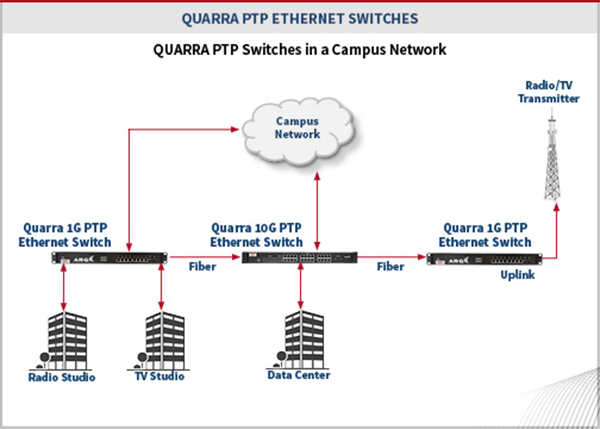

Artel's Quarra range of IP PTP switches is designed for Carrier Class applications where accurate timing and control is required. These switches are aimed at the professional markets of Audio/Video Broadcast, Defense & Security, Finance, Utilities, Telecom, and Enterprise IT.

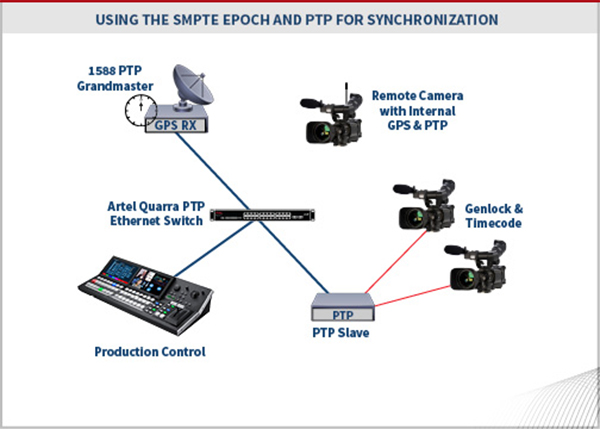

• Live video/audio broadcast/production over IP utilizing IEEE1588 timing, QoS and Multicast filtering.
• Broadcast DTT/DTV IP distribution, utilizing IEEE1588 and SyncE timing to replace or backup GPS timing at base stations.
• Telecom networks, providing high level of network timing.
• Financial/trading networks, utilizing our IEEE1588 precise nanosecond time synchronization.
